Here is a comprehensive specification and design proposal for a Customized High Volume, High Efficiency Boiler Induced Draft Fan (ID Fan) with a Heat Resistant Design.
This fan is designed to handle the harsh conditions of a large-scale industrial boiler (e.g., coal, biomass, or heavy oil), where the flue gas contains high temperatures, particulate matter, and corrosive elements.
Customer Specifications & Operating Parameters
To customize, we need these baseline inputs (Example values provided):
- Application: Utility Boiler / Industrial Steam Generator
- Flue Gas Temperature @ Inlet: 180°C (Max peak: 250°C)
- Gas Type: Combusted flue gas (contains SOx, NOx, Fly Ash)
- Required Flow Rate: 500,000 m³/hr (High Volume)
- Static Pressure Rise: 6.5 kPa (kiloPascals)
- Boiler Load: Base load with 20% turndown (Variable speed required)
Key Design Features for High Efficiency & Heat Resistance
A. Aerodynamic Design (High Efficiency)

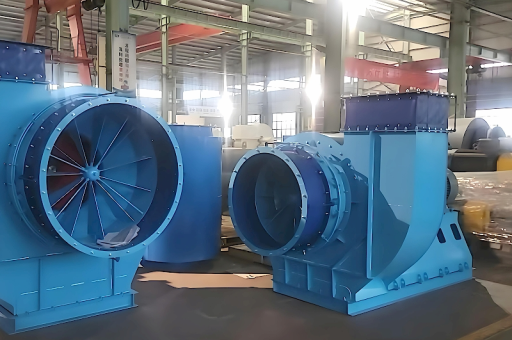

- Impeller Type: Backward-Curved Airfoil Blades (BCA)
- Why: Highest static efficiency (up to 88-90%) compared to radial or forward curved blades. Reduces energy consumption significantly.
- Housing: Scroll (Volute) type with optimized inlet cone for laminar flow.
- Drive: Direct Drive via Variable Frequency Drive (VFD).
- Why: Eliminates belt losses; precise control of speed to match boiler load, saving 30-50% energy compared to damper control.
B. Heat Resistant Design (Material & Construction)
- Impeller Material: High-Temperature Alloy Steel (e.g., 16Mo3 or ASTM A387 Gr.11)
Resistant to creep at continuous 200°C+ operation.
- Shaft: Alloy Steel (42CrMo4) with in-shaft cooling (hollow shaft design to allow air circulation).
- Bearing Housing: Integral cooling fins or optional forced water jacket cooling to prevent heat migration to bearings.
- Expansion Joint: High-temperature Inconel mesh expansion joint at the fan inlet/outlet to absorb thermal expansion without leaking.
- Wear Protection: Hard-faced (Stellite or Ceramic weld overlay) on the leading edge of blades to resist fly ash erosion.
Mechanical Construction Details
| Component | Specification | Customization Benefit |
|---|---|---|
| Casing | 6mm - 10mm thick carbon steel (SA516 Gr.70) with stiffeners | Withstands pressure; reduces noise and vibration. |
| Impeller | Backward curved, airfoil hollow blades, welded & stress-relieved | Lightweight but rigid; high tip speed capability. |
| Shaft Seal | Labyrinth seal with purge air port | Prevents hot gas leakage to bearings; extends life. |
| Bearings | Self-aligning spherical roller bearings (SKF/FAG) with high-temp grease | Accommodates thermal growth; relubricatable in operation. |
| Insulation | 100mm mineral wool jacket with aluminum cladding | Reduces heat loss to boiler house; protects personnel. |
| Base Frame | Heavy duty I-beam with vibration isolators | Absorbs dynamic loads; no concrete anchor issues. |
Performance Guarantees (Example)
- Flow Rate: 500,000 m³/h ± 2%
- Total Static Pressure: 6,500 Pa @ operating point
- Static Efficiency: ≥ 86% at design duty point
- Noise Level: ≤ 85 dBA @ 1m (with silencer)
- Max Continuous Temp: 220°C
- Max Allowable Temp (Emergency): 280°C (for 30 minutes)
Customization Options (Add-Ons)
| Option | Description | Reason |
|---|---|---|
| Variable Inlet Vanes (VIV) | Pre-rotation vanes at the inlet cone | Allows mechanical volume control if VFD is not preferred. |
| Water Injection System | Spray water mist at the fan inlet | Reduces flue gas temp during extreme overload to protect fan. |
| Bearing Temperature Monitoring | RTD (PT100) linked to DCS (Distributed Control System) | Alerts before bearing failure; allows predictive maintenance. |
| Clamshell Casing | Horizontally split casing | Allows removal of rotor without disturbing ductwork; reduces downtime. |
Why This Design is Superior for Your Boiler
- Energy Savings: The BCA impeller + VFD combination can save up to 25% more power than a standard radial fan.
- Longevity: The use of 16Mo3 steel avoids blade failure due to high-temperature stress, which is common in standard carbon steel fans.
- Thermal Stability: The hollow shaft + cooling fins ensure the bearings never exceed 80°C, even if the gas is at 250°C.
- Maintainability: The clamshell design allows blade inspection without disconnecting the ducts.
Recommended Manufacturer Considerations
When sourcing, ensure the vendor is:
- ISO 5801 / AMCA 210 certified (for performance testing).
- Capable of finite element analysis (FEA) and modal analysis to avoid resonance during operation.
- Able to supply API 610 vibration standards for shaft deflection.
