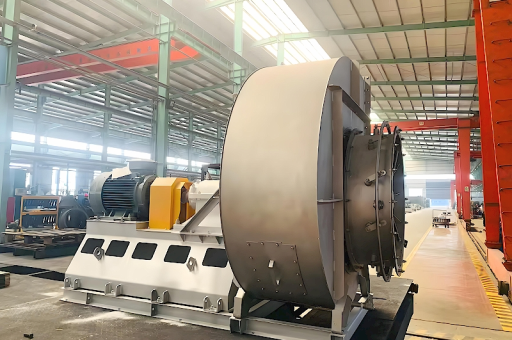

This is a highly specific and important topic. Stainless steel fans are critical for chemical plants due to the corrosive, explosive, and high-temperature environments. Here is a comprehensive breakdown of what you need to know when selecting, specifying, and maintaining these fans.
Why Stainless Steel? The Core Requirement
In chemical plants, standard carbon steel fans will corrode rapidly, leading to:
- Catastrophic failure: Imbalance, blade failure, shaft breakage.
- Contamination: Rust particles contaminating the product or process.
- Fire/Explosion risk: Sparks from corroded, rubbing components.
- Downtime and safety hazards.
Stainless steel offers:
- Corrosion Resistance: Chromium forms a passive oxide layer.
- Strength at Temperature: Maintains integrity in high-heat exhaust streams.
- Hygiene (sometimes): Easier to clean if needed (less common in chemical plants than food).
- Non-sparking properties (in certain alloys): Crucial for explosive atmospheres.
Critical Grade Selection (The Most Important Decision)
You cannot just say "stainless steel." The grade is everything. The wrong grade will fail just as fast as carbon steel.
| Grade | Key Properties | Common Chemical Plant Applications | Why NOT to use it |
|---|---|---|---|
| 304/304L | Good general corrosion resistance, food-grade, cost-effective. | Handling water, mild acids (e.g., citric, phosphoric), organic solvents (acetone, MEK), some caustic solutions, general ventilation. | Fails rapidly in chlorides (bleach, HCl, saltwater, brine). Will get pitting and stress corrosion cracking. |
| 316/316L | Industry Standard. Added Molybdenum (2-3%). | Chloride environments (hypochlorite, sea breeze, HCl fumes), pulp & paper chemicals, brine, cooling towers, wastewater treatment. | Will still corrode in hot, highly concentrated chlorides (e.g., >1000 ppm Cl at 50°C+). Cannot handle concentrated sulfuric acid. |
| 317L | Higher Molybdenum (3-4%). | More aggressive chloride environments than 316L. High-temperature organic acids (acetic, formic). | Expensive. Overkill for many applications. |
| 904L (UNS N08904) | Super austenitic. Very high Ni, Cr, Mo. | Very aggressive chlorides, hot sulfuric acid (up to 70%), phosphoric acid, bleaching chemicals. Used in scrubber systems, wet chlorine gas. | Very expensive. Difficult to fabricate. |
| Duplex (2205/2507) | High strength, excellent chloride stress corrosion cracking resistance. | Chloride-rich environments with high mechanical stress (e.g., fan shafts, impellers in offshore or brine plants). | Very hard to weld and machine. Brittle at high temperatures (>300°C). |
| Hastelloy (C-276) | Nickel-based superalloy. | Extreme conditions: Wet chlorine gas, hot HCl, mixed acid streams, catalytic processes. | Extremely expensive. Used only when nothing else works. |
The Golden Rule: Always test your specific chemical environment against the chosen grade. A 0.1% change in concentration or a 10°C temperature rise can change the corrosion rate by an order of magnitude.
Key Fan Components & Material Selection
You must specify the material for each component, not just the housing.
| Component | Typical Material | Notes |
|---|---|---|
| Impeller/Wheel | 316L (standard), Duplex (high stress), Hastelloy (extreme). | This is the most critical rotating part. Must be dynamically balanced. |
| Housing/Scroll | 316L or 304L (if mild). Often lined with FRP or Rubber for extreme corrosion. | Can be thicker gauge than carbon steel for added life. |
| Shaft | 316L or Duplex (for strength). Often oversized to reduce stress and vibration. Must be sealed properly. | |
| Shaft Seal | Teflon (PTFE) lip seal, Carbon/ceramic mechanical seal, Labyrinth seal. | Material of seal is critical. Standard rubber (Buna/NBR) will dissolve in many solvents. |
| Bearings | Sealed for life or Re-greasable with high-temp grease (e.g., PTFE-based). | Must be isolated from corrosive fumes. Often placed in an external bearing housing. |
| Fasteners (Bolts) | 316L, Monel, or Hastelloy. | Carbon steel bolts will rust and fail first, causing the entire assembly to fall apart. |
| Drive System (Belt/Pulley) | Pulley: Ductile iron or cast steel. Belt: Static-dissipative (fulfilling ATEX/NFPA). | Belt drives allow motor to be outside the airstream (good for hot/corrosive gas). |
| Motor | TEFC (Totally Enclosed Fan Cooled) . Must be rated for the area classification (e.g., Class I Div 1 or 2). | Must be outside the airstream, or be a chemical duty motor with sealed windings & corrosion-resistant paint. |
Operational Considerations for Chemical Plants
-
Explosion-Proof (ATEX/IECEx/NFPA 70):
- Most chemical plant fans are in Class I, Division 1 or 2 (flammable gases/vapors) or Class II (combustible dusts).
- The fan itself must be certified:
- Non-sparking impeller: Aluminum or Monel (in addition to SS).
- Spark-tight construction: No sharp edges, metal-to-metal contact.
- Temperature code: Maximum surface temperature must be below the auto-ignition temperature of the gas.
- An explosion-proof fan is not "unbreakable." It is designed to contain an internal explosion without causing a fire outside.
-
High Temperature:
- Standard fans: Up to 120°C (250°F).
- High-temp SS fans: Use special seals, high-temp bearings, and shaft cooling fins. Can handle up to 650°C (1200°F) for exhaust from dryers, kilns, or incinerators.
- Thermal expansion: The fan and ductwork must accommodate expansion (expansion joints).
-
Condensation & Liquid Carry-over:
- Many chemical processes produce wet, corrosive gases (e.g., from scrubbers, digesters, evaporators).
- The fan must be designed with drain holes at the lowest point of the housing.
- Inlet vanes can help prevent liquid pooling on blades.
- Avoid stagnant zones where acid can collect and pit the metal.
-
Abrasives:
- If the gas contains solid particles (catalyst dust, corrosion products), the SS fan must have thicker blades or a wear plate (often replaceable) on the leading edge.
Sourcing & Specification Checklist
When ordering a stainless steel fan for a chemical plant, provide the vendor with all of this:
- Gas/Vapor Composition: Exact chemical names, concentrations (ppm or %), and temperatures (process & ambient).
- Moisture Content: Is the gas saturated? Is there condensation?
- Solids Content: Type, size, concentration.
- Explosion Class: Class/Division/Group (e.g., Class I, Div 1, Group D).
- Critical Grade: Specify the stainless steel alloy (e.g., "316L per ASTM A240"). Do not accept "304" as a substitute.
- Weld Procedure: Weld filler metal must match the parent metal or be higher (e.g., 316L w/ 316L filler). Post-weld passivation is required.
- Balance Grade: Standard G6.3 is common; G2.5 for high-speed or critical applications.
- Testing: Certify no leaks, vibration levels, and material certificates (Mill Test Reports).
Summary of Common Chemical Plant Fan Types
| Application | Typical Fan Type | Preferred Material | Key Concern |
|---|---|---|---|
| Process Ventilation (General) | Centrifugal (Forward/Backward Curved) | 304L or 316L | General corrosion |
| Scrubber Exhaust (Wet Chlorine) | Centrifugal (Radial/Efficiency) | 316L or Duplex/FRP Lined | Chloride SCC |
| Fume Hood Exhaust | Centrifugal (FTE, High Static) | 316L | Acid fumes |
| Dryer Exhaust (Hot) | Centrifugal (Paddle Wheel) | 310S (High-temp SS) | Thermal stress |
| Dust Collection (Abrasive) | Centrifugal (Radial) | 304L (with wear plates) | Erosion |
| Combustion Air | Axial (Vaneaxial) or Centrifugal | 304L or 316L | General air + maybe backflow |
Final Warning
Do not assume a standard "stainless steel" fan from a general supplier will work. A fan designed for a food processing plant (304 SS, low temp, mild chemicals) will typically fail within weeks in a chemical plant handling chlorine or hot sulfuric acid.
You must specify: The specific grade, the weld procedure, the seal type, the bearing protection, and the explosion-proof certification.
If you are unsure, hire a corrosion engineer or a specialist fan manufacturer (e.g., New York Blower, Howden, Cincinnati Fan, Aerovent, EDF) that has experience in your specific chemical process. A fan failure in a chemical plant can be catastrophic, both in terms of cost and safety.
