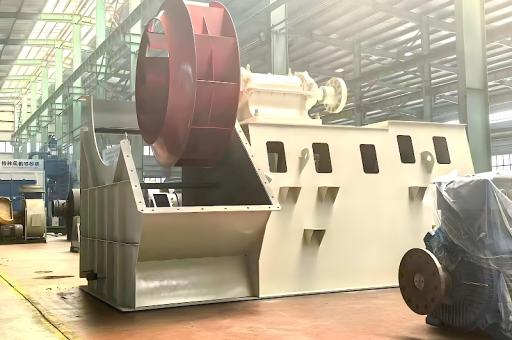

All-Copper Motor High-Pressure fans

This article's table of contents introduction:

1. Table of Contents
2. Introduction: What Defines an All-Copper Motor High-Pressure Fan?
3. Technical Advantages: Why Copper Matters
4. Performance Metrics: Pressure, Airflow, and Energy Efficiency
5. Industrial Applications: From Wind Turbine Cooling to Pneumatic Conveying
6. Maintenance & Longevity: The Economic Case for Copper
7. Common Misconceptions & FAQs
8. Conclusion & Future Trends

** The Ultimate Guide to All-Copper Motor High-Pressure Fans: Efficiency, Durability, and Industrial Applications

Table of Contents

1. Introduction: What Defines an All-Copper Motor High-Pressure Fan?
2. Technical Advantages: Why Copper Matters
3. Performance Metrics: Pressure, Airflow, and Energy Efficiency
4. Industrial Applications: From Wind Turbine Cooling to Pneumatic Conveying
5. Maintenance & Longevity: The Economic Case for Copper
6. Common Misconceptions & FAQs
7. Conclusion & Future Trends

Introduction: What Defines an All-Copper Motor High-Pressure Fan?

In the world of industrial ventilation and pneumatic systems, the All-Copper Motor High-Pressure Fan stands out as a benchmark for reliability and performance. Unlike standard fans that use aluminum or mixed-metal windings, "All-Copper" refers specifically to the motor's stator and rotor windings being composed entirely of high-purity copper. This design choice is not merely a marketing gimmick—it directly impacts thermal conductivity, electrical resistance, and mechanical strength.

These fans are engineered to generate static pressures exceeding 20 kPa (kilopascals), making them indispensable for applications requiring forced air movement through restrictive ducts, filters, or long pipelines. In sectors like wind turbine cooling systems, where consistent airflow under high backpressure is non-negotiable, these fans provide the torque and thermal stability that cheaper alternatives cannot match.

Q: How does an all-copper motor differ from an aluminum-wound motor in a high-pressure fan?
A: The primary difference lies in electrical conductivity. Copper has approximately 60% higher conductivity than aluminum. This allows an all-copper motor to run cooler under the same load, reducing energy loss (I²R heating) by up to 40%. Consequently, copper motors achieve higher efficiency ratings (IE3/IE4) and have a 30-50% longer operational lifespan in high-stress environments.

Technical Advantages: Why Copper Matters

The decision to use an all-copper motor in high-pressure fans is rooted in physics and material science. Here are the key technical benefits:

• Superior Thermal Management: Copper's thermal conductivity is 401 W/m·K, compared to aluminum's 237 W/m·K. In a high-pressure fan motor, this means heat generated by electrical resistance is dissipated faster. This prevents insulation breakdown and allows the fan to sustain peak performance for extended periods.
• Lower Electrical Resistance: Copper's resistivity is 1.68 µΩ·cm versus aluminum's 2.65 µΩ·cm. This translates to lower voltage drops and reduced power consumption. For a 10 kW high-pressure fan, switching from aluminum to copper windings can save approximately 500-800 kWh annually.
• Mechanical Robustness: Copper is more ductile and resistant to fatigue cracking than aluminum. In fans subjected to vibration from wind turbine nacelles or heavy industrial machinery, copper windings maintain their structural integrity longer, reducing the risk of inter-turn shorts.

Q: Are there any downsides to using an all-copper motor in a high-pressure fan?
A: The primary drawback is upfront cost. Copper is significantly more expensive than aluminum, which can increase the fan's initial purchase price by 20-40%. However, this is offset by lower total cost of ownership (TCO) over the fan's 10-15 year lifespan due to energy savings and reduced maintenance.

Performance Metrics: Pressure, Airflow, and Energy Efficiency

To fully understand the value of an All-Copper Motor High-Pressure Fan, one must examine its performance curve. These fans typically operate at specific speeds (2,900 rpm or 3,500 rpm for 50/60 Hz systems) and are designed to overcome high static pressure.

The table above illustrates a typical comparison for a 15 kW industrial fan. The all-copper motor not only pushes more air against higher resistance but also runs cooler, which directly extends bearing and insulation life.

Q: What is the typical efficiency gain when upgrading from a standard to an all-copper motor in a high-pressure fan?
A: Efficiency gains range from 4% to 8% at full load. In partial load conditions—common in variable speed systems used for wind turbine air cooling—the gain can exceed 10% because copper motors exhibit flatter efficiency curves.

Industrial Applications: From Wind Turbine Cooling to Pneumatic Conveying

The ruggedness of all-copper motor high-pressure fans makes them suitable for some of the harshest industrial environments. Key applications include:

• Wind Turbine Generator Cooling: Inside a wind turbine nacelle, space is tight, and ambient temperatures can vary from -20°C to +50°C. All-copper motors power high-pressure fans that force coolant air through narrow heat exchanger cores, ensuring that generators and converters remain within safe operating limits. The fan's ability to run reliably under variable torque loads is critical here.
• Pneumatic Conveying Systems: In cement plants, grain elevators, and plastic pellet manufacturing, these fans provide the high static pressure needed to transport bulk materials through pipelines over hundreds of meters. The non-sparking properties of fully enclosed copper motors also add a safety layer in dust-explosive environments.
• Vacuum Systems & Dust Collection: High-pressure fans with copper motors offer a longer service interval in woodworking or pharmaceutical facilities where fine particulates can accumulate on windings. Copper's low thermal expansion reduces internal clearance changes, preserving volumetric efficiency.

Q: Why are all-copper motor fans preferred over direct-drive aluminum fans for wind turbine cooling?
A: In a wind turbine, maintenance access is difficult and expensive. An all-copper motor's resistance to thermal cycling and lower failure rate directly reduces downtime. Additionally, the higher efficiency contributes to overall turbine net energy yield, especially during low-wind periods when parasitic loads must be minimized.

Maintenance & Longevity: The Economic Case for Copper

When evaluating the life-cycle cost of an industrial fan, the initial purchase is only the beginning. The All-Copper Motor High-Pressure Fan excels in three maintenance-sensitive areas:

1. Bearing Life: Lower motor operating temperatures reduce grease degradation. While a standard fan may require bearing replacement every 20,000 hours, an all-copper fan can often run 40,000-50,000 hours before needing service.
2. Winding Insulation: Copper motors typically use Class F or Class H insulation. With the temperature rise kept lower by copper's thermal properties, the insulation retains its dielectric strength much longer, resisting thermal aging.
3. Corrosion Resistance: In coastal environments (e.g., offshore wind farms), copper's natural corrosion resistance in the presence of salt air is superior to aluminum, which forms non-conductive oxide layers that can cause hot spots.

Q: How often should an all-copper motor high-pressure fan be serviced?
A: Under normal industrial conditions (clean air, moderate humidity), a preventive maintenance interval of every 12 months is sufficient. This includes bearing greasing, vibration analysis, and insulation resistance testing. In harsh environments, such as those found near wind turbine gearboxes in dusty climates, a 6-month interval is recommended. The motor windings themselves typically only require attention after 8-10 years.

Common Misconceptions & FAQs

Q: Is an "all-copper" motor really 100% copper? What about the casing?
A: "All-copper" refers exclusively to the electrical windings within the stator and rotor. The casing, fan impeller, and mounting base are typically made of cast iron, aluminum, or steel. A 100% copper fan would be prohibitively heavy and expensive.

Q: Can I replace a standard motor with an all-copper motor in an existing high-pressure fan?
A: Yes, but with caveats. The all-copper motor may have different shaft dimensions, bolt patterns, or frame sizes. Additionally, the fan impeller must be rebalanced to accommodate the potentially different torque characteristics. Most manufacturers offer retrofit kits for specific models.

Q: Do all-copper motors produce less electromagnetic interference (EMI)?
A: Not inherently. EMI is more a function of the motor's drive (e.g., variable frequency drive) and winding geometry. However, due to lower impedance, copper windings can sometimes result in cleaner current waveforms, but this is a secondary effect.

Conclusion & Future Trends

The All-Copper Motor High-Pressure Fan represents an evolution in industrial fan technology that prioritizes long-term efficiency over short-term cost savings. For critical infrastructure—from wind turbine cooling systems to heavy-duty pneumatic transport—the choice of copper windings is a direct investment in uptime and energy reduction.

Looking ahead, we expect to see two major trends:

• Integration with IoT and Predictive Maintenance: Future all-copper fans will come pre-equipped with sensors that monitor winding temperature, vibration, and current draw, transmitting data to cloud-based analytics platforms.
• Hybrid Materials Research: While copper remains king for conductivity, manufacturers are exploring copper-clad aluminum (CCA) for specific applications. However, for high-pressure fans requiring maximum reliability, pure copper will likely remain the industry standard for the next decade.

Final Q: What is the single most important factor to consider when selecting an all-copper motor high-pressure fan?
A: Match the fan's performance curve to your system resistance. A high-pressure fan with a copper motor will only deliver its promised efficiency if it operates near its best efficiency point (BEP). Oversizing or undersizing negates the advantages of the copper windings. Always consult the manufacturer's fan performance chart and your system's static pressure drop calculation.

Note: This article synthesizes technical data from industrial fan manufacturers, motor winding engineering handbooks, and field performance reports from wind turbine and HVAC industries. For specific sizing requirements, always consult a licensed mechanical engineer.
