This is a specific piece of industrial equipment. Here is a comprehensive breakdown of what a 3kW variable frequency centrifugal fan is, its key specifications, typical applications, and important considerations.
What is it?

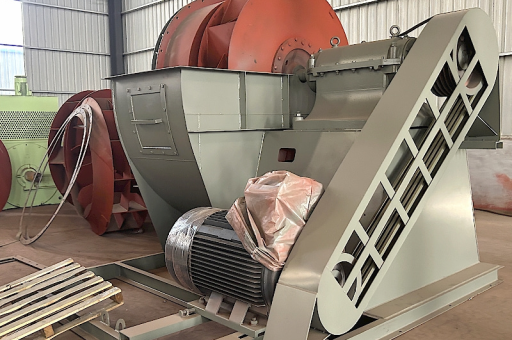

This is a centrifugal fan (also called a blower) powered by a 3-kilowatt (kW) electric motor that is controlled by a Variable Frequency Drive (VFD) .
- Centrifugal Fan: Air is drawn into the center of a rotating impeller and thrown outward by centrifugal force, creating high pressure and airflow. They are ideal for ducted systems and applications requiring pressure to overcome resistance.
- Variable Frequency Drive (VFD): This electronic controller varies the frequency (and voltage) supplied to the motor. This allows you to precisely control the fan speed (RPM) which directly controls the airflow (CFM/m³/h) and pressure.
Key Specifications (Typical)
These values are approximate and depend on the specific fan design (e.g., forward-curved, backward-curved, or radial blade).
| Parameter | Typical Value / Range | Notes |
|---|---|---|
| Motor Power | 3 kW (approx. 4 HP) | The input power of the electric motor. |
| Voltage | 380-415V 3-Phase (most common) or 220-240V Single Phase | Check your power supply. |
| Max Airflow | 2,000 - 6,000 m³/h (1,200 - 3,500 CFM) | Heavily dependent on pressure. |
| Max Pressure | 500 - 2,000 Pa (2 - 8 inWG) | Low to medium pressure. Higher for radial blade. |
| Max Speed | 2,800 - 3,450 RPM (Direct Drive) | Speed range controlled by VFD. |
| Inlet/Outlet Size | 150mm - 250mm (6" - 10") | Varies by manufacturer and model. |
| VFD Features | Speed control, soft start, overcurrent protection, PID control, RS485 communication (optional) | Included or as a separate unit. |
Applications for a 3kW VFD Centrifugal Fan
This size is a workhorse for medium-scale commercial and light industrial tasks:
- HVAC Systems: Supply or exhaust air in buildings, ventilation for large rooms, fume hoods.
- Dust Collection: Small to medium dust collectors for woodworking shops, welding booths, or material handling.
- Industrial Process: Drying systems, air knives, cooling electronic cabinets, pneumatic conveying of light materials.
- Agriculture: Grain drying, ventilation for greenhouses or livestock barns.
- Clean Rooms: Precisely maintaining positive or negative air pressure.
- OEM Equipment: Built into machines like ovens, dryers, or packaging equipment.
Critical Advantages of Using a VFD
Without a VFD, a 3kW fan runs at 100% speed whenever powered on. Adding a VFD provides significant benefits:
- Energy Savings: The most important benefit. Fan power is proportional to the cube of the speed.
- Example: Running the fan at 80% speed uses only 51% of the full power (0.8³ = 0.512). A 3kW fan at 80% speed only draws ~1.5kW.
- Precise Control: You can dial in exactly the airflow needed, rather than using dampers or throttle valves which waste energy.
- Soft Start: The VFD ramps the fan up slowly, eliminating high inrush currents that can trip breakers and reducing mechanical stress on belts, bearings, and the motor.
- Reduced Noise: Running a fan at a lower speed is significantly quieter.
- Process Control: Can be integrated with sensors (temperature, pressure, flow) for automatic PID control (e.g., maintaining constant duct pressure).
Important Considerations Before Buying/Installing
- Is it a "Package Unit"? Some units come as a complete "fan and VFD package" (pre-wired and tested). Others are just the fan, and you must purchase a separate VFD. Clarify this.
- Motor Type: The motor must be inverter-duty rated (or at least a standard 3-phase motor with separate cooling). Standard motors can overheat when run at very low speeds because their internal cooling fan slows down.
- Input Power: Do you have 3-phase power? If not, you need a VFD that can convert single-phase input to 3-phase output (called a "phase converter VFD"). Not all VFDs can do this, and they often derate the power.
- Single-phase input, 3kW output: This is possible but less common. The input current will be very high (approx. 20-25A). You may need a larger VFD or a step-up transformer.
- Fan Curve: Always check the manufacturer's fan performance curve. This graph shows the relationship between airflow (volume) and static pressure at different speeds. It is critical to ensure the fan can meet your system's resistance.
- Noise & Vibration: Centrifugal fans can be noisy. Consider flexible connections at the inlet/outlet and vibration isolation mounts.
- Warranty & Support: Industrial equipment is a capital investment. Ensure the manufacturer or supplier offers good warranty and technical support.
How to Get a Quote or Specify One
When contacting a supplier, you will need to provide this information:
- Airflow Required (m³/h or CFM): How much air do you need to move?
- Static Pressure (Pa or inWG): What is the resistance of your ductwork and filters?
- Power Supply: Voltage, Phase, Frequency (e.g., 415V, 3-Phase, 50Hz).
- Application: What will it be used for? (e.g., "Dust collection for woodworking" or "General ventilation").
- Control Method: Do you want simple speed control via a knob, or PID control with a pressure sensor?
- Environmental Factors: Will it be exposed to dust, moisture, corrosive gases, or high temperatures?
Summary
A 3kW VFD centrifugal fan is a versatile, energy-efficient solution for medium-scale air movement tasks. The inclusion of the VFD makes it far superior to a standard fixed-speed fan for applications requiring variable airflow, precise control, or energy conservation. The key is to match the fan's performance curve to your system's requirements and ensure your electrical supply is compatible.
