This article's table of contents introduction:
- Key Features to Look For
- Potential Product Categories (Industrial Grade)
- Example Product Specifications (Hypothetical)
- Where to Buy / Search
It sounds like you are looking for a centrifugal fan that combines several key high-performance features: anti-fraying (likely referring to the motor or construction resisting wear/deterioration), high-temperature resistance, long lifetime, and green (energy-efficient or environmentally friendly).
These specifications are typical for demanding industrial applications such as boilers, fume extraction, dryers, kilns, and HVAC systems in harsh environments.
Here is a breakdown of what that specification means in engineering terms and what you should look for in a product:
Key Features to Look For
-
Anti-Fraying (Durability & Material Quality):
- Impeller Material: Look for 304 or 316 Stainless Steel (resists pitting and fraying from particulates) or Anti-corrosion coated carbon steel (e.g., epoxy or PTFE coating).
- Motor Protection: TEFC (Totally Enclosed Fan Cooled) or TENV (Totally Enclosed Non-Ventilated) motors to prevent dust and fibers from fraying the internal windings.
- Vibration Isolation: Robust base and dampening mounts to prevent mechanical fatigue (fraying of bolts/bushings).
-
High Temperature Resistance:
- Bearing Type: High-temp grease-packed bearings (typically rated for 150°C / 300°F and above).
- Shaft & Housing: Shaft cooling fins or heat slingers to dissipate heat from the motor.
- Motor Class: Class H or Class F insulation (Class H is best for 180°C / 356°F).
- Type: Plug Fans or Direct Drive (belt-drive belts fray faster under heat).
-
Long Lifetime:
- Components: Heavy-duty cast iron housing instead of thin sheet metal.
- Balance: Dynamic balancing of the impeller (G6.3 or better).
- Certification: ISO 9001 manufacturing, CE, UL, or CCC certification.
-
Green (Energy Efficiency & Environmental):
- Motor: IE3 / IE4 / IE5 Premium Efficiency Motors (e.g., NEMA Premium or EISA compliant).
- VFD Ready: Ability to connect to a Variable Frequency Drive for demand-based speed control (major energy saver).
- Low Noise: Aerodynamically optimized blades (backward curved or airfoil design).
- Materials: Lead-free, RoHS compliant, and recyclable components.
Potential Product Categories (Industrial Grade)
Based on your criteria, you are likely looking for one of these specific models:
| Category | Typical Application | Key Feature |
|---|---|---|
| High-Temperature Industrial Fans | Kiln exhaust, oven exhaust, thermal oxidizer | Inlet/outlet flanges, ceramic or Teflon seal, temp range up to 500°C. |

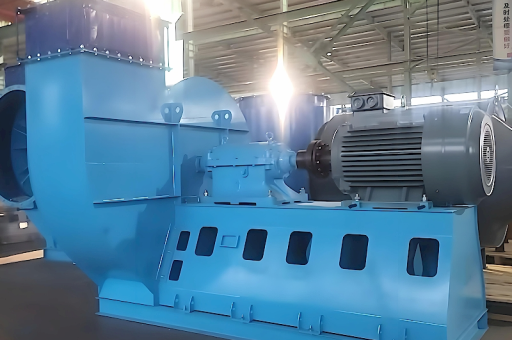

| Boiler / Draft Fans | Coal, gas, or biomass boilers | Heavy plate steel, anti-erosion liners, high temp bearing cooling. |
| Fume / Dust Collection Fans | Welding fume, chemical fume, textile dust | Anti-fraying impeller (e.g., radial blade), spark-resistant construction (Aluminum or non-ferrous). |
| Plug Fans | HVAC air handling, cleanrooms | Green (high efficiency motor), quiet operation, compact design. |

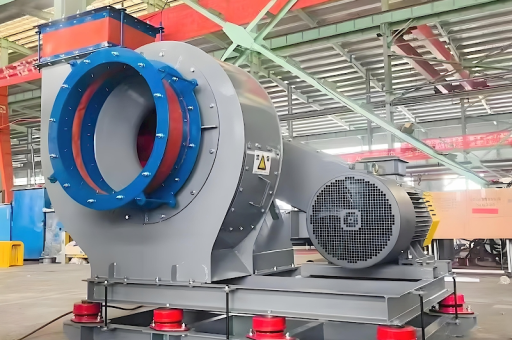

| Centrifugal Blowers | Forced draft, pneumatic conveying | Long life due to simple, robust design (e.g., cast iron housing). |
Example Product Specifications (Hypothetical)
If you are requesting a quote or looking for a specific model, here is what a datasheet would look like:
Model: GH-500-HE Type: High-Efficiency Backward Curved Centrifugal Fan Airflow: 10,000 – 50,000 CFM Pressure: 4 – 20 inches w.g. Max Temp: 250°C (482°F) continuous Motor: 25 HP, IE3 (Premium Efficient), TEFC, Class H Bearing: Sealed SKF high-temp (90°F/50°C above ambient) Impeller: Anti-fraying 316L Stainless Steel (optional: rubber/PTFE liner for abrasive gas) Frame: Cast Iron / Heavy Duty Steel Efficiency: >85% (Peak) Lifetime: >50,000 hours (MTRF) Green: 100% RoHS, 95% recyclable
Where to Buy / Search
- Major Manufacturers: Howden, Greenheck, New York Blower, Chicago Blower, Loren Cook, Cincinnati Fan, SODECA, Ziehl-Abegg.
- China/Asia (Value): Shenzhen Decai, Shanghai Dayu, Shandong Zhongtai (verify certifications carefully for high-temp/anti-fraying claims).
- Search Terms for Purchasing:
- "High Temperature Industrial Centrifugal Fan IE4"
- "Anti-abrasion Stainless Steel Blower for Boiler"
- "Long Life Fume Extraction Fan"
- "Green High Efficiency Plug Fan 400°F"
Important: For a specific recommendation, please provide:
- Max air temperature (e.g., 120°C, 250°C, 450°C?)
- Gas composition (is it clean air, or does it contain corrosive fumes, dust, fibers? This affects the anti-fraying material choice).
- Flow rate (CFM or m³/h)
- Voltage (230V, 460V, 380V, 3-phase?)
Let me know your specific numbers, and I can help you narrow down the exact model or manufacturer.
