This article's table of contents introduction:
- Application: Mineral Powder Sintering
- Fan Type: SWSI (Single Width, Single Inlet)
- Drive Mechanism: Coupling Driving
- Summary of the System
This appears to be a specific technical specification or description for an industrial fan system. Let's break down each component to understand the full meaning:
Core System: A Centrifugal Fan used for Mineral Powder Sintering, driven by a SWSI (Single Width, Single Inlet) configuration, using a Coupling (direct drive).
Here is the detailed explanation of each term:
Application: Mineral Powder Sintering
- Process: Sintering is a heat treatment process used in steel mills and mineral processing. Fine mineral powders (like iron ore dust, limestone, or coke breeze) are fused into a solid, porous mass (called "sinter") by heating them below their melting point.
- Fan Role: The centrifugal fan is critical here. It provides the combustion air to the sintering bed (to burn the fuel) and, more importantly, creates a strong negative pressure (draft) to pull the hot gases down through the powder bed. This is the defining feature of a sinter plant fan.
- Challenges: These fans handle very hot, abrasive, and corrosive gases. They require robust construction, often with wear-resistant liners (hard facing) and high-temperature alloys.
Fan Type: SWSI (Single Width, Single Inlet)
- Definition:
- Single Width: The impeller (wheel) is narrower compared to a Double Width (DWDI) fan. This typically means a lower volume of air but higher pressure.
- Single Inlet: Air enters the fan from only one side of the impeller.
- Why SWSI for Sintering? Sintering fans need to generate very high static pressure to overcome the resistance of the thick powder bed. SWSI centrifugal fans are excellent at generating high pressure efficiently. They are also simpler to install and maintain than double-inlet fans in confined spaces.
Drive Mechanism: Coupling Driving

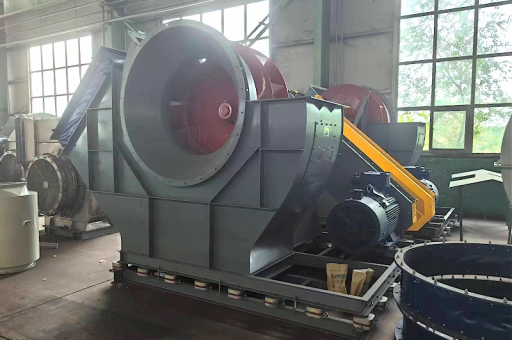

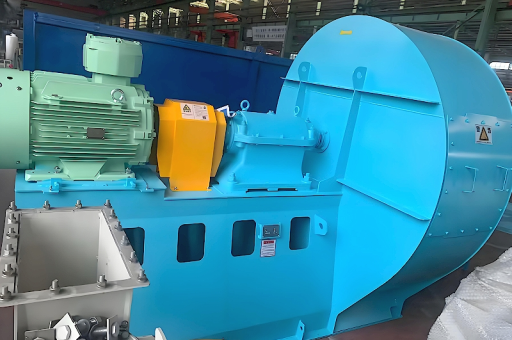

- Definition: The fan is connected directly to an electric motor via a shaft coupling (e.g., a flexible coupling, gear coupling, or fluid coupling).
- Analysis:
- Direct Drive vs. Belt Drive: "Coupling driving" implies a direct-drive system (the motor RPM equals the fan RPM, or a gearbox is used).
- Type of Coupling: In sintering, Fluid Couplings or Hydrodynamic Couplings are very common. They offer:
- Soft Start: The fan has a very high inertia (heavy wheel). A fluid coupling allows the motor to start under no load and gradually accelerate the fan, reducing electrical stress.
- Torque Limiting: Protects the motor from fan stalls or blockages.
- Vibration Damping: Absorbs shock loads from uneven powder distribution or fan imbalance.
Summary of the System
A high-pressure, single-inlet centrifugal fan (SWSI) used in a mineral sintering plant, driven directly by an electric motor through a flexible or fluid coupling.
Typical Characteristics of such a fan:
- Housing: Heavy-duty, spiral (volute) casing.
- Impeller: Backward-curved or radial-tipped blades (for wear resistance and high pressure).
- Shaft Seal: Often high-temperature or gas-tight seals (labyrinth or carbon rings) to prevent gas leakage.
- Material: Carbon steel with wear liners, or stainless steel for high-temperature zones.
- Performance: High static pressure (e.g., 10,000 - 20,000 Pa or more), moderate to high airflow.
Key Keywords for a Technical Drawing or Specification: Sinter Fan, Main Exhauster Fan, EP Induced Draft Fan, SWSI Centrifugal, Fluid Coupling Drive.
If you have a specific parameter (like power, RPM, or gas temperature) or a problem (like vibration, overheating, or performance drop), please provide it for a more targeted answer.
