This article's table of contents introduction:

1. The Material Selection Challenge (The "High-Temp" Triad)
2. Cooling Strategies for Efficiency (Without Wasting Energy)
3. The "Energy Saving" Mechanism Explained
4. Practical Example: A Biomass Boiler ID Fan
5. Summary Table: Best Practice for High-Temp Boiler Fans

This is a highly specialized topic at the intersection of thermal engineering, materials science, and mechanical design.

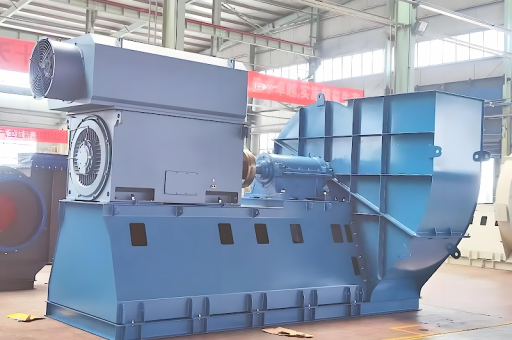

The core challenge is that in an energy-saving boiler, the fan (Induced Draft Fan or Forced Draft Fan) must operate in a high-temperature environment (often 150°C to 400°C+), but the fan itself generates heat from inefficiencies. To maintain efficiency, the fan must be thermally managed without consuming excessive parasitic power.

Here is a breakdown of the materials and cooling strategies used for Efficient Energy Saving Boiler Fans operating under high-temperature conditions.

The Material Selection Challenge (The "High-Temp" Triad)

For a fan to be efficient and durable, the material must withstand:

• Creep Resistance: Deformation under constant stress at high temp.
• Corrosion/Erosion: Flue gases contain sulfur, chlorides, and fly ash.
• Fatigue Strength: Thermal cycling (start/stop).

A. Impeller (Wheel) Materials The impeller is the most stressed component.

• For Moderate Heat (200°C - 350°C):
  • High-Strength Low-Alloy Steels (HSLA): Often with a protective coating (e.g., Belzona, Ceramic Epoxy).
  • Corten Steel: Forms a stable rust layer, good for dry environments.
• For High Heat (350°C - 650°C):
  • Stainless Steel (304/316L): Good up to ~800°C, but loses strength. 310S (25/20) is preferred for higher sulfur resistance.
  • Inconel 625 / 718: The "gold standard." Excellent oxidation resistance, creep strength, and thermal fatigue resistance. Required for waste heat recovery or biomass boilers.
• For Extreme Heat (650°C+):
  • Hastelloy X or Ceramic Matrix Composites (CMCs) – rare, used only in specialized industrial boilers or gas turbine exhausts.

B. Shaft & Bearings

• Shaft: Typically AISI 4140 or 4340 alloy steel, or Stainless 17-4PH. Must be precision-machined to reduce vibration (which wastes energy).
• Bearings: The weakest link. Standard grease fails at ~80°C.
  • Must use High-Temp Grease (PFPE-based, e.g., Krytox) up to 250°C.
  • Or Oil Mist Lubrication with synthetic oil for extreme longevity.

Cooling Strategies for Efficiency (Without Wasting Energy)

The goal is to cool the mechanical parts (bearings, shaft) without cooling the gas flow (which would reduce efficiency). Cooling must be targeted.

A. Forced Convection Cooling (Most Common)

• Method: A small, dedicated cooling fan (shroud fan) is mounted on the motor shaft (or a separate small motor).
• How it works: It blows ambient air over the bearing housing and the backplate of the fan.
• Efficiency: Very high. It uses <1% of the motor power to keep bearings below 80°C, even if the process gas is 400°C.

B. Shaft Heat Conduction Management

• Method: Heat slingers or cooling discs (finned heat sinks) mounted on the shaft between the impeller and the bearing.
• Efficiency: Passive. No energy input. Radiates heat away from the shaft into the ambient air. Works best when ambient air is cool.

C. Insulation of the Casing

• Method: A thick layer of mineral wool or ceramic fiber insulation on the outside of the fan housing.
• Why it saves energy: Reduces heat loss to the environment (improves boiler efficiency) AND prevents the fan casing from re-radiating heat back onto the shaft and bearings. This stabilizes the thermal gradient.

D. Air Purge (Seal Cooling)

• Method: A small stream of compressed ambient air is injected into the seal between the shaft and the housing.
• Why: Prevents hot flue gas from leaking out onto the bearing. This is critical for efficiency as it stops hot gas recirculation inside the fan, which wastes energy.

The "Energy Saving" Mechanism Explained

Efficiency loss in a high-temp fan comes from three sources:

1. Friction: In bearings (increases with heat if grease degrades).
2. Aerodynamic: Tip leaks and turbulence (worsened by thermal distortion of the impeller).
3. Motor Efficiency: An overheated motor becomes less efficient (copper resistance increases).

How the combination above fixes this:

• The "Efficient" Fan Setup:
  • Material: 310S Stainless (or Inconel) impeller → No thermal distortion → Keeps blade gaps tight → Low aerodynamic loss.
  • Cooling: Shroud fan + heat slinger → Bearings stay at 50°C → Grease doesn't degrade → Low friction.
  • Insulation: Casings insulated → Motor doesn't get cooked → High electrical efficiency.

Practical Example: A Biomass Boiler ID Fan

• Problem: 350°C flue gas, heavy fly ash.
• Solution:
  • Impeller: Hastelloy C-276 or Duplex Stainless (e.g., SAF 2205).
  • Shaft: 17-4PH Stainless with a water-cooled jacket (only if ambient air is hot).
  • Bearings: Double-row spherical roller bearings with oil mist lubrication.
  • Cooling: Dedicated shroud fan (most efficient) + ceramic shield between impeller and bearing.
  • Result: Fan efficiency >85% (vs 70% for a standard fan) with 10,000+ hour MTBF.

Summary Table: Best Practice for High-Temp Boiler Fans

Key Takeaway: The most efficient cooling method is not to cool the gas, but to isolate the mechanical components from the heat using specialized materials (Inconel, Ceramics) and targeted air cooling (shroud fan). This approach saves energy by maximizing fan aerodynamic efficiency while minimizing parasitic losses.
