22kW centrifugal fan

This article's table of contents introduction:

1. What is it?
2. Typical Technical Specifications
3. Main Components
4. Common Applications (Typical for 22kW)
5. Key Engineering Considerations for a 22kW Fan
6. Cost Estimate (2024)
7. Selection Checklist
8. Example Manufacturer Listings
9. Final Warning

Here is a comprehensive breakdown of what a 22kW centrifugal fan is, its typical specifications, applications, and key engineering considerations.

What is it?

A 22kW centrifugal fan is an industrial air-moving device powered by a 22-kilowatt (approx. 29.5 HP) electric motor. The "centrifugal" design means air enters the fan axially (along the shaft) and is expelled radially (perpendicular to the shaft) by a rotating impeller.

This is a high-power unit, typically used for moving large volumes of air against significant resistance (static pressure).

Typical Technical Specifications

Since "22kW" refers to the motor power, the fan's performance curve will dictate the exact airflow and pressure. A typical specification range might be:

• Motor Power: 22 kW (29.5 HP)
• Motor Speed: Usually 1450 - 1480 RPM (4-pole motor, direct drive) or 2900 - 2960 RPM (2-pole, for higher pressure).
• Airflow (Volume): 8,000 m³/h to 25,000 m³/h (4,700 CFM to 14,700 CFM) depending on pressure.
• Static Pressure: 1,500 Pa to 6,000 Pa (6" to 24" w.g.) depending on volume.
• Voltage: 380V - 480V 3-Phase (most common), or 690V for large installations. (Note: 22kW on single-phase is extremely rare and inefficient).
• Sound Level: >85 dBA (requires hearing protection).

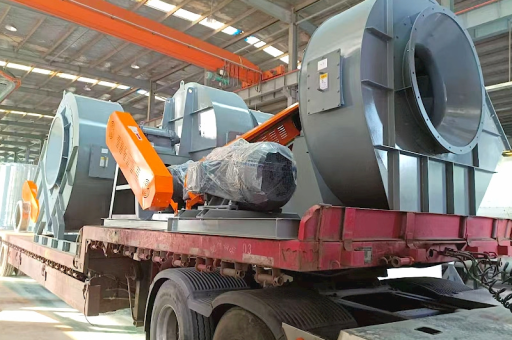

Main Components

1. Impeller: The rotating wheel.
   • Forward Curved: High volume, low pressure.
   • Backward Curved (Inclined or Airfoil): Higher efficiency, lower noise, non-overloading power curve (most common for 22kW).
   • Radial Paddle: Handles dust-laden air, creates high pressure.
2. Housing/Volute: Spiral casing that converts velocity energy into pressure.
3. Shaft & Bearings: Heavy-duty pillow block bearings.
4. Electric Motor: 22kW, TEFC (Totally Enclosed Fan Cooled) or IC 411.
5. Base Frame & Drive:
   • Direct Drive: Impeller mounted on motor shaft. More efficient, simpler, fixed speed.
   • Belt Drive: Allows speed adjustment (pulley change), motor placement outside hot gas stream.

Common Applications (Typical for 22kW)

• HVAC & Ventilation: Large factory halls, warehouses, parking garages.

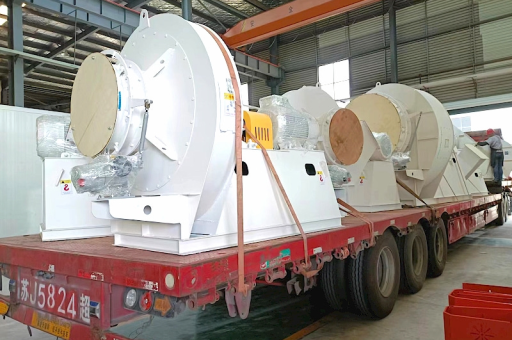

• Dust Collection & Fume Extraction: Primary fan for woodworking shops, welding fume extraction, or chemical labs.
• Combustion & Boiler Draft: Forced Draft (FD) or Induced Draft (ID) fans in medium-sized industrial boilers.
• Pneumatic Conveying: Moving light materials (sawdust, granules, pellets) through ducting.
• Process Air Supply: Drying ovens, spray booths, cooling tunnels.

Key Engineering Considerations for a 22kW Fan

Power Draw & Motor Protection

• Full Load Current (FLA): A 22kW motor at 400V draws roughly 38-42 Amps.
• Startup Current: Direct-on-line (DOL) starting draws 6-8x FLA (>280A). Must use Soft Starter, Star-Delta, or VFD to avoid tripping breakers and damaging the system.
• Overload Protection: Critical. A centrifugal fan can overload if the system resistance drops (e.g., a filter falls out or a damper is left open).
  • Backward Curved Impellers are "non-overloading" (peak power is limited).
  • Forward Curved & Radial Impellers are "overloading" (power increases sharply with volume; must be installed with a damper or variable speed).

Variable Speed Drive (VFD)

A 22kW fan is a prime candidate for a Variable Frequency Drive.

• Benefit: Massive energy savings. Fan power is cubic with speed.
  • Example: Slow the fan to 80% speed → Power draw is (0.8^3 = 0.512) ≈ 11.3 kW (half power!).
• Requirement: Use a dedicated VFD for 22kW motor.
• Duty Cycle: Continuous duty (S1). Do NOT install a fan rated for intermittent duty on a 24/7 process.

Air Density & Temperature

The fan curve (pressure vs. volume) is designed for a standard air density (1.2 kg/m³ at 20°C).

• Hot Air (e.g., 150°C): Density drops. The fan will produces less pressure. You will get slightly less actual mass flow but the motor power draw will drop.
• Cold Air (e.g., -10°C): Density increases. The fan will produce more pressure and the motor will draw more power potentially overloading the 22kW motor.
• Correction: You must apply density correction factors when matching a fan to a process.

Material & Construction

• Standard: Mild Steel (MS) with epoxy paint.
• Corrosive Fumes (e.g., Chemical Plant): Stainless Steel (SS304 or SS316).
• Abrasive Dust (e.g., Cement, Sand): Hard-faced impeller (Chromium carbide) or replaceable liners.
• Explosive / Combustible Dust: ALARP (As Low As Reasonably Practicable) spark-resistant construction. Use conductive housing, aluminum impeller (tungsten tips), and grounding. Critical for grain, wood, and chemical applications.

Balance & Vibration

• Balance Grade: ISO 1940 G6.3 (Standard) or G2.5 (High speed / critical equipment).
• Vibration Monitoring: Highly recommended for a 22kW fan. Unbalance, bearing wear, or resonance can destroy the fan or building structure.
• Isolators: Use spring or rubber vibration isolators under the base frame.

Noise & Safety

• Sound Level: Expect 85-95 dBA at 1m. Mitigation:
  • Acoustic enclosures (expensive).
  • Inlet/outlet silencers.
  • Duct lagging.

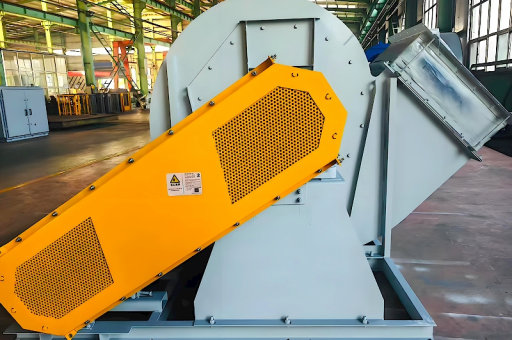

• Safety Guards: Mandatory. All rotating parts (shaft, pulleys, belts, impeller inlet) must be guarded per OSHA/ISO 13857. Guards must be slotted or mesh to see in.

Cost Estimate (2024)

A 22kW centrifugal fan is a significant CAPEX investment.

Selection Checklist

1. Define Process: Airflow (m³/h) and Total Static Pressure (Pa).
2. Identify Gas: Clean air, dusty, corrosive, hot (>80°C), or explosive.
3. Select Impeller: Backward curved (efficiency) vs. Radial (toughness).
4. Choose Drive: Belt drive (flexible) vs. Direct drive (reliable).
5. Control Strategy: Fixed speed vs. VFD (energy savings vs. cost).
6. Mounting: On floor, roof (weatherproof), or structural steel frame.

Example Manufacturer Listings

• S&P (Soler & Palau)
• Greenheck (U.S.)
• Systemair
• Howden (Industrial)
• Aerovent
• COMBIFAN (India/Asia)

Final Warning

A 22kW fan is powerful and dangerous. If you are retrofitting, be aware that switching to a cheaper "22kW" motor on a different impeller can catastrophically overload the motor or destroy the shaft. Always cross-reference the fan curve with the system resistance curve.

If you share the actual airflow (m³/h or CFM) and static pressure (Pa or in. wg) required, I can help narrow down the specific fan design (e.g., "A 22kW backward curved fan with 12,000 m³/h at 2,500 Pa").
