This article's table of contents introduction:
- "Forward Forced Draught Fan"
- "Centrifugal... Fan"
- "High Pressure Blower Fan"
- The Complete Picture: What this Fan Actually Is
- Summary
This is a specific piece of industrial equipment. Let's break down what those terms mean and what type of fan you are describing.
In short: You are describing a Centrifugal Fan with a specialized blade design, used in a specific installation orientation, to move air against high resistance (high static pressure). It is commonly used to force air into a boiler or furnace system.
Here is a detailed explanation of each term in your query:

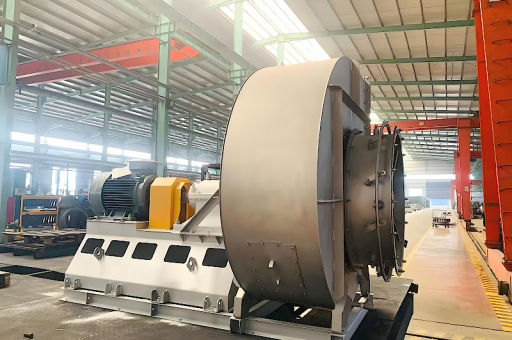

"Forward Forced Draught Fan"
This phrase actually describes two separate, but related, concepts:
- Forward (Curved): This refers to the blade design. A "forward curved" centrifugal fan has blades that curve in the direction of rotation.
- Characteristics: High volume of air, relatively low to medium pressure compared to other types, quieter operation, but has a "drooping" power curve (motor can overload if airflow is restricted).
- Forced Draught (FD): This is the application of the fan.
- Definition: A Forced Draught fan is located before the combustion chamber (boiler, furnace, incinerator).
- Purpose: It pushes (forces) fresh ambient air into the system. It operates against the resistance of the air ducts, air preheaters, and the burner itself to supply the oxygen needed for combustion.
Conclusion for this part: You are describing a fan that pushes air into a system (FD) and has forward-curved blades.

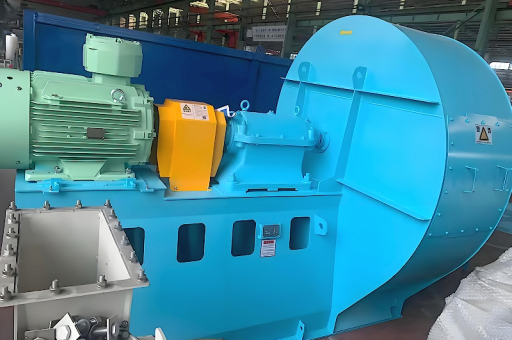

"Centrifugal... Fan"
This describes the operating principle of the fan.
- How it works: Air enters the center (the "eye" of the impeller) and is spun outwards by the rotating blades (the impeller) due to centrifugal force.
- How it creates pressure: This outward motion accelerates the air, and the fan housing (scroll/volute) converts that velocity (kinetic energy) into pressure (potential energy) via a widening passage.
- Why it's used here: Centrifugal fans are ideal for high-pressure applications like forcing air into a boiler, as they can generate much higher static pressure than axial fans (like a desk fan or a wall-mounted exhaust fan).

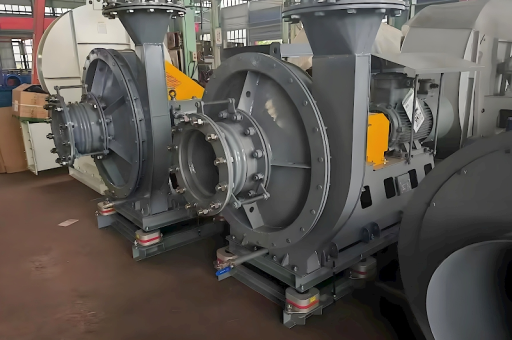

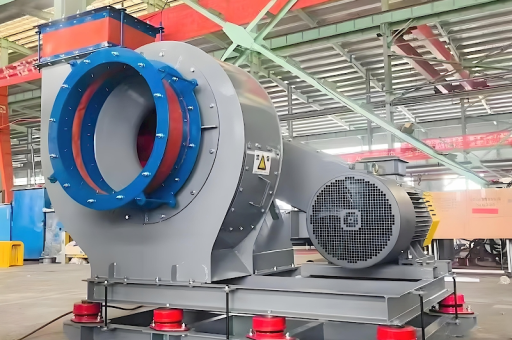

"High Pressure Blower Fan"
This confirms the specific duty of the fan.
- Not a standard blower: A standard blower moves air against very little resistance.
- High Pressure: This fan is designed to overcome significant system resistance, specifically the "static pressure" created by:
- The burner's air registers and diffusers.
- The air preheater (a heat exchanger that warms the incoming air using exhaust gas).
- The length and turns of the ductwork.
The Complete Picture: What this Fan Actually Is

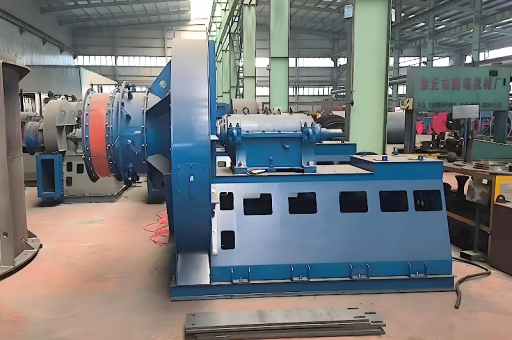

You are describing a Forward-Curved Centrifugal Fan used as a Forced Draft Fan for a high-pressure industrial combustion system (like a large boiler, furnace, or incinerator).
Key Characteristics of this Fan:
| Feature | Description & Implication |
|---|---|
| Blade Type | Forward-Curved (blades curve in direction of rotation). |
| Flow Direction | Centrifugal (air enters axially, exits radially outwards into a scroll). |
| Primary Duty | Forced Draft (pushes air into the system, before the combustion chamber). |
| Pressure Range | High Static Pressure (typically 20" to 100+ inches of water gauge (w.g.) or 5 kPa to 25 kPa). |
| Typical Use | Boilers (power plants, industrial steam boilers), furnaces (steel, glass, cement), incinerators. |
| Sound Profile | Quieter than a backward-curved fan at the same duty, but the high pressure creates significant noise. |
| Motor/Drive | Often large, with VFD (Variable Frequency Drive) for precise control. Usually belt-driven or direct-driven from a large electric motor. |
Important Operational Note:
Never operate a forward-curved fan with a closed or blocked discharge. Because its power consumption increases as airflow decreases, it can overload and burn out the motor if the outlet is blocked. This is the opposite of many other fan types.
Summary
You are looking at a specific, heavy-duty industrial fan that is:
- Type: Centrifugal
- Blade Design: Forward-Curved
- Application: Forced Draft (FD) for a combustion process
- Performance: High Airflow against High Static Pressure
If you need to select, purchase, or maintain this fan, use the search term "Forward Curved Forced Draft Centrifugal Fan" or "FD Fan Forward Curved Impeller". You will be looking at products from manufacturers like Howden, AirPro Fan, New York Blower, Chicago Blower, or specific industrial fan companies that supply boiler OEMs (Original Equipment Manufacturers).
