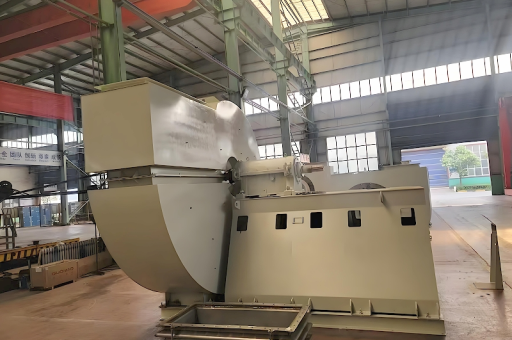

16Mn Low Pressure Energy Efficiency Air Supply Explosion Proof Blower Fan

This article's table of contents introduction:

1. Key Component Breakdown
2. Typical Technical Parameters (Example Spec)
3. Common Applications for this Specific Fan
4. Key Considerations for Sizing
5. Summary Quote Request Keyword

Based on the keywords you provided, here is a technical breakdown and specification analysis for a 16Mn Low Pressure Energy Efficiency Air Supply Explosion Proof Blower Fan.

This appears to be a specialized industrial fan designed for environments requiring both safety (explosion proof) and durability (16Mn steel), likely used in ventilation, air supply for combustion, or pneumatic conveying of non-corrosive materials.

Key Component Breakdown

1. Material: 16Mn (Now Q345B/Q355B)

   • What it is: A low-alloy high-strength structural steel. (Note: The old standard "16Mn" is now generally replaced by Q345B or Q355B in GB/T standards, but the industry still often uses "16Mn" colloquially).
   • Why it's used:
     • High Strength: Stronger than standard carbon steel (Q235), allowing for thinner gauge materials and lighter fan weight while maintaining durability.
     • Wear Resistance: Better resistance to abrasion than mild steel.
     • Weldability: Good welding performance for fabrication.
     • Pressure: Suitable for low-pressure systems that still require structural integrity against vibration and fatigue.

2. Low Pressure

   • Specification: Typically refers to fans with a full pressure (static pressure) below 1000 Pa (4 inH₂O) .
   • Design: Usually involves a centrifugal fan with forward-curved blades (to move large volumes of air at low pressure) or an axial fan (for high volume, free air).
   • Application: Fresh air intake, general ventilation, or cooling.

3. Energy Efficiency

   • Specification: High-efficiency impeller design (e.g., airfoil blades or backward-curved/inclined blades) to reduce motor power consumption.
   • Corresponds to: IE2/IE3 Premium Efficiency Motors (often required for energy compliance).
   • Design Feature: Optimized volute casing to minimize eddy currents and friction losses.

4. Air Supply

   • Function: The primary purpose is to bring fresh, clean air INTO a space or into a combustion system.
   • Important: For air supply into a hazardous area, the fan must be located in a safe area or be spark-resistant/explosion-proof.

5. Explosion Proof (Ex)

   • Classification: Designed to prevent the fan from igniting a surrounding explosive atmosphere (dust, gas, or vapor).
   • Key Construction Features:
     • Material: 16Mn provides structural strength. Impellers are often made of aluminum alloy or stainless steel (non-sparking).
     • Housing: Clearance gap between impeller and inlet cone is larger (spark gap) to prevent metal-to-metal contact.
     • Motor: Must be an Ex-proof motor (e.g., Ex d IIB T4 or Ex e II T3).
     • Shaft Seal: Carbon ring or labyrinth seal to prevent gas leakage along the shaft.
     • Grounding: Static grounding strap required.
     • Bearings: External bearing housing or specific grease to handle heat.

Typical Technical Parameters (Example Spec)

Common Applications for this Specific Fan

1. Mining Ventilation (Air Intake): Moving fresh air into a mine drift. 16Mn handles the heavy vibration and potential impact from debris.
2. Marine & Offshore: Supply air to engine rooms or hazardous zones on ships (16Mn resists corrosion better in marine environments than standard steel).
3. Chemical Processing: Supplying fresh air to personnel areas adjacent to solvent storage.
4. Power Plants: Air supply for low-pressure burners or general ventilation of coal handling areas.
5. Agricultural/Food Industry: Grain drying or aeration where dust explosions are a risk (e.g., grain silos).

Key Considerations for Sizing

• Temperature: 16Mn performs well up to about 150°C (300°F) without significant strength loss. For higher temps (combustion air), you need 310S stainless or 16MnMo.
• Altitude: Low pressure fans are sensitive to air density. De-rate the flow if operating at high altitude.
• Spark Resistance: Verify if the fan needs non-sparking impeller (Aluminum Bronze/AL6061) vs. just a non-ferrous lining.

Summary Quote Request Keyword

If you are sending this to a supplier, this string is accurate:

"16Mn Low Pressure Energy Efficiency Air Supply Explosion Proof Blower Fan - Model like B4-72 No. 3.2A, Flow 2000 m³/h @ 700 Pa, Ex d IIB T4, IE3 Motor."

Would you like me to help calculate the approximate power or airflow needed for a specific application (e.g., a paint booth or a mine tunnel)?
