This article's table of contents introduction:
- The "9-08 Series" Designation
- Backward-Inclined Blades (BI)
- Customizable Drive Arrangements
- Typical Performance Specifications (Example for 9-08)
- Material & Construction Options
- Common Applications for This Specific Blower
- Key Considerations When Ordering Customizable Options
- Summary
Your query appears to reference a specific industrial blower model or specification. Here is a detailed breakdown of what a "9-08 Series High Pressure Industrial Centrifugal Blower with Backward-Inclined Blades and Customizable Drive Arrangements" typically entails in the industrial fan industry.

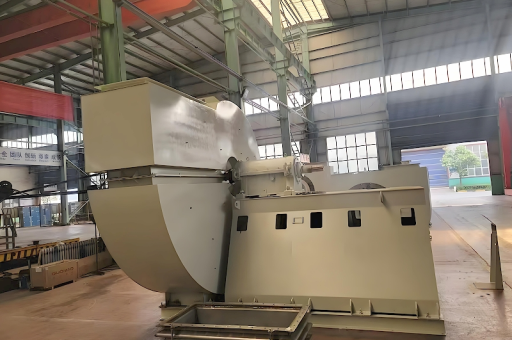

The "9-08 Series" Designation
In many industrial fan naming conventions (e.g., following AMCA or Chinese GB/T standards), the "9-08" designation usually refers to the impeller diameter or a specific size ratio.
- 9: Often indicates the series or pressure class (high pressure).
- 08: Typically represents the impeller diameter in decimeters (e.g., 8.0 decimeters = 800 mm) or a specific size code.
- Application: This size is common in boiler forced draft (FDF) or induced draft (IDF) systems, pneumatic conveying, and dust collection where high static pressure (e.g., 18-40 kPa / 2500-5800 inches W.G.) is required.
Backward-Inclined Blades (BI)
Backward-inclined (sometimes called "backward-curved") blades are a critical design choice for high-pressure applications.
- Performance Curve: Has a non-overloading power curve, meaning the motor will not overload if the system pressure drops (e.g., a clogged filter is removed).
- Efficiency: Typically operates at 75-85% peak static efficiency, making it more efficient than radial or forward-curved blades for high-pressure systems.
- Aerodynamics: The air exits the impeller at a high velocity and is decelerated in the scroll housing, converting velocity pressure into static pressure.
- Usage: Ideal for clean air or slightly dusty air moving against high resistance.

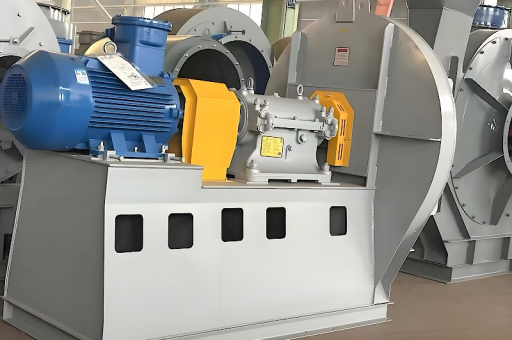

Customizable Drive Arrangements
This is a key selling point for industrial blowers. "Customizable" usually modifies the mounting and power transmission method. Standard arrangements include:
| Arrangement | Description | Typical Use Case |
|---|---|---|
| Arrangement 1 (A1) | Direct drive (impeller mounted on motor shaft). | Fixed speed, clean air, highest efficiency. |
| Arrangement 3 (B3) | Belt drive with impeller overhung on bearing pedestal. Motor separately mounted. | Variable speed (sheave changes), high heat isolation. |
| Arrangement 4 (A4) | Belt drive with impeller overhung on motor shaft (close coupled). | Space saving, simpler, lower power sizes. |
| Arrangement 8 (B8) | Direct drive with impeller between bearings. | Very large, high power, high-reliability systems. |
- Custom Control: Often these blowers are paired with VFDs (Variable Frequency Drives) or adjustable motor bases for precise airflow control via belt tensioning.
Typical Performance Specifications (Example for 9-08)
Note: These vary by specific OEM manufacturer (e.g., New York Blower, Twin City, or Chinese brands like Shanghai Xinxuhui).
- Airflow (CFM): 5,000 to 50,000+ CFM (8,500 to 85,000 m³/h)
- Static Pressure: Up to 60 inches W.G. (15 kPa) or higher depending on size and speed.
- Impeller Diameter: Often 800 mm (31.5") up to 1.2 m (48").
- Temperature Limits: For standard steel, up to 400°F (204°C); for alloy steel, up to 1000°F+.
- Max Speed: Typically 1,800 to 3,600 RPM (depending on drive arrangement).
Material & Construction Options
- Impeller: High-strength steel (e.g., Q345B, Corten, or Stainless Steel 304/316). Welded and stress-relieved. Often fitted with a wear plate at the inlet eye.
- Housing (Scroll): Heavy-gauge steel plate. Split housings (for easy maintenance) are common in "9-08" designs.
- Shaft: 45# steel or 40Cr alloy, oversized to avoid critical speed issues.
- Bearings: Heavy-duty spherical roller bearings or pillow blocks with grease fittings or oil lubrication.

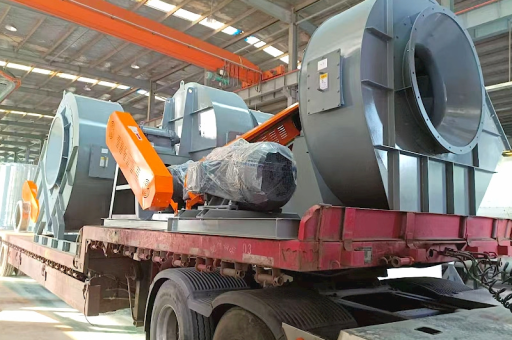

Common Applications for This Specific Blower
- Power Plants: Forced draft (FDF) or Induced draft (IDF) for boilers.
- Cement & Steel: Dust collector baghouse fans.
- Chemical: High pressure pneumatic conveying of powders.
- HVAC: High-rise building pressurization (though usually lower pressure).
- Mining: Mine ventilation (main fans).
Key Considerations When Ordering Customizable Options
If you are sourcing this blower, you must clarify:
- Drive Type: Fixed speed (direct) or variable speed (belt)? If belt, specify motor HP and desired RPM range.
- Inlet Configuration: Single inlet (SISW) or double inlet (DIDW)?
- Position: Clockwise or Counter-Clockwise rotation? Top horizontal discharge, bottom angular, etc.?
- Accessories: Inlet dampers, outlet dampers, inlet boxes, drain plugs, expansion joints, vibration sensors (pickups).
- Environment: Explosion-proof (ATEX, NEC Class I/II), corrosive (phenolic coating), or high-temp (heat slinger / cooling wheel).
Summary
The 9-08 Series high pressure centrifugal blower is a robust, non-overloading fan optimized for moving large volumes of air against high system resistance. Its backward-inclined blades ensure energy efficiency, and the customizable drive arrangement allows you to tailor speed and mounting to your specific mechanical and process needs.
If you need specific pricing, a datasheet, or a vendor recommendation for this series, please provide the required static pressure, airflow, and gas characteristics (temperature, density, dust content).
