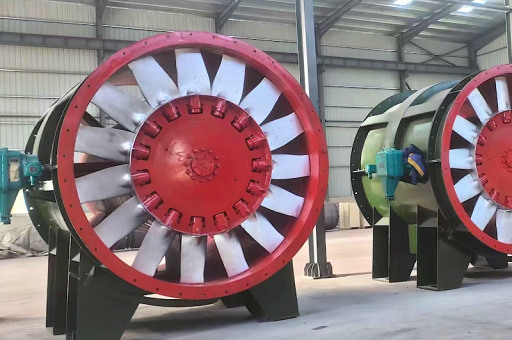

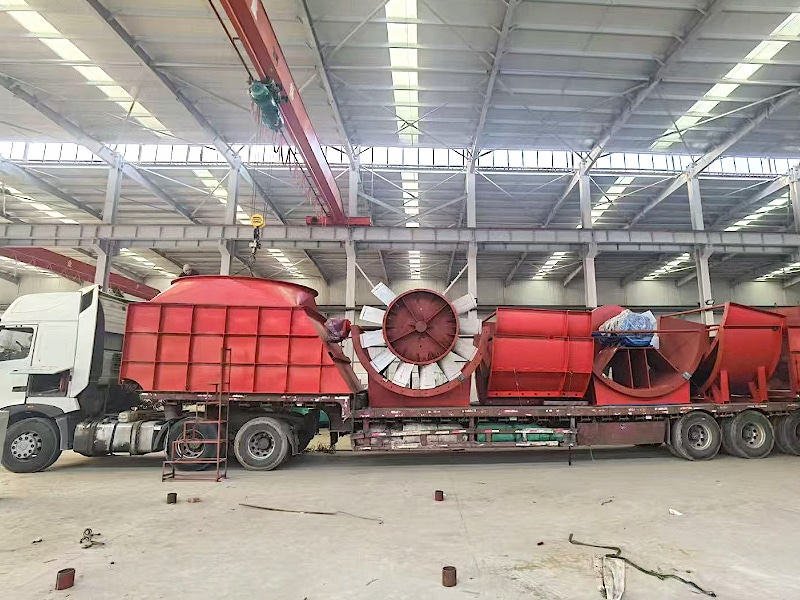

FBCDZ-6-No22 Coal Mine Exhaust Explosion-Proof Counter-Rotating Axial Flow Fan

This article's table of contents introduction:

1. Table of Contents (导读目录)
2. Introduction: The Critical Role of Mine Ventilation Fans
3. What is the FBCDZ-6-No22 Fan? – Definition & Core Design
4. Explosion-Proof Design Principles for Coal Mine Safety
5. The Counter-Rotating Axial Flow Technology: Why Two Rotors?
6. Key Technical Specifications & Performance Parameters
7. Applications: Where and How This Fan is Deployed
8. Maintenance Best Practices for Longevity & Efficiency
9. FAQ: Common Questions About FBCDZ-No22 Series Fans
10. Conclusion: Why This Fan is Essential for Modern Mining

*Optimizing Mine Ventilation: The FBCDZ-6-No22 Coal Mine Exhaust Explosion-Proof Counter-Rotating Axial Flow Fan*

Table of Contents (导读目录)

1. Introduction: The Critical Role of Mine Ventilation Fans
2. What is the FBCDZ-6-No22 Fan? – Definition & Core Design
3. Explosion-Proof Design Principles for Coal Mine Safety
4. The Counter-Rotating Axial Flow Technology: Why Two Rotors?
5. Key Technical Specifications & Performance Parameters
6. Applications: Where and How This Fan is Deployed
7. Maintenance Best Practices for Longevities & Efficiency
8. FAQ: Common Questions About FBCDZ-No22 Series Fans
9. Conclusion: Why This Fan is Essential for Modern Mining

Introduction: The Critical Role of Mine Ventilation Fans

In modern underground coal mining, ensuring a safe and breathable environment is non-negotiable. The accumulation of explosive gases like methane (CH₄) and the presence of coal dust create a high-risk atmosphere that demands robust ventilation equipment. Among the most specialized solutions is the FBCDZ-6-No22 Coal Mine Exhaust Explosion-Proof Counter-Rotating Axial Flow Fan. This equipment is not just a fan; it is a life-safety system designed to operate under extreme conditions. This article explores the technical design, operational advantages, and safety mechanisms of this critical machine, integrating insights from engineering literature and industrial applications to provide a comprehensive guide for mining engineers, safety officers, and procurement specialists.

Question: Why is a specialized explosion-proof fan necessary in coal mines? Answer: Standard fans can generate sparks from friction or electrical faults. In a methane-rich environment, any spark can trigger a catastrophic explosion. Explosion-proof fans, like the FBCDZ series, are engineered with spark-resistant materials and sealed motor housings to prevent ignition.

What is the FBCDZ-6-No22 Fan? – Definition & Core Design

The FBCDZ-6-No22 is a specific model within the FBCDZ series of mine ventilation fans. The naming convention provides immediate insight into its features:

• F: Fan (Ventilator)
• B: Explosion-proof (Baozha in Chinese context, universally applied to electrical components)
• C: Counter-rotating (Two impellers rotating in opposite directions)
• D: Motor-driven (Electric motor directly connected)
• Z: Axial flow (Air flows parallel to the shaft)
• 6: Pole count of the motor (Synchronous speed ≈ 1000 RPM at 50Hz)
• No22: Impeller diameter: 22 decimeters (2.2 meters or 2200 mm).

This fan is specifically designated as an exhaust fan, meaning it is installed at the mine outlet to draw contaminated air out of the tunnels. The large 2.2-meter diameter allows for high-volume airflow at relatively low pressure, which is characteristic of axial flow fans.

Explosion-Proof Design Principles for Coal Mine Safety

Explosion-proof (Ex) design is the cornerstone of the FBCDZ series. The fan must ensure that even if an internal ignition occurs—such as a short circuit in the motor or a static discharge—the flame or hot gas cannot escape to ignite the external methane-air mixture.

Key design features include:

• Flameproof Enclosures: The motor housing and junction boxes are built to withstand an internal explosion without rupturing.
• Flame Path Gaps: All joint surfaces (e.g., between motor casing and end covers) are designed with precise, narrow gaps that cool and extinguish hot gases as they travel outward.
• Non-Sparking Materials: The impeller blades and the fan casing are often made of or coated with non-ferrous materials (e.g., aluminum bronze or stainless steel) to prevent friction sparks.
• High Insulation Class: Motors use Class F or H insulation to withstand high temperatures without degrading.

Question: Can the FBCDZ-6-No22 operate continuously in a dusty environment? Answer: Yes. The design includes dust-sealed bearings and cooling systems that prevent coal dust from entering the motor. Regular cleaning of the intake screens is required to maintain efficiency.

The Counter-Rotating Axial Flow Technology: Why Two Rotors?

The defining mechanical feature of the FBCDZ fan is its counter-rotating design. Unlike single-stage fans, this fan has two axial impellers mounted on two separate motors within the same casing, rotating in opposite directions.

Advantages:

• Higher Efficiency: The second rotor recovers the swirl energy from the first rotor and converts it into static pressure. This allows the fan to achieve higher pressure gains without the need for bulky guide vanes.
• Compact Structure: The fan is shorter and more compact than a comparable centrifugal fan, making installation in mine tunnels easier.
• Adjustable Performance: By changing the blade angle of either stage, operators can fine-tune the fan’s performance curve to match ventilation demand.
• Redundancy: If one motor fails (in some configurations), the other can still provide partial ventilation, improving mine safety.

However, this design requires precise synchronization of the two motors to avoid vibration and noise.

Key Technical Specifications & Performance Parameters

While exact numbers vary by manufacturer and specific configuration, the FBCDZ-6-No22 typically operates within these parameters:

• Impeller Diameter: 2200 mm
• Maximum Air Volume: 40 – 65 m³/s (varies with blade angle and speed)
• Total Pressure Range: 1000 – 5000 Pa (adjustable)
• Motor Power: 2 x 110 kW to 2 x 200 kW (dual motors)
• Speed: ~980 RPM (synchronous speed of a 6-pole motor on 50Hz grid)
• Noise Level: ≤ 90 dB(A) (with silencers installed)
• Efficiency: Up to 85% in optimal operating zone.

These parameters make it suitable for long-distance ventilation in large coal mines where both high flow and moderate pressure are required. Energy consumption is a critical factor; in many mines, fans consume 15-30% of total electrical load.

Applications: Where and How This Fan is Deployed

The FBCDZ-6-No22 is predominantly used as a main mine exhaust fan (also called an upcast fan). It is installed at the surface end of the return air shaft. The fan draws foul air out, creating negative pressure that pulls fresh air from the intake shaft through the underground workings.

Typical deployment includes:

• Large Scale Coal Mines: Where ventilation cross-sections exceed 15 m².
• Methane-Rich Seams: In high-gas mines, redundant exhaust capacity is mandatory.
• Dusty Environments: The fan handles air laden with coal dust, requiring robust wear protection on blades.
• Remote Control Systems: Modern installations integrate Variable Frequency Drives (VFDs) and remote monitoring, allowing operators to adjust speed and blade pitch from a control room.

In many jurisdictions, mine regulations require that at least two fans (main and standby) are installed. The FBCDZ series often serves as the primary unit, with a similar or identical unit on standby.

Maintenance Best Practices for Longevity & Efficiency

To ensure the FBCDZ-6-No22 operates reliably, a structured maintenance program is essential:

• Weekly Inspection: Check for abnormal vibration, noise, and temperature of bearings. Measure motor current to detect imbalance.
• Monthly Maintenance: Lubricate bearings per manufacturer schedule (typically 300-500 hours). Clean the intake screen and impeller blades of accumulated dust.
• Quarterly Check: Inspect the blade tip clearance. The gap between blade tips and the casing should be within 1-2% of the blade diameter. Excessive clearance reduces efficiency.
• Annual Overhaul: Remove the fan for bearing replacement, motor insulation testing, and balancing verification. Re-paint or apply anti-corrosion coating.

Question: How often should blade angles be adjusted? Answer: Blade angles should be adjusted only when seasonal changes or mining face progression significantly alters ventilation resistance. Frequent adjustments can wear out blade locking mechanisms.

FAQ: Common Questions About FBCDZ-No22 Series Fans

Q1: What is the lifespan of an FBCDZ-6-No22 fan? A: With proper maintenance, 15-20 years. Bearing and motor replacements may be needed every 5-8 years.

Q2: Can this fan be used as a blower (forcing fresh air in)? A: Yes. While the standard model is designed for exhaust, modifying the blade orientation or reversing the rotation (if motor allows) can force air. However, efficiency is higher in its intended exhaust configuration.

Q3: How does this fan compare to a centrifugal fan? A: Axial fans (like FBCDZ) offer higher volume but lower pressure. Centrifugal fans provide high pressure but lower volume. For mine exhaust where high volume is needed, axial is preferred.

Q4: Is the FBCDZ-6-No22 suitable for use in wind turbine applications? A: No. While the technology (axial flow, counter-rotating blades) shares some principles with wind turbines, the FBCDZ fan is designed for high-density air movement at low speed in confined spaces. A wind turbine is designed for energy extraction from natural wind. They are not interchangeable.

Conclusion: Why This Fan is Essential for Modern Mining

The FBCDZ-6-No22 Coal Mine Exhaust Explosion-Proof Counter-Rotating Axial Flow Fan represents a pinnacle of safety engineering and efficient fluid dynamics for the mining industry. By combining explosion-proof construction with counter-rotating technology, it provides the high-volume, moderate-pressure airflow necessary to dilute explosive gases and remove dust. Its compact design and high efficiency make it a cost-effective choice over its lifespan. For any mining operation prioritizing safety and regulatory compliance, investing in a certified, well-maintained FBCDZ fan is not optional—it is a fundamental requirement. As mining depths increase and methane levels rise, technologies like the FBCDZ series will continue to be the backbone of underground ventilation systems.
