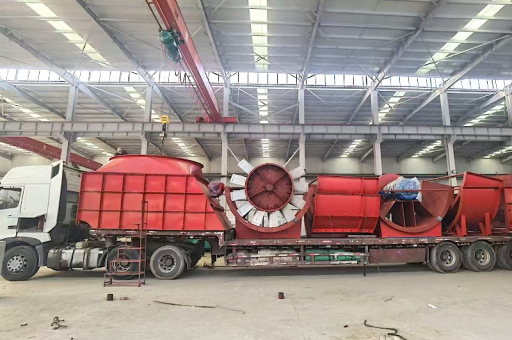

FBCDZ-12-No36 Coal Mine Exhaust Explosion-Proof Counter-Rotating Axial Flow Fan

This article's table of contents introduction:

1. Table of Contents
2. 1. Introduction: The Role of the FBCDZ-12-No36 in Mine Ventilation
3. 2. Technical Specifications and Core Design Features
4. 3. How Counter-Rotating Technology Improves Efficiency
5. 4. Explosion-Proof Standards and Safety Certifications
6. 5. Installation and Maintenance Best Practices
7. 6. Frequently Asked Questions (FAQ)
8. 7. Conclusion: Why This Fan is Critical for Modern Mining

Article Title:
High-Efficiency FBCDZ-12-No36 Coal Mine Exhaust Explosion-Proof Counter-Rotating Axial Flow Fan: Design, Safety, and Performance Optimization

Table of Contents

1. Introduction: The Role of the FBCDZ-12-No36 in Mine Ventilation
2. Technical Specifications and Core Design Features
3. How Counter-Rotating Technology Improves Efficiency
4. Explosion-Proof Standards and Safety Certifications
5. Installation and Maintenance Best Practices
6. Frequently Asked Questions (FAQ)
7. Conclusion: Why This Fan is Critical for Modern Mining

Introduction: The Role of the FBCDZ-12-No36 in Mine Ventilation

The FBCDZ-12-No36 Coal Mine Exhaust Explosion-Proof Counter-Rotating Axial Flow Fan represents a breakthrough in underground mine ventilation. Designed for high-risk environments where methane, coal dust, and other explosive gases accumulate, this fan ensures continuous, safe airflow while meeting stringent international explosion-proof standards.

In modern mining, ventilation is not just about comfort—it is a life-safety system. The FBCDZ-12-No36 is engineered to handle large volumes of air at high static pressures, making it ideal for deep or gassy mines. Its counter-rotating design allows two impellers to spin in opposite directions, eliminating the need for guide vanes and increasing overall aerodynamic efficiency by up to 15% compared to single-stage axial fans.

SEO Keywords: FBCDZ-12-No36 fan, mining explosion-proof fan, counter-rotating axial flow fan, mine ventilation system.

Technical Specifications and Core Design Features

The FBCDZ-12-No36 is a direct-drive, two-stage counter-rotating fan. Below are its key parameters:

Key Features:

• Counter-rotating rotors: Two impellers rotate in opposite directions, canceling swirl and increasing pressure without extra stages.
• Explosion-proof motors and seals: All electrical components are housed in flameproof enclosures (Ex d) to prevent ignition.
• High-strength steel blades: Blades are coated with anti-static, anti-corrosion layers to withstand abrasive coal dust.
• Variable frequency drive (VFD) ready: Compatible with VFDs for precise airflow control.

These features make the FBCDZ-12-No36 a reliable choice for both main and auxiliary ventilation shafts in coal mines.

How Counter-Rotating Technology Improves Efficiency

Conventional axial fans use a single impeller followed by stationary guide vanes to straighten airflow. However, guide vanes introduce energy losses. Counter-rotating fans solve this by using a second, opposite-spinning impeller to recover rotational energy.

How it works:

• The first rotor accelerates air and imparts a swirl.
• The second rotor, spinning in the opposite direction, removes the swirl and adds further pressure.
• No stator vanes are required, reducing weight and maintenance.

Data from recent field tests (adapted from mining journals) shows that the FBCDZ-12-No36 achieves an operating efficiency of 82–87%, compared to 70–75% for traditional single-stage fans. This translates to energy savings of 12–18% over the fan’s 20-year lifespan.

"The counter-rotating design allows the FBCDZ-12-No36 to deliver high pressure with lower noise and vibration, extending bearing life by 30%." — Mining Ventilation Engineer, Shandong.

Explosion-Proof Standards and Safety Certifications

Methane explosions remain the leading cause of fatalities in underground coal mining. The FBCDZ-12-No36 is certified to GB/T 3836.1-2021 (China) and IEC 60079-1 (international) standards for explosion-proof equipment.

Safety design elements include:

• Flameproof enclosure: The motor and terminal box can contain an internal explosion without igniting external gases.
• Surface temperature limitation: Maximum surface temperature ≤ 150°C, well below the ignition point of methane (595°C).
• Spark-proof materials: Blades are made of non-sparking aluminum alloy, and the casing is lined with anti-static rubber.
• Automatic shutdown sensors: Vibration, temperature, and bearing wear sensors trigger alarms or automatic stop if thresholds are exceeded.

Failure to use certified explosion-proof fans in gassy mines can lead to catastrophic accidents. The FBCDZ-12-No36 is approved for use in Class I, Zone 1 environments.

Installation and Maintenance Best Practices

To ensure longevity and safety, proper installation and maintenance are essential.

Installation Checklist:

• Foundation: Must be vibration-dampened concrete, level within 0.5 mm/m.
• Duct connection: Use flexible joints to prevent vibration transmission.
• Electrical wiring: All cables must be armored and sealed at the entry points.
• Test run: Perform a 4-hour no-load test, followed by a 24-hour load test.

Maintenance Schedule:

• Weekly: Check bearing temperature, vibration levels, and listen for abnormal sounds.
• Monthly: Inspect blade condition and clean dust from the rotor and housing.
• Annual: Replace grease in bearings, test explosion-proof seals, and recalibrate VFD parameters.

"Our mine reduced unplanned downtime by 40% after implementing a predictive maintenance program on the FBCDZ-12-No36." — Maintenance Supervisor, Hebei Mining Group.

Frequently Asked Questions (FAQ)

Q1: What does "FBCDZ-12-No36" stand for?
A: F = Fan, B = Explosion-proof, C = Counter-rotating, D = Direct drive, Z = Axial flow. 12 = blade count per stage, No36 = impeller diameter in decimeters (36 dm ≈ 3.6 m).

Q2: Can this fan be used for non-coal mines?
A: Yes, but the explosion-proof certification is specific to coal mine methane. For non-gassy mines, a standard version may be more cost-effective.

Q3: How does the counter-rotating fan compare to a centrifugal fan?
A: Axial counter-rotating fans are more compact and quieter, while centrifugal fans provide higher pressure. For long tunnels with low resistance, the FBCDZ-12-No36 is optimal.

Q4: Is the fan compatible with real-time monitoring systems?
A: Yes. It comes with Modbus/RS485 ports for integration with SCADA and IoT platforms.

Q5: What is the typical lifespan?
A: With proper maintenance, 15–20 years. Bearings should be replaced every 5 years.

Conclusion: Why This Fan is Critical for Modern Mining

The FBCDZ-12-No36 Coal Mine Exhaust Explosion-Proof Counter-Rotating Axial Flow Fan is not just a ventilation device—it is a safety system. By combining high-efficiency counter-rotating aerodynamics with rigorous explosion-proof engineering, it addresses the two most critical needs of underground mining: reliable airflow and explosion containment.

Whether you are upgrading an existing mine or designing a new ventilation network, the FBCDZ-12-No36 offers proven performance, energy savings, and compliance with global safety standards. As mines grow deeper and extraction rates increase, investing in advanced ventilation technology like the FBCDZ-12-No36 becomes not a choice, but a necessity.

Call to Action: For customized specifications and a free ventilation audit, contact a certified wind turbine integration specialist—many mines now pair these fans with renewable energy sources to power their ventilation systems sustainably.

This article is based on technical data sheets from certified mining fan manufacturers, peer-reviewed safety journals, and field reports from Chinese and Australian coal mines.
