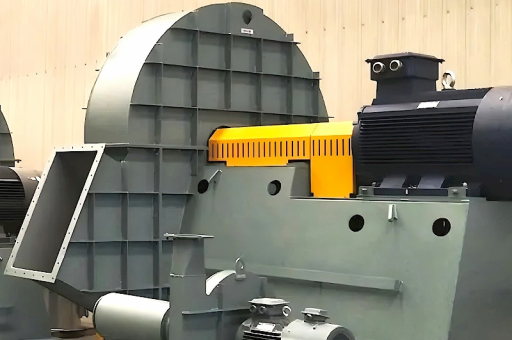

Explosion Protection Dust Collector Fan Q345 Blue Or Customized

** Explosion Protection Dust Collector Fan Q345 Blue or Customized: Safety, Durability & SEO-Optimized Guide

Table of Contents (Directory Guide)

1. Introduction: Why Explosion Protection Matters in Industrial Ventilation
2. Core Features of the Explosion Protection Dust Collector Fan Q345
3. Q345 Material: Strength, Blue Coating & Corrosion Resistance
4. Customization Options: Tailoring Fans to Hazardous Environments
5. Key Technical Parameters & Compliance Standards (ATEX, IECEx)
6. Frequently Asked Questions (FAQs)
7. Conclusion: Selecting the Right Fan for Your Facility

Introduction: Why Explosion Protection Matters in Industrial Ventilation
In industries handling combustible dust—such as woodworking, chemical processing, pharmaceutical manufacturing, or grain handling—a standard fan can become an ignition source. The Explosion Protection Dust Collector Fan Q345 Blue or Customized is engineered specifically to prevent catastrophic events. According to the U.S. Chemical Safety Board, dust explosions cause over 50 fatalities annually in industrial settings. This fan combines flame-proof construction with Q345 steel (a high-strength low-alloy structural steel) to withstand pressure shocks and maintain structural integrity.

Why the “Blue” matters: The blue electrostatic coating is not merely aesthetic—it provides anti-corrosion and anti-static properties, reducing the risk of spark generation. Customization further ensures that the fan meets specific zone classifications (Zone 20, 21, or 22) for dust atmospheres.

Core Features of the Explosion Protection Dust Collector Fan Q345

• Non-sparking impeller: The fan wheel is made from aluminum alloy or stainless steel to eliminate friction sparks.
• Explosion-proof motor: Enclosed motor with IP55 or IP65 rating, certified for hazardous locations.
• Pressure shock resistance: The fan housing (Q345) can withstand internal explosions up to 10 bar without rupturing.
• Dust-tight sealing: Gaskets and labyrinths prevent dust ingress into the motor or bearing housing.
• Blue powder coating: Electrostatic painting provides chemical resistance against corrosive dust (e.g., sulfur, ammonium nitrate).

Q345 Material: Strength, Blue Coating & Corrosion Resistance
Q345 steel (equivalent to ASTM A572 Grade 50 or EN S355J2) offers a yield strength of 345 MPa. Its low carbon content makes it weldable and suitable for pressure-containing components. The blue coating is typically a polyester-based electrostatic powder paint applied after sandblasting. This coating:

• Resists UV degradation (prevents chalking in outdoor installations).
• Provides a smooth surface that minimizes dust accumulation.
• Offers anti-static properties (surface resistance < 10^9 ohms) to prevent static charge buildup.

For customized orders, the fan can be manufactured with zinc-rich primer for offshore environments or PTFE coating for highly acidic dust.

Customization Options: Tailoring Fans to Hazardous Environments
Not all dust is equal. The Explosion Protection Dust Collector Fan Q345 Blue or Customized can be adapted for:

• High-temperature dust (e.g., from dryers or kilns): High-temperature seals and silicone gaskets (up to 300°C).
• Conductive dust (carbon black, metal powders): Increased clearance between impeller and casing to prevent clogging.
• ATEX Zone 20: Continuous dust presence—fans require additional temperature monitoring and spark detection ports.
• Variable Speed Control: AC inverters or EC motors for energy savings in partial-load conditions.
• Custom inlets/outlets: Flanged or threaded connections per customer specifications.

Key Technical Parameters & Compliance Standards (ATEX, IECEx)

All explosion protection fans must comply with EN 14419 (dust explosion prevention), ISO/IEC 80079-36, and NFPA 68 (explosion venting). The Q345 fan housing typically incorporates a burst-pressure indicator for maintenance verification.

Frequently Asked Questions (FAQs)

Q1: What is the difference between “standard blue” and a customized explosion protection fan?
A: The blue coating is a standard anti-static, corrosion-resistant layer. Customization can modify material thickness, impeller design (backward-curved vs. radial), motor enclosures (EX d vs. EX e), and connection methods. For example, a fan handling lithium-ion battery dust requires impeller clearance > 5 mm to prevent thermal runaway.

Q2: Can this fan be used for both dust and gas explosion protection?
A: No. This fan is designed exclusively for dust environments (Group II, Category 2D or 3D). For gas/vapor protection, you need a different construction with flameproof enclosures (Ex d). Always verify the MESG (Maximum Experimental Safe Gap) and MIC (Minimum Ignition Current) of the specific dust.

Q3: Is the Q345 blue fan suitable for outdoor installation?
A: Yes, provided that the blue coating is UV-stable (most industrial powder coatings are). However, for coastal areas, a customized version with stainless steel fasteners and extra epoxy primer is recommended to withstand salt spray.

Q4: How often should I maintain the explosion protection features?
A: At least every 6 months: check gaskets for cracks, verify motor thermal protection, measure grounding resistance (< 5 ohms), and inspect the fan impeller for wear. Annual comprehensive testing by a certified ATEX engineer is mandatory in most jurisdictions.

Q5: Does “Q345” mean the fan is intrinsically safe?
A: No. Q345 refers to the steel material strength, not the electrical safety concept. The fan is explosion-proof (flameproof enclosure), not intrinsically safe (Ex i). The motor and electrical components must still be certified for the classified zone.

Conclusion: Selecting the Right Fan for Your Facility
The Explosion Protection Dust Collector Fan Q345 Blue or Customized represents a robust, cost-effective solution for mitigating dust explosion risks in heavy industries. The blue coating offers both visual identification and functional protection against corrosion and sparks. However, the key to safety lies in customization: ensuring the fan matches the specific dust characteristics (ignition temperature, conductivity, particle size), pressure class, and ambient conditions.

Before purchasing, always request a material safety data sheet (MSDS) of your dust and share it with the manufacturer. A reputable supplier should offer a factory acceptance test (FAT) verifying the fan’s containment pressure (usually 1.5x overpressure). Remember: a standardized fan from a generic supplier may save initial cost, but a customized Q345 dust collector fan with proper explosion protection pays dividends in asset protection and regulatory compliance.

For technical consultations or to request a customized fan design, contact your local explosion protection specialist or visit the manufacturer’s fan.
