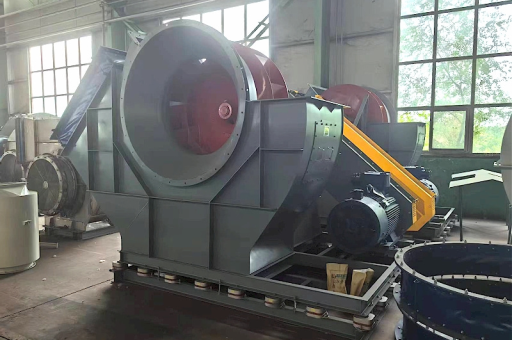

Carbon Steel Forced Draft Centrifugal 22kw Boiler Fan

This article's table of contents introduction:

1. What the Specification Means
2. Common Applications for a 22kW FD Fan
3. Key Features to Look For
4. Example Model Numbers (Generic)
5. Sourcing & Cost Estimate
6. Critical Warning for Purchase

Based on your query, it sounds like you are looking for a Carbon Steel Forced Draft Centrifugal Fan suitable for a boiler application, powered by a 22kW motor.

Here is a detailed breakdown of what that specification means, common applications, and what to look for when sourcing one.

What the Specification Means

1. Carbon Steel (Material):

   • The impeller (wheel) and housing (scroll) are made from standard carbon steel (e.g., Q235 or A36).
   • Implication: This is standard for clean air or flue gas at moderate temperatures (typically up to 250°C). For higher temperatures (e.g., 300°C+), you would need Corten steel or alloy steel, not standard carbon steel.

2. Forced Draft (FD):

   • This fan is located on the inlet side of the boiler.
   • It pushes ambient air into the combustion chamber (furnace).
   • Key requirement: FD fans do not handle hot, dusty, or corrosive gases (that is the ID fan's job). They handle clean, ambient air.

3. Centrifugal:

   • Uses a rotating impeller to increase air velocity and create pressure.
   • Ideal for overcoming resistance in the windbox, burner, and boiler tubes.

4. 22kW (Motor Power):

   • This is the required motor size.
   • Performance estimate (Typical): For a 22kW motor, you can expect roughly:
     • Airflow: 15,000 – 30,000 m³/h (depending on pressure).
     • Pressure: 2,500 – 4,500 Pa (250 – 450 mmH₂O).

Common Applications for a 22kW FD Fan

• Industrial Steam Boilers: (e.g., 4-ton to 6-ton per hour coal/biomass boilers).
• Thermal Oil Heaters: For pressurizing the burner.
• Industrial Air Supply: Blast furnaces or forge applications.
• Large HVAC: Rare, but possible for large commercial air handling.

Key Features to Look For

When purchasing a "Carbon Steel Forced Draft Centrifugal 22kw Boiler Fan", ensure the vendor specifies:

1. Impeller Type:

   • Forward Curve: High volume, lower pressure. Common for boilers.
   • Backward Curve: High pressure, higher efficiency, lower noise. Better for high-resistance systems.
   • Radial Blades: For dirty/particulate air (not standard for FD, but possible for coal boilers).

2. Vibration & Balance:

   • Must be Dynamically Balanced (ISO 1940 G6.3 or G2.5 standard).
   • High vibration will destroy the fan bearings and motor quickly.

3. Bearings:

   • Must be heavy-duty, self-aligning, grease-lubricated ball or roller bearings.
   • Look for anti-vibration mounts (spring or rubber) between the base and the fan.

4. Temperature Rating:

   • Standard carbon steel is fine for -20°C to +80°C inlet air.
   • If the fan is located near the boiler radiation, you may need a heat shroud or cooling wheel.

5. Drive System:

   • Direct Drive (D-Drive): Motor mounted directly to fan shaft. More efficient, less maintenance.
   • Belt Drive (C-Drive): Allows speed changes (and thus airflow changes) by changing pulleys. 22kW is on the edge; belt drive is common for this size.

Example Model Numbers (Generic)

Common Chinese standard models that match this spec:

• 9-19 Series: High pressure. (Often 21kW motor is standard, but 22kW is custom). Suitable for high-resistance coal boilers.
• 4-72 Series: Medium pressure, high volume. (Standard motor for 10C or 12C size).
• Y5-47 Series: Specifically for boilers (usually ID, but some are FD).

Sourcing & Cost Estimate

• New (China market): A 22kW carbon steel FD fan (complete with motor, base, and inlet box) typically costs $1,500 - $3,500 USD (FOB price, depending on brand and casing thickness).
• Used/Reconditioned: $800 - $1,500 USD.

Critical Warning for Purchase

Do not buy any fan without first verifying:

1. Air Volume (m³/h or CFM): The motor size is useless without knowing the required airflow.
2. Static Pressure (Pa or in.wg): The fan must overcome the boiler's resistance.
3. Temperature: If the fan is in a hot boiler room (>80°C), you need a heat break or higher-rated motor.

Example of a correct specification request:

"I need a carbon steel forced draft centrifugal boiler fan. Required: 20,000 m³/h at 3,000 Pa static pressure, 22kW motor, 1450 RPM, 380V/50Hz, temperature 60°C maximum."

If you can provide the required Airflow and Pressure, I can give you a precise model recommendation (e.g., 9-26 No. 12.5D or 4-72 No. 12C).
