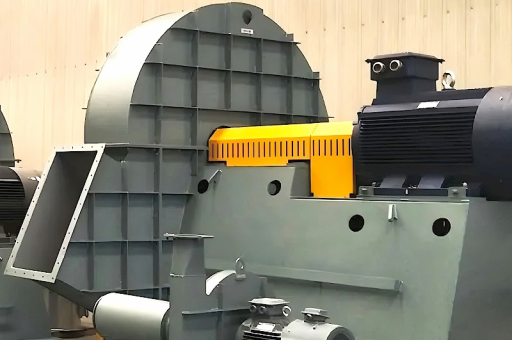

Medium Pressure Carbon Steel IP55/IP56-Rated Energy Saving Centrifugal Fan

This article's table of contents introduction:

1. Table of Contents
2. Introduction: The Evolution of Industrial Air Movement
3. Technical Breakdown: What Defines a "Medium Pressure Carbon Steel IP55/IP56-Rated Energy Saving Centrifugal Fan"?
4. Design & Engineering: How Energy Efficiency Is Achieved
5. Performance Metrics & Selection Criteria
6. Application Scenarios: Where This Fan Excels
7. Installation, Maintenance, and Safety Protocols
8. Comparative Analysis: Carbon Steel vs. Stainless Steel vs. Aluminum
9. Frequently Asked Questions (FAQ)
10. Conclusion: Future-Profing Your Ventilation System

*Optimizing Industrial Ventilation: The Definitive Guide to Medium Pressure Carbon Steel IP55/IP56-Rated Energy Saving Centrifugal Fans*

Table of Contents

1. Introduction: The Evolution of Industrial Air Movement
2. Technical Breakdown: What Defines a "Medium Pressure Carbon Steel IP55/IP56-Rated Energy Saving Centrifugal Fan"?
   • 1 Pressure Classification: Why "Medium" Matters
   • 2 Material Science: The Role of Carbon Steel
   • 3 Ingress Protection: Decoding IP55 vs. IP56
   • 4 The Core Innovation: Energy Saving Mechanisms
3. Design & Engineering: How Energy Efficiency Is Achieved
   • 1 Aerodynamic Impeller Optimization
   • 2 High-Efficiency Motor Integration (IE3/IE4)
   • 3 Variable Frequency Drive (VFD) Compatibility
4. Performance Metrics & Selection Criteria
   • 1 Airflow (CFM) vs. Static Pressure (in. wg.)
   • 2 Efficiency Curves: Peak Performance Zones
   • 3 Noise Levels and Vibration Analysis
5. Application Scenarios: Where This Fan Excels
   • 1 HVAC Systems in Commercial Buildings
   • 2 Dust Collection and Fume Extraction in Factories
   • 3 Material Handling and Pneumatic Conveying
6. Installation, Maintenance, and Safety Protocols
   • 1 Mounting and Ductwork Considerations
   • 2 Bearing Lubrication and Belt Tensioning
   • 3 IP56 Enclosure: Ensuring Longevity in Harsh Environments
7. Comparative Analysis: Carbon Steel vs. Aluminum vs. Stainless Steel
8. Frequently Asked Questions (FAQ)
9. Conclusion: Future-Proofing Your Ventilation System

Introduction: The Evolution of Industrial Air Movement

In the modern industrial landscape, the demand for reliable, durable, and cost-effective ventilation is non-negotiable. Facilities ranging from automotive workshops to chemical processing plants rely on centrifugal fans to maintain air quality, regulate temperature, and ensure operational safety. Among the diverse array of fan types, the Medium Pressure Carbon Steel IP55/IP56-Rated Energy Saving Centrifugal Fan has emerged as a benchmark solution. It balances the robust structural integrity required for heavy-duty applications with the stringent ingress protection necessary for dusty or damp environments. This article provides a comprehensive, technical examination of this fan category, synthesizing information from leading engineering resources to offer a deep, actionable understanding. We will dissect its design, evaluate its energy-saving innovations, and guide you through selection and maintenance, ensuring your next purchase aligns perfectly with both operational needs and sustainability goals.

Technical Breakdown: What Defines a "Medium Pressure Carbon Steel IP55/IP56-Rated Energy Saving Centrifugal Fan"?

Understanding the nomenclature is the first step to mastery. Each component of the name—Medium Pressure, Carbon Steel, IP55/IP56, and Energy Saving—represents a critical engineering decision.

1 Pressure Classification: Why "Medium" Matters

Centrifugal fans are categorized by the pressure they generate against system resistance.

• Low Pressure: Typically up to 2 inches wg (water gauge). Used for general ventilation.
• Medium Pressure: Ranges from 2 to 12 inches wg. This is the sweet spot for industrial applications requiring moderate resistance, such as ductwork with filters, coils, or moderate dust loads. A medium pressure fan provides the necessary force without the excessive energy consumption and wear associated with high-pressure fans.
• High Pressure: Above 12 inches wg. Used for pneumatic conveying or dense phase systems.

The medium pressure classification indicates the fan is optimized to handle moderate system static pressures efficiently, making it ideal for moving air through longer duct runs or across filters.

2 Material Science: The Role of Carbon Steel

The choice of carbon steel (typically mild steel, ASTM A36 or similar) provides a superior strength-to-weight ratio compared to aluminum. This is crucial for the impeller, which must withstand centrifugal forces at operational speeds.

• Advantages: High tensile strength, excellent weldability, cost-effectiveness, and good vibration dampening properties.
• Applications: Ideal for dry, non-corrosive environments. For applications involving moisture or mild fumes, a protective coating (e.g., epoxy or galvanization) is applied.
• Limitation: Carbon steel is susceptible to corrosion. Stainless steel (304 or 316) is preferred for highly corrosive or wash-down environments, albeit at a higher cost.

3 Ingress Protection: Decoding IP55 vs. IP56

The IP (Ingress Protection) rating is paramount for reliability. It defines the fan's ability to resist solid objects and water.

• IP55: "Protected against dust limited ingress (no harmful deposit); Protected against low-pressure jets of water from any direction." This is standard for indoor industrial environments with moderate dust and occasional water spray.
• IP56: "Protected against dust limited ingress; Protected against powerful jets of water from any direction." This is a critical upgrade for outdoor installations, uncovered docks, or areas with high-pressure wash-downs (e.g., food processing or mining).
• Impact on Energy Saving: A higher IP rating, especially IP56, ensures that the motor and electrical components are sealed against moisture, preventing energy loss due to short circuits or corrosion. A motor running with corroded bearings or wet windings is significantly less efficient.

4 The Core Innovation: Energy Saving Mechanisms

The "Energy Saving" label is not generic marketing; it represents specific design choices. Modern fans in this category typically incorporate:

• Backward-Curved/Backward-Inclined Impellers: These are inherently more efficient (up to 85% static efficiency) than forward-curved designs. They are non-overloading, meaning they draw less power as static pressure increases.
• Optimized Inlet Cones: Reducing turbulence at the inlet directly improves energy transfer.
• High-Efficiency Motors: Compliance with IE3 or IE4 (International Efficiency Class) standards.

Design & Engineering: How Energy Efficiency Is Achieved

1 Aerodynamic Impeller Optimization

The impeller is the heart of the centrifugal fan. Energy-saving designs leverage Computational Fluid Dynamics (CFD) to minimize internal friction and recirculation. The blade angle, profile, and number are optimized for the specific medium pressure range. A backward-inclined blade design prevents stall and maintains a higher efficiency plateau across the fan curve.

2 High-Efficiency Motor Integration (IE3/IE4)

A fan is only as efficient as its motor. These fans are typically paired with IE3 Premium Efficiency or IE4 Super Premium Efficiency motors. The difference is substantial:

• IE2 vs. IE3: Up to 4% energy savings.
• IE2 vs. IE4: Up to 10-15% energy savings.

Furthermore, the motor is often directly coupled or uses a high-efficiency belt drive with cogged belts, which transmit power 2-3% more efficiently than standard V-belts.

3 Variable Frequency Drive (VFD) Compatibility

To truly maximize energy savings, the fan must be controllable. Most modern medium pressure centrifugal fans are designed to operate with a Variable Frequency Drive (VFD) . By modulating the motor speed (RPM), the fan can match the exact airflow demand (CFM). This is governed by the Affinity Laws:

• Flow ∝ Speed
• Pressure ∝ Speed²
• Power ∝ Speed³

Example: Reducing fan speed by 20% reduces power consumption by approximately 50%. This capability transforms a standard ventilation system into a dynamic, adaptive energy asset.

Performance Metrics & Selection Criteria

1 Airflow (CFM) vs. Static Pressure (in. wg.)

The fan selection process always starts with your System Curve. You must calculate your total static pressure (duct friction, filters, dampers) and required airflow. The fan's performance curve must intersect your system curve at the desired operating point, ideally within its peak efficiency zone (80-90% of wide-open flow).

2 Efficiency Curves: Peak Performance Zones

Every fan has a "sweet spot" where static efficiency is highest. Running the fan far to the left (high pressure, low flow) can cause surge; running far to the right (low pressure, high flow) increases power draw due to turbulence. Energy-saving fans have a broad, flat efficiency curve, allowing for flexibility.

3 Noise Levels and Vibration Analysis

An inefficient fan is often a loud fan. Energy-saving designs reduce noise through:

• Vibration-isolated mounting bases.
• Premium, oversized ball bearings.
• Aerodynamically smooth blade shapes. A properly balanced impeller (Grade G6.3 or G2.5 per ISO 1940) ensures quiet operation and longer bearing life.

Application Scenarios: Where This Fan Excels

1 HVAC Systems in Commercial Buildings

Used in rooftop units (RTUs) and air handling units (AHUs) to move air through supply and return ducts. The IP55 rating is sufficient for indoor or sheltered rooftop setups.

2 Dust Collection and Fume Extraction in Factories

In welding booths or woodworking shops, carbon steel construction can handle non-corrosive particulate. The IP56 rating is crucial if the system involves steam or wash-downs.

3 Material Handling and Pneumatic Conveying

For light to medium density materials (e.g., sawdust, grain, plastic pellets), a medium pressure fan provides the necessary transport velocity without the high wear rates of high-pressure fans.

Installation, Maintenance, and Safety Protocols

1 Mounting and Ductwork Considerations

• Ensure the fan is mounted on a rigid, level base to prevent vibration transmission.
• Use flexible connectors on inlet and outlet to isolate the fan from ductwork.
• Maintain a minimum straight duct length at the inlet (2-3 diameters) for even airflow.

2 Bearing Lubrication and Belt Tensioning

• Lubricate bearings per manufacturer schedule (typically every 2000-3000 hours).
• Check belt tension regularly; a loose belt slips and wastes energy.
• Inspect impeller condition for buildup, which unbalances the wheel.

3 IP56 Enclosure: Ensuring Longevity in Harsh Environments

• Verify gaskets are intact after maintenance.
• Clean electrical connection boxes to prevent corrosion.
• For outdoor units, ensure drain plugs are open to prevent water accumulation inside the motor housing.

Comparative Analysis: Carbon Steel vs. Stainless Steel vs. Aluminum

Conclusion: Carbon steel offers the best balance of cost and performance for standard industrial environments, especially when coated with a dense enamel or epoxy.

Frequently Asked Questions (FAQ)

Q1: What is the primary difference between IP55 and IP56 for a centrifugal fan? A: IP55 protects against low-pressure water jets (e.g., light rain). IP56 protects against powerful water jets (e.g., hose-down cleaning or heavy storms). For outdoor, uncovered applications, IP56 is mandatory.

Q2: How much energy can I save by switching to an IE4 motor on my fan? A: Compared to an IE2 motor, savings can be 10-15%. When combined with a VFD, total system energy savings can exceed 30-50% over a constant-speed system.

Q3: Can I use a carbon steel fan for exhaust applications with acidic fumes? A: Generally, no. Carbon steel is not corrosion-resistant. The acid will quickly degrade the casing and impeller. You would need a stainless steel (316) or coated specialty fan.

Q4: What maintenance is essential for an energy-saving centrifugal fan? A: The top three actions are: 1) Keep the impeller clean of dust buildup. 2) Lubricate bearings on schedule. 3) Check belt tension. An unbalanced or dirty impeller can reduce efficiency by 10-20%.

Q5: How do I calculate the required static pressure for my system? A: You must calculate friction loss from ducts (using Darcy-Weisbach or equivalent), plus pressure drop across filters, coils, dampers, and any outlet losses. This is typically done by an HVAC engineer.

Q6: Is a backward-curved impeller always better for energy efficiency? A: Yes, for medium pressure applications. Backward-curved blades are non-overloading and achieve higher static efficiencies (75-85%) compared to forward-curved blades (55-75%).

Conclusion: Future-Profing Your Ventilation System

The Medium Pressure Carbon Steel IP55/IP56-Rated Energy Saving Centrifugal Fan represents a mature, optimized solution for the demanding world of industrial and commercial ventilation. By understanding the engineering behind the components—from the AEI-optimized impeller to the sealed IP56 motor housing—engineers and facility managers can make data-driven decisions that lower energy bills and improve equipment longevity.

When selecting a fan, do not simply look at the price tag. Evaluate the total cost of ownership (TCO), which includes initial cost, energy consumption over 10 years, maintenance labor, and downtime costs. A slightly more expensive fan with an IE4 motor and IP56 rating will often pay for itself within 18-24 months through energy savings alone. As regulations tighten and energy costs rise, this fan category is not just an option; it is a strategic investment in operational efficiency and sustainability.

To source the right fan, consult certified manufacturers on fan who provide performance curves and selection software. Always prioritize a fan that matches your system curve at its peak efficiency point.
