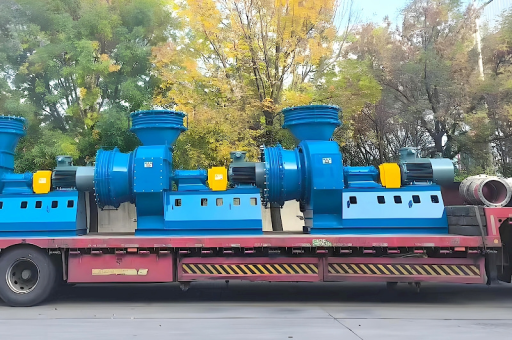

Double Suction 200kw Industrial Induced Draft Fan Blower 7-41 Series

This article's table of contents introduction:

1. What is a 7-41 Series Fan?
2. Double Suction (Double Inlet) - Why 200kW?
3. Key Applications (Induced Draft)
4. Typical Construction Materials for 7-41 Series
5. Critical Considerations for a 200kW ID Fan
6. Summary Table (Typical 7-41-1 200kW DWDI)
7. Next Steps

It sounds like you are referencing a specific model of industrial fan: the 7-41 Series Double Suction Induced Draft Fan, likely with a power rating around 200 kW.

Here is a breakdown of what this specification means, along with key technical details and application notes for this type of equipment.

What is a 7-41 Series Fan?

The 7-41 designation is a standard Chinese industrial fan classification (often based on models from the former Soviet Union or early Chinese standards like those from Shenyang Blower Works). It is characterized by:

• 7: The fan's specific speed (a dimensionless number indicating the fan's aerodynamic design and performance curve shape). This generally indicates a medium-pressure, medium-flow design.
• 41: The impeller diameter ratio or a specific design iteration within that series.

This series is widely used for induced draft (ID) applications in boilers, furnaces, and industrial exhaust systems.

Double Suction (Double Inlet) - Why 200kW?

The "Double Suction" (also called Double Width, Double Inlet - DWDI) design means air enters the impeller from both sides.

• Advantage: This allows the fan to handle roughly double the airflow of a single suction fan of the same diameter, while maintaining the same bearing loads and shaft stress. It is significantly more efficient in terms of floor space and structural weight for high-volume applications.
• 200kW Motor: A 200kW motor (typically 250 HP or 300 HP) suggests this is a very large industrial fan. The actual power required depends on:
  • Airflow (m³/hr or CFM): Likely in the range of 150,000 to 300,000 m³/hr (depending on pressure).
  • Pressure (mmH₂O or Pa): Likely in the range of 2,500 to 4,000 Pa (250-400 mmH₂O).
  • Efficiency: Usually around 75-82% for this series.

Key Applications (Induced Draft)

This fan is specifically designed to pull hot, dusty, or corrosive gases through a system.

1. Power Plants & Industrial Boilers: Pulling flue gas from a coal, biomass, or oil-fired boiler to the chimney.
2. Cement Industry: Exhausting gas from kilns, preheaters, and coolers.
3. Steel Mills: Fume extraction from furnaces and converters.
4. Chemical Processing: Handling corrosive fumes (with appropriate material construction).

Typical Construction Materials for 7-41 Series

Given the 200kW size and induced draft duty, construction is heavy-duty:

• Impeller: Hightensile steel plates (Q345 or Q355), often with wear-resistant liners and/or stainless steel for high-temperature or corrosive gases.
• Casing: Heavy steel plate (8-12mm thick) with reinforcing ribs. Double suction volute design.
• Shaft: Large diameter forged steel, heat-treated.
• Bearing Assembly: Rolling element bearings housed in separate, water-cooled (often) pedestals for high-temperature applications. Bearing temperature monitoring is standard.
• Inlet Boxes: The dual inlets connect to the ductwork and require careful alignment.

Critical Considerations for a 200kW ID Fan

If you are working with or procuring this fan, pay attention to these details:

1. Temperature Rating:
   • Standard: 70°C (158°F)
   • Hot Gas: 150°C to 250°C (300°F - 480°F) - Requires special bearing cooling, shaft cooling fans, and expansion joints.
   • High Temp: >250°C requires alloy steels (e.g., 304L, 316L or Hastelloy) and special shaft sealing to prevent heat transfer to bearings.
2. Vibration & Balance:
   • A 200kW rotating assembly is massive. The fan must be balanced to ISO G6.3 or G2.5 grade.
   • Vibration sensors (proximity probes or accelerometers) are highly recommended on bearing housings for continuous monitoring.
3. Speed:
   • Likely runs at 980 RPM or 1450 RPM (depending on 4-pole or 6-pole motor).
   • You may need a variable frequency drive (VFD) for efficient flow control (avoiding damper throttling which wastes energy).
4. Dust/Loading:
   • Induced draft fans handle dirty gases. An impeller with radial-tip or backward-curved blades is preferred to minimize dust buildup and erosion.
   • Cleaning/ wear plate access doors are essential.

Summary Table (Typical 7-41-1 200kW DWDI)
