Q345 Coupling Driving Centrifugal Flow Fan Anti Explosion Furnace

This article's table of contents introduction:

1. The Component Breakdown
2. The Potential Conflict (Critical)
3. Typical Specifications for This Fan
4. Summary for Your Inquiry

It appears you are listing specifications or requirements for a specific type of industrial fan. Let's break down the terms you've provided to clarify the product you are describing, as they combine material, mechanical component, fan type, safety feature, and application.

Here is the interpretation and a technical overview:

The Component Breakdown

• Q345: This is a Chinese standard (GB/T) low-alloy high-strength structural steel (similar to ASTM A572 Gr.50 or S355JR). It indicates the material used for the fan impeller (wheel) and housing. Q345 offers good strength, toughness, and weldability at a lower cost than stainless steel.

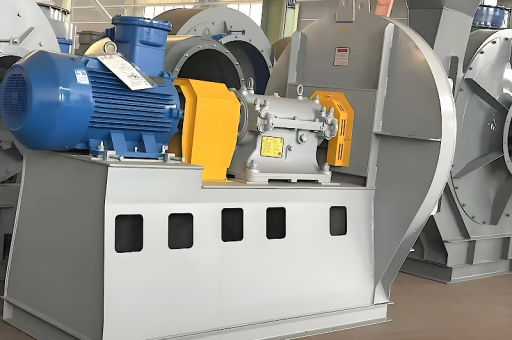

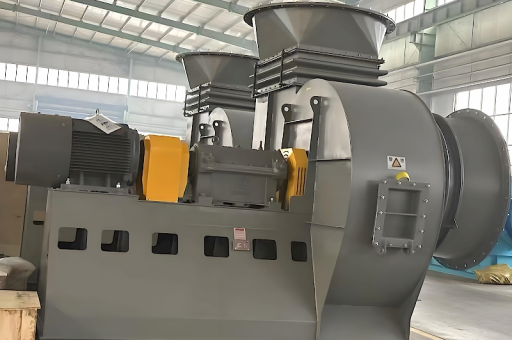

• Coupling Driving: This describes the drive arrangement.
  • Direct Drive (Coupling): The fan wheel is mounted on a shaft connected to the motor via a flexible coupling (e.g., tire-type, grid, or Lovejoy).
  • Why use it? Allows the motor and fan to be separated for maintenance, isolates vibration slightly, and allows the motor to be placed outside the airstream (critical for explosion-proof applications).
• Centrifugal Flow Fan: This is the fan type (as opposed to axial flow). Air enters axially and is discharged radially.
  • Backward Inclined / Airfoil: Typically used for clean air high-efficiency systems.
  • Forward Curved: High volume, lower pressure (like in HVAC).
  • Radial (Paddlewheel): Often used for harsh or particulate-laden air (common in furnaces / anti-explosion).
• Anti Explosion: This is the safety design standard.
  • Material Sparking: The fan impeller is often made of aluminum or non-ferrous materials (like LM6 aluminum alloy), or the Q345 steel is coated or covered with a non-sparking layer.
  • Construction: The fan housing is designed to contain an internal explosion without rupturing (per ATEX, IECEx, or NFPA 69 standards).
  • Grounding: Shaft grounding rings and spark-resistant seals are used.
  • Motor: Must be an explosion-proof (Ex) motor with appropriate gas/dust group rating.
• Furnace: The application. This fan is designed to move combustion air (FD Fan - Forced Draft) or exhaust flue gases (ID Fan - Induced Draft) for a furnace, boiler, or kiln.

The Potential Conflict (Critical)

You must verify the impeller material.

• Q345 Steel + Anti-Explosion = Potential Safety Risk.
• The Problem: Steel (like Q345) can create sparks if it strikes the steel housing or if debris enters the fan. This is a primary ignition source for flammable gases/dusts (methane, natural gas, coal dust, solvents).
• The Solution: True explosion-proof centrifugal fans do not use a steel-on-steel impeller.
  • The impeller is typically aluminum alloy (e.g., 5083, 6061).
  • Or the Q345 impeller is completely lined or coated with a non-ferrous material (e.g., Inconel, Monel, or thick rubber lining), though this is rare for high-temp furnace applications.
  • Alternative: The Q345 impeller is rated ATEX Category 3 (for Zone 2/22) with a very small gap or a "spark-resistant" design using a sacrificial abradable seal ring (e.g., labyrinth seal with aluminum insert).

If your specification says "Q345 + Anti-Explosion," ask the manufacturer for the ATEX/IECEx certificate to confirm the specific protection method.

Typical Specifications for This Fan

If you are sourcing this fan, you likely need the following parameters:

Summary for Your Inquiry

You are describing a heavy-duty industrial centrifugal fan made from Q345 steel, driven by a motor via a flexible coupling, designed for explosion-proof operation in a furnace environment.

Final Check: Ask the supplier:

1. "Is the impeller made of Q345 steel or a non-sparking material (aluminum)?
2. "Does this fan have a valid ATEX or IECEx certificate for Gas Group IIA/IIB (e.g., natural gas, propane) or Dust Group (coal dust)?
3. "Is the motor explosion-proof, and does it match the fan's certificate?"

If you need a specific sub-specification (e.g., pressure, volume, temperature) or a drawing, please provide those details.
