This article's table of contents introduction:
- 50Hz / 60Hz (Frequency Compatibility)
- Centrifugal Flow Fan (The Type)
- Protection Level: IP55 / IP56
- Typical Applications for this Fan
- Key Questions Before Ordering
This is a specification for a Centrifugal Flow Fan designed for industrial or commercial applications where high airflow against resistance (static pressure) is needed, and the environment requires protection from water and dust.
Here is a breakdown of what these specifications mean and typical applications.

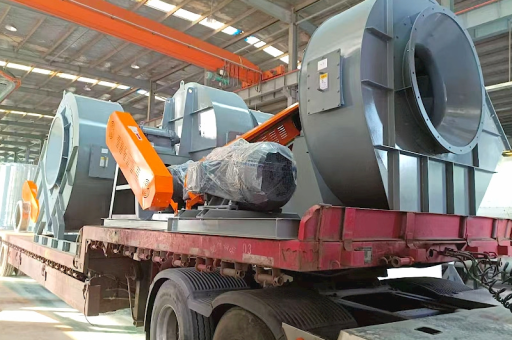

50Hz / 60Hz (Frequency Compatibility)
- Meaning: The electric motor driving the fan is designed to operate on both of the world's standard electrical grid frequencies (50Hz in Europe/Asia, 60Hz in the Americas).
- Performance Impact:
- 60Hz operation will make the fan spin 20% faster than at 50Hz.
- This results in higher airflow (CFM), higher static pressure (Pa), but also higher power consumption (W) and noise (dBA).
- Crucial: Ensure the motor's voltage matches your supply (e.g., 220-240V for 50Hz, 110-120V or 208-240V for 60Hz) or that it has a dual-voltage winding.

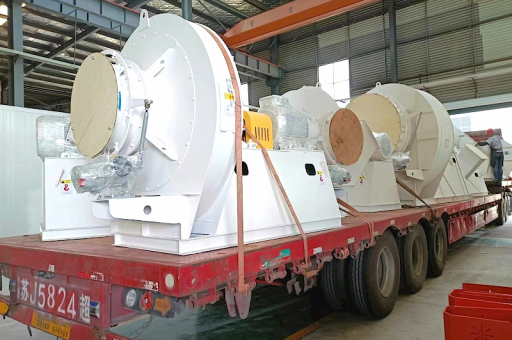

Centrifugal Flow Fan (The Type)

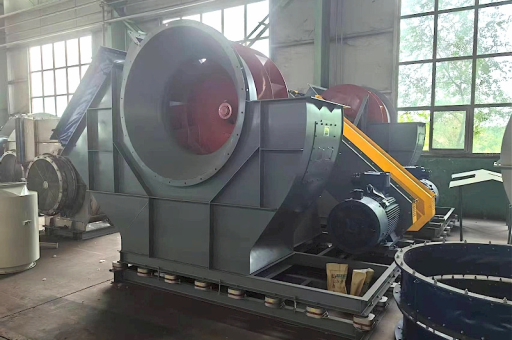

- How it works: Air enters the center (eye) of the fan wheel and is forced outward radially by rotating blades. The air is then collected in a scroll housing and discharged at a 90-degree angle to the inlet.
- Best Use:
- High Static Pressure: Pushing air through ductwork, filters, heat exchangers, or long runs of pipe.
- Ducted Systems: Inlet and/or outlet connected to ducts.
- Grain/Fume Handling: More robust than axial fans.
Protection Level: IP55 / IP56
This is the most critical specification for the environment.
| Feature | IP55 | IP56 |
|---|---|---|
| Ingress Symbol | IP | IP |
| Solid (1st digit: 5) | Dust-Protected – Some dust ingress allowed, but not enough to interfere with operation. (Not fully dust-tight like IP6X). | Dust-Protected – Same as IP55. |
| Liquid (2nd digit: 5 & 6) | Water Jets – Protected against low-pressure water jets (6.3mm nozzle) from any direction. (Washdown from a hose). | Powerful Water Jets – Protected against high-pressure water jets (12.5mm nozzle) from any direction. (Heavy hose-down, ship decks, sea spray). |
| Immersion | No – Not designed for immersion. | No – Not designed for continuous immersion. |
| Key Difference | Suitable for outdoor rain and gentle washdown. | Suitable for heavy, high-pressure washdown and marine environments. |
Typical Applications for this Fan
- HVAC: Exhaust systems, duct boosters, and commercial kitchen ventilation (grease/steam).
- Industrial: Dust collection, welding fume extraction, drying ovens, and air cooling for machinery.
- Agriculture: Ventilation of livestock buildings (poultry/swine where high cleanliness is needed – IP56 is common for washing).
- Marine/Offshore: Engine room ventilation, bilge ventilation (IP56 standard).
- Food Processing: Washdown areas where equipment is hosed down with sanitizer or hot water (IP56 required).
Key Questions Before Ordering
- Duct Size: Inlet/Outlet diameter (e.g., 100mm, 150mm, 200mm)?
- Airflow: Required Cubic Feet per Minute (CFM) or Cubic Meters per Hour (m³/h)?
- Static Pressure: How much resistance (duct length, filters, elbows) must the fan overcome? (Measured in Pa or inches of water gauge).
- Voltage: Which voltage setting will you use (e.g., 230V/50Hz or 208V/60Hz)?
- Ambient Temperature: The motor and fan rating (e.g., -20°C to +60°C).
- Material: Is standard steel/painted steel okay, or do you need Stainless Steel (304/316) for corrosive or salty environments?
Summary: This is a rugged, medium-duty fan suitable for environments where moisture, dust, or washdowns are a concern. The IP56 variant is notably more robust for frequent cleaning or marine use.
