The query "9-19 Belt Drive Flexible Adjustable Industrial Centrifugal Fan Blower" refers to a specific type of heavy-duty industrial fan.
Here is a breakdown of what this description means, its common applications, and key features.
What is a 9-19 Centrifugal Fan?
The "9-19" is a model designation from a standard Chinese industrial fan classification (often following the JB/T standards or similar). It describes a specific aerodynamic design.
- 9: Refers to the impeller diameter ratio or a specific design series (high pressure, medium flow).
- 19: Refers to the blade exit angle and specific speed, identifying it as a forward-curved or radial-tip blade design optimized for high static pressure.
Key Characteristic: The 9-19 fan is known for generating very high air pressure (static pressure), making it suitable for moving air through restrictive systems like long ductwork, baghouse filters, or pneumatic conveying lines. It is not a high-volume, low-pressure fan (like a vane-axial).
Breakdown of the Description
- 9-19: The specific fan model (high-pressure centrifugal).
- Belt Drive:
- How it works: The motor is mounted externally (usually on a slide rail). Power is transmitted via pulleys and V-belts to the fan shaft.
- Advantage: Allows for quick speed changes (by changing pulley sizes) to adjust airflow and pressure. The motor is protected from heat and dust.
- Flexible & Adjustable:
- Speed Adjustment: By changing the belt drive pulleys, the fan's RPM can be easily increased or decreased.
- Flow Control: Often combined with an inlet volume control damper or variable frequency drive (VFD) on the motor.
- Mounting: The discharge orientation (top horizontal, top vertical, bottom, etc.) can often be rotated at the factory or site.
- Industrial Centrifugal Fan Blower:
- Construction: Heavy-duty welded steel housing, cast iron or steel impellers (often with wear liners for abrasive materials).
- Performance: High static pressure (e.g., 20-70 inches of water column), moderate airflow (e.g., 500 - 50,000 CFM depending on size).
Common Applications
Because of its high-pressure capability and robust construction, the 9-19 fan is used in demanding environments:
- Dust Collection Systems: Moving air through high-resistance baghouses or cartridge filters.
- Pneumatic Conveying: Conveying powders, pellets, or granular materials (e.g., cement, grain, plastics).

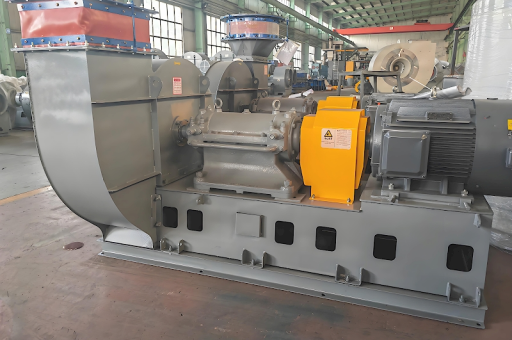

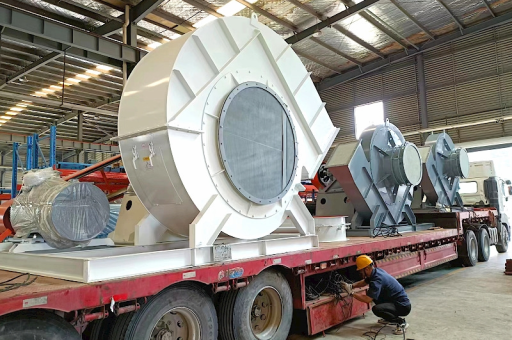

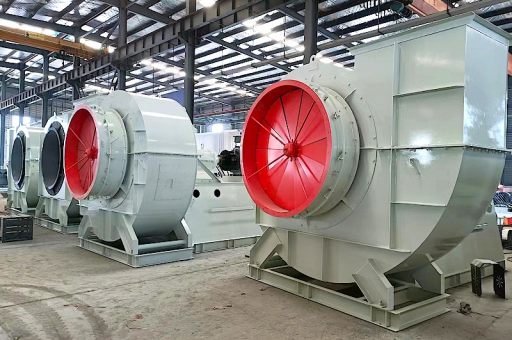

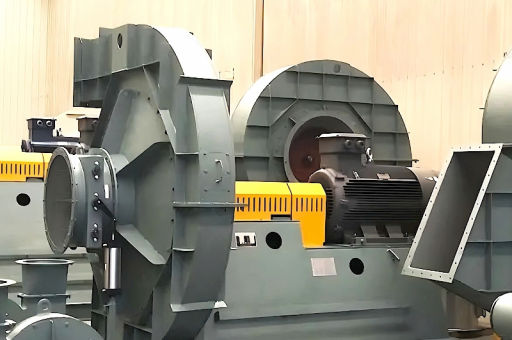

- Boiler/Induced Draft: Exhausting combustion gases from industrial furnaces or boilers.
- Forced Draft: Pushing combustion air into burners.
- Fume Extraction: Handling corrosive fumes (when built with stainless steel or coated options).
- Cooling & Drying: Industrial drying ovens and processes requiring high air velocity.
Key Components to Look For
When sourcing or specifying this fan, you should consider:
- Impeller Type: Typically radial tip or forward curved for high pressure.
- Housing Material: Carbon steel (standard), stainless steel (304 or 316 for corrosion), or abrasion-resistant steel (for materials like sand or shot blast).
- Bearings: Heavy-duty, pillow block ball bearings or roller bearings, often with grease fittings.
- Shaft Seal: Options include labyrinth seals, packing glands, or air-purge seals for handling hazardous dusts.
- Inlet Box: Often includes a manual or automatic inlet volume control damper (multi-louver or quadrant type).
- Motor: TEFC (Totally Enclosed Fan Cooled) or Explosion-Proof, mounted on a slide base for belt tensioning.
Advantages vs. Challenges
| Advantages | Challenges |
|---|---|
| Very high static pressure capability | Lower airflow efficiency compared to backward-curved fans |
| Robust, long-lasting construction | Can be noisy (may require a silencer) |
| Simple speed adjustment (belt drive) | Belt maintenance (tensioning, replacement) |
| Good for dirty or particulate-laden air | Larger footprint than a direct-drive fan |
| Easy motor replacement/service | Belt drive loses a small % of efficiency to friction |
Summary
A 9-19 Belt Drive Flexible Adjustable Industrial Centrifugal Fan Blower is a high-pressure workhorse designed for industrial processes that require moving air against significant resistance. Its strength lies in its durability and the ability to adjust performance through belt drive changes and inlet dampers.
If you need to move air through a dense filter, a long duct system, or convey heavy materials, this is the type of fan typically used. For a simple ventilation application requiring high volume and low pressure, a different fan design (like an axial fan or a backward-curved centrifugal) would be more appropriate.
