Based on your keywords, here is a detailed breakdown of what you are describing, the specifications involved, and key points to consider for sourcing or specification.

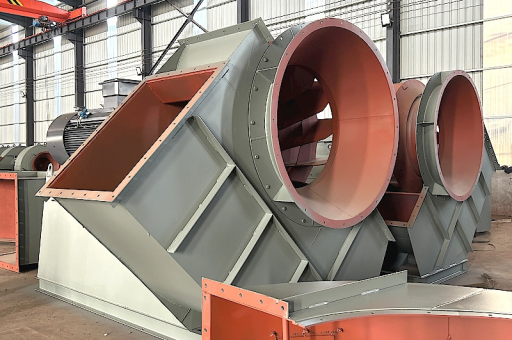

Product Description: You are looking for a Centrifugal Fan designed for use with a Steam Boiler. The specifications highlight a Medium Pressure rating, an IP55 protection rating (dust-tight and protected against water jets), a focus on Efficient Energy Saving (likely via backward-curved blades or a high-efficiency motor), and CE Certification.
Key Technical Specifications & Interpretation
Medium Pressure
- Typical Range: 2000 Pa to 5000 Pa (8 to 20 inches w.g.)
- Application: This is the sweet spot for forced draft (pushing air into the burner) or induced draft (pulling flue gas out) for medium-sized steam boilers. It must overcome the resistance of the burner, heat exchanger tubes, and chimney.
- Fan Type: Backward Curved (BC) or Backward Inclined (BI) blades are most common. They are quieter, more efficient, and non-overloading (motor won't burn out if ductwork is blocked) compared to forward-curved fans.
IP55 Protection
- Meaning:
- IP5_: Dust-protected. Ingress of dust is not entirely prevented, but it will not enter in sufficient quantity to interfere with satisfactory operation of the equipment.
- IP_5: Protected against water jets. Water projected by a nozzle (6.3mm) from any direction shall have no harmful effects.
- Why IP55? Boiler rooms are hot, humid, and often cleaned with hoses. IP55 ensures the motor and electrical connections survive condensation, steam leaks, and washdown procedures.
Efficient Energy Saving
- Key Factors:
- High-Efficiency Motor: IE3 or IE4 premium efficiency motors are required.
- Impeller Design: Backward-curved or airfoil blades offer efficiencies of 75-85%+.
- Variable Speed Drive (VFD) Ready: True energy savings come from controlling fan speed to match boiler load.
- Low Specific Speed: Designed to operate near its Best Efficiency Point (BEP) for the required pressure.
CE Certificate
- Mandatory for EU/EEA market.
- Covers: Low Voltage Directive (LVD), Machinery Directive (MD), and EMC (Electromagnetic Compatibility).
- For Boiler Fans: The CE mark confirms the fan is safe for use in an industrial environment and meets EU harmonized standards.
System Context: Steam Boiler Fan
- Forced Draft (FD) Fan (Supply Side):
- Pushes fresh air into the burner.
- Handles cold, clean air (lower density). Requires high volume, medium pressure.
- You likely need an FD fan.
- Induced Draft (ID) Fan (Exhaust Side):
- Pulls hot flue gas out of the boiler.
- Handles hot, corrosive, dirty gas (higher density, lower volume). Requires high temperature rating (150°C - 250°C+) and a gas-tight housing.
- Important: IP55 on an ID fan is tricky due to heat. You often need a cooling wheel or shaft cooler.
Critical Parameters to Confirm for Sourcing
To find the correct fan, you must provide these 3+ data points to a supplier:
- Airflow (m³/h or CFM): How much air does the boiler burner require?
- Static Pressure (Pa or mmH₂O): The total resistance in the boiler system (burner, air preheater, ductwork).
- Gas Temperature (°C):
- Standard: -20°C to +40°C (For FD fan drawing outside air).
- High Temp: +120°C to +250°C (For ID fan handling flue gas).
- Noise Limit (dB(A)): Important for workplace safety.
Potential Suppliers (Examples - for research)
- China/Hongkong: Xin Yi, Yin Yee, or similar boiler fan manufacturers.
- Europe: Nicotra Gebhardt, Ziehl-Abegg, Rosenberg (High efficiency EC fans available).
- Global: Howden, New York Blower, Cincinnati Fan.
Summary Checklist for your Order
- [ ] Fan Type: Centrifugal, Backward Curved (BC).
- [ ] Duty: Forced Draft (FD) or Induced Draft (ID)?
- [ ] Pressure: Medium (Specify exact Pa).
- [ ] Motor: IE3/IE4, IP55, Voltage (e.g., 380V/50Hz/3Ph).
- [ ] Certificate: CE (confirm.
- [ ] Material: Carbon steel (standard) or Stainless Steel (for corrosive gas/corrosive environment).
- [ ] Accessories: Inlet/Outlet flanges, vibration isolators, silencer (if noise is a concern).
Final Recommendation: Do not just buy a generic "medium pressure IP55 fan." You must match the fan curve to your boiler's resistance curve. A mismatch will destroy efficiency or cause the burner to run poorly. Request the fan's Performance Curve Chart from the supplier.
