This appears to be a product listing title or specification for an industrial air movement device. Let me break down what each component of this name describes.
Core Product:
- Centrifugal Blower/Fan: A fan where air enters the impeller axially and is discharged radially (at a 90-degree angle). This design creates high pressure, making it suitable for duct systems and industrial processes.
Key Features:
-

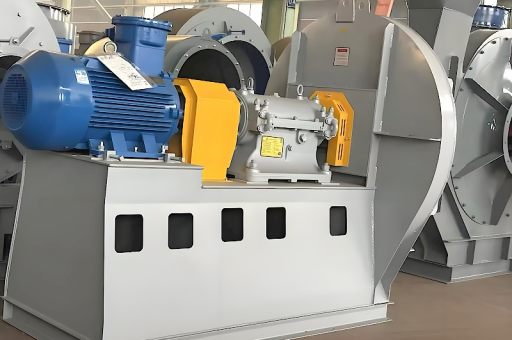

Coupling Driven (Direct Drive)
- The fan impeller is connected to the motor via a shaft coupling (flexible or rigid).
- Advantage: No belts or pulleys. This means no belt slippage, constant speed (RPM equals motor speed), and lower maintenance. It is also more energy-efficient than belt-driven fans.
- Typical Use: High RPM applications or where precise airflow is critical.
-
Centrifugal Flow
- Refers to the airflow path: air enters the center and is spun outward by centrifugal force.
- This provides higher static pressure compared to axial fans (like a desk fan or wall exhaust fan).
-
Anti-Wear (Abrasion Resistant)
- Design: The fan housing, impeller blades, and scroll are likely made of thicker steel (e.g., AR400/AR500), lined with ceramic tiles, or coated with abrasion-resistant rubber.
- Target Application: Moving heavy dust (cement, fly ash, wood chips), granular materials, or powders. Standard fans would erode quickly in these conditions.
-

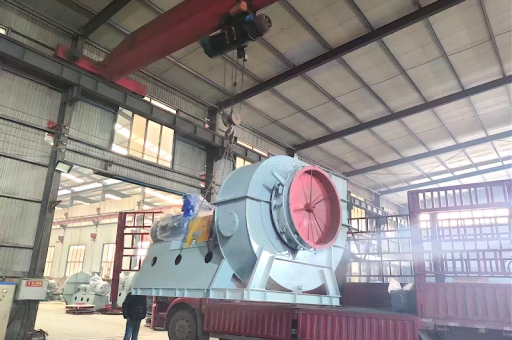

Large Centrifugal Blower
- Size: Typically over 2 meters in diameter (impeller). High volume (CFM/CMM) and high power (often 50kW to several hundred kW).
- Structure: Heavy-duty base frame, often requires a foundation.
Common Industrial Applications:
- Cement Plants: Kiln air supply, dust collection.
- Steel Mills: Furnace blowing, material conveying.
- Mining: Mine ventilation, ore transfer.
- Power Plants: Boiler forced draft/flue gas desulfurization (FGD).
- Woodworking: Large chip collection systems.
- Chemical Processing: Pneumatic conveying of corrosive or erosive materials.
Potential Product Keywords (for search/SEO):
- High pressure centrifugal fan
- Direct drive heavy duty blower
- Industrial abrasion resistant fan
- Material handling blower
- Dust collector fan
Important Considerations When Specifying:
| Parameter | Why it matters |
|---|---|
| RPM / Motor Power | Coupling driven means the speed is fixed unless you use a VFD. |
| Impeller Material | Hardox steel or stainless steel? Lined with ceramic? |
| Housing Access | Anti-wear fans often have wear plates that can be replaced without replacing the entire housing. |
| Seal Type | Dust-laden air requires shaft seals to prevent bearing contamination. |
| Balance Grade | G6.3 or G2.5? Large fans must be dynamically balanced. |
Is this a request for a specific technical specification, a repair manual, or a purchase inquiry? If you have a specific model number or need a selection criterion (e.g., "I need to move 50,000 CFM of cement dust at 30 inches of static pressure"), please provide those details.
