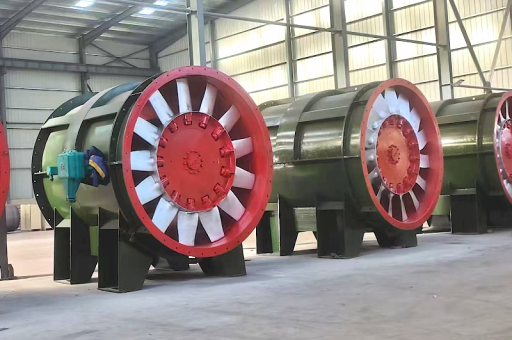

*The Role of the FBCDZ-6-No18 Coal Mine Exhaust Explosion-Proof Counter-Rotating Axial Flow Fan in Modern Mine Ventilation*
Table of Contents
- Introduction: The Critical Need for Explosion-Proof Mine Ventilation
- Technical Breakdown: What Does FBCDZ-6-No18 Actually Mean?
- Core Working Principle: How a Counter-Rotating Axial Flow Fan Operates
- Safety Engineering: Why Explosion-Proof Design is Non-Negotiable
- Applications in Coal Mines: Inlet vs. Exhaust Ventilation Strategies
- Performance Parameters: Efficiency, Pressure, and Airflow
- Maintenance and Troubleshooting: Ensuring Long-Term Reliability
- Frequently Asked Questions (FAQ)
- Conclusion: The Future of Anti-Explosion Fan Technology
Introduction: The Critical Need for Explosion-Proof Mine Ventilation
In the high-risk environment of underground coal mining, toxic gases like methane (CH₄) and carbon monoxide (CO) accumulate rapidly. Without robust ventilation, these gases can reach explosive concentrations. The FBCDZ-6-No18 Coal Mine Exhaust Explosion-Proof Counter-Rotating Axial Flow Fan represents a specialized engineering solution designed to mitigate these hazards. Unlike standard industrial fans, this unit is built to operate in potentially explosive atmospheres without becoming an ignition source. This article provides a comprehensive overview of its mechanical design, operational principles, and safety standards.
Question: Why is an explosion-proof fan strictly required in coal mines? Answer: Coal mines often release methane, which has a lower explosive limit of 5% in air. Any electrical spark or friction from a standard fan can trigger a catastrophic explosion. Explosion-proof fans like the FBCDZ-6-No18 are constructed with non-sparking materials, enclosed motors, and specially sealed components to contain any internal sparks or flames.
Technical Breakdown: What Does FBCDZ-6-No18 Actually Mean?
Understanding the nomenclature is essential for procurement and application:
- F – Fan (general classification for ventilating equipment).
- B – Explosion-proof (Bangbao / Anti-explosion) — indicates compliance with flameproof enclosure standards.
- C – Counter-rotating (refers to the two impellers spinning in opposite directions).
- DZ – Axial flow type (the airflow path is parallel to the shaft).
- 6 – Motor pole number (6-pole motor, typically running at approximately 980 RPM at 50 Hz).
- No18 – Impeller diameter in decimeters (i.e., 1800 mm or 1.8 meters).
This fan is a high-volume, medium-pressure axial design, specifically rated for exhausting contaminated air from mining tunnels.
Core Working Principle: How a Counter-Rotating Axial Flow Fan Operates
Unlike single-stage axial fans, the FBCDZ-6-No18 employs two coaxial impellers mounted on separate motors. These wheels rotate in opposite directions. This counter-rotation design offers several advantages:
- Pressure Multiplication: The first stage (primary impeller) accelerates air, while the second stage (secondary impeller) further increases static pressure without requiring a stationary guide vane.
- Reduced Turbulence: Because the swirl from the first impeller is canceled by the opposite rotation of the second, the airflow exits the fan axially (straight), improving downstream efficiency.
- Higher Efficiency: The elimination of guide vanes reduces mechanical losses. Efficiency ratings often exceed 85% at the best efficiency point (BEP).
This configuration allows the fan to handle high-resistance duct systems typical of deep mine networks.
Safety Engineering: Why Explosion-Proof Design is Non-Negotiable
The "Explosion-Proof" attribute refers to the physical construction of the fan housing and motor. Key features include:
- Flameproof Enclosures: The motor casing is built to withstand an internal gas explosion without bursting. Any hot gases escaping the enclosure are cooled through narrow, machined flange gaps before reaching the external atmosphere.
- Non-Sparking Materials: The impeller is often made from high-strength aluminum alloy or stainless steel to prevent frictional sparks.
- Temperature Control: Surface temperatures are monitored and limited to stay below the auto-ignition temperature of methane (approx. 595°C).
- Certification: These fans must carry international safety certifications (e.g., ATEX, IECEx, or China’s MA certification).
If spark hits the housing, it is contained; if the motor overheats, the thermal cutout activates. This redundancy is law.
Applications in Coal Mines: Inlet vs. Exhaust Ventilation Strategies
The FBCDZ-6-No18 is typically deployed as an exhaust fan (suction side). Here is how it fits into a mine ventilation plan:
- Exhaust Mode: The fan draws air from the return airway (the side that has passed through the active face). This creates negative pressure, pulling fresh air from the intake shaft toward the working area.
- Ducted Systems: The fan is often coupled with a flexible or rigid duct to direct airflow precisely to the longwall face or heading.

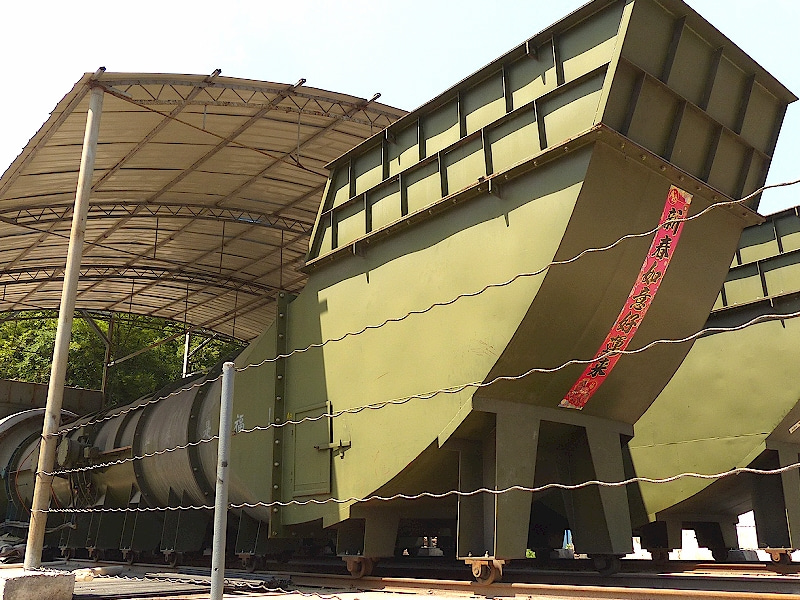

- Parallel Operation: In high-demand mines, multiple units can be installed in parallel on the surface exhaust shaft.
Note: For inlet (forced ventilation), a similar but often slightly different model without certain exhaust-optimized shrouds is used.
Performance Parameters: Efficiency, Pressure, and Airflow
Performance metrics for the FBCDZ-6-No18 are based on standardized test procedures (ISO 5801). Typical values:
- Airflow (Volume): 18,000 – 45,000 m³/h (depending on system resistance).
- Static Pressure: 800 – 4,500 Pa.
- Efficiency: Up to 85% at design point.
- Max Operating Temperature: -20°C to +60°C.
- Sound Level: Typically 85 dB(A) at 1 meter (with silencer).
These figures can vary based on impeller blade angle adjustment (pitch). The use of a high-efficiency wind turbine-style blade geometry in some recent models further improves energy savings.
Maintenance and Troubleshooting: Ensuring Long-Term Reliability
Mine fans run 24/7. Downtime is dangerous. Proper maintenance involves:
- Bearing Inspection: Monthly greasing and vibration analysis.
- Belt Tension (if applicable): Some FBCDZ models use independent direct-drive motors, but others use belts for speed adjustment.
- Rotor Balance: Unbalanced impellers cause vibration and premature bearing failure. Dynamic balancing at 1800 mm diameter is critical.
- Surge Prevention: If the fan operates too far to the right of its performance curve (low flow, high pressure), it may stall. A proper system resistance calculation is required.
Common Problem: Vibration plus unusual noise.
Solution: Check for coal dust buildup on blades, or a damaged bearing.
Frequently Asked Questions (FAQ)
Q1: Can this fan be used in a coal mine with high humidity?
Yes. The motor windings are typically coated with moisture-resistant varnish, and the casing is sealed against water ingress (IP55 or higher).
Q2: How does the FBCDZ-6-No18 compare to a centrifugal fan for mine exhaust?
Axial fans like the FBCDZ offer higher flow at lower pressure. For deep mines with very long duct runs requiring high static pressure, a centrifugal fan may be better. But for high-volume medium-pressure applications, the counter-rotating axial is more efficient.
Q3: Is the fan compatible with a VFD for speed control?
Yes, but only if the VFD and motor are explosion-proof rated. Special flameproof variable frequency drives must be used.
Q4: Does ‘No18’ mean the fan is small for a large mine?
Not necessarily. No18 refers to 1800 mm diameter. Many main mine fans are larger (No20 to No30). But for auxiliary or sub-main ventilation, 1.8 m is a standard size.
Conclusion: The Future of Anti-Explosion Fan Technology
The FBCDZ-6-No18 remains a backbone unit for coal mine exhaust systems. Its counter-rotating design solves the pressure inefficiencies of single-stage axial fans while maintaining compact dimensions. As mines become deeper and regulations tighten, we expect future iterations to integrate smart IoT sensors for real-time condition monitoring and predictive maintenance.
