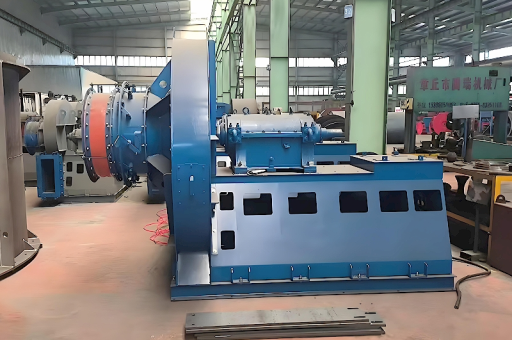

FBCDZ-10-No30 Coal Mine Exhaust Explosion-Proof Counter-Rotating Axial Flow Fan

This article's table of contents introduction:

1. Model Breakdown
2. What is this Fan?
3. Key Features
4. Specifications (Typical for FBCDZ-10-No30)
5. Applications
6. Advantages for Coal Mines
7. Model Confusion (FBCDZ vs. BD)

Based on the model designation you provided, FBCDZ-10-No30, here is the detailed breakdown of what this specific fan is, its features, and its typical application.

Model Breakdown

• F: Fan
• B: Explosion-proof (防爆, Fángbào)
• C: Counter-rotating (对旋, Duì Xuán)
• D: Motor direct-connected (电动机直联, Diàndòngjī Zhílián)
• Z: Main fan for a mine shaft (主扇, Zhǔ Shàn / Shaft fan)
• -10: Indicates the motor pole count (10 poles), which dictates the motor speed (approx. 580–590 RPM at 50Hz).
• No30: Indicates the fan impeller diameter is 30 decimeters (3.0 meters / 118 inches).

What is this Fan?

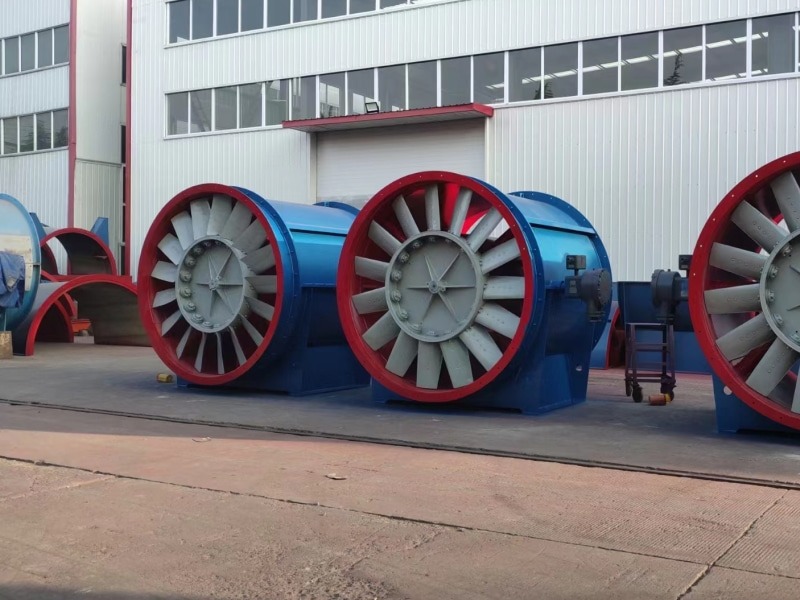

This is a large, explosion-proof, counter-rotating axial flow fan designed specifically as a main ventilation fan for coal mine exhaust shafts.

• Counter-Rotating (C): Unlike a standard axial fan which has a rotor and stator, this fan has two impellers (rotors) that rotate in opposite directions. The second impeller recovers the swirl energy from the first, generating very high pressure (high head) without requiring complex stator vanes.
• Explosion-Proof (B): The motor and internal components are designed to contain any internal spark or explosion without igniting the methane or coal dust in the mine air.
• Direct-Drive (D): There are no belts or gearboxes. The impellers are mounted directly on the motor shafts. This makes the fan very compact, reliable, and maintenance-free in terms of drive train.

Key Features

1. High Efficiency: The counter-rotating design is more efficient than a standard axial fan of the same size, especially at higher pressures.
2. Reverse Airflow: One of the most critical features for mine safety. By reversing the rotation direction of one or both impellers, the fan can reverse the airflow (from exhausting to forcing, or vice-versa) without needing complex and heavy reversal doors or dampers (typically achieving 60-70% of normal flow).
3. Compact Footprint: Because the motor is built directly into the casing, the overall length is shorter than a traditional anaxial or centrifugal fan requiring a separate motor and drive shaft.
4. Blade Pitch Adjustment: The fan blades are typically adjustable (manual or hydraulic). Operators can change the blade angle to optimize the fan's performance (pressure and flow) for the specific mine conditions without changing the motor speed.

Specifications (Typical for FBCDZ-10-No30)

Applications

• Primary (Main) Mine Ventilation: Used to exhaust stale, dust-laden, or potentially methane-rich air from the underground mine workings to the surface.
• Tunnel Ventilation: In long tunnels (e.g., railway, highway) where high pressure is needed to push air long distances, similar models (often without the explosion-proof rating) are used.

Advantages for Coal Mines

1. Safety: The explosion-proof construction is mandatory for coal mines (especially gassy mines, classified as "突出矿井" or "高瓦斯矿井" in China).
2. Flexibility: The ability to reverse air flow instantly is a critical emergency feature during a fire or gas outburst.
3. Reliability: Direct drive eliminates the most common failure point (belts) and reduces maintenance downtime.

Model Confusion (FBCDZ vs. BD)

You may also see the simpler term BD (Bao-Dui) or BDK used. The FBCDZ designation is the more precise, formal Chinese standard nomenclature (often used in bidding documents). FBCDZ-10-No30 is the same physical fan as a BDK-10-No30 in most contexts.

In summary: You are referring to a massive, high-volume, explosion-proof main mine exhaust fan that is directly driven by two counter-rotating motors, designed for continuous duty in the harshest underground coal mine environments.
