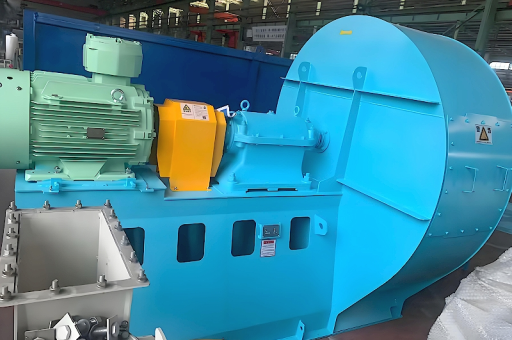

Based on your keywords, you are looking for a specific type of industrial fan: a Centrifugal Fan used as a Ventilation Blower for an AC Motor, designed to handle High Temperature Air Supply.
This combination is critical for industrial processes like furnaces, ovens, kilns, heat treatment, and drying systems where the motor must be kept cool while moving hot air.
Here is a breakdown of what you need to know to select or specify this fan, along with common configurations.
The Core Challenge: Motor Cooling
The main engineering problem is that an AC motor generates its own heat. If the air passing through the fan is hot (e.g., 200°C+), that heat will transfer to the motor shaft and housing, damaging the motor bearings and windings.
Solutions for High-Temp Air Supply:
- Air-Over (TENV): The motor has no external fan. It relies on the airflow from the fan itself (the process air) to cool it. This requires the process air to be below ~40°C. Not suitable for your high-temp request.
- TEFC with Shaft-Mounted Cooling Fan: Standard for ambient temperatures. The motor has its own separate fan (non-process) to cool it. The process air is isolated.
- Purging/Flushing: For high temps, a separate high-pressure blower forces cool, clean air into the motor housing to keep hot gases out.
- Isolation / Shaft Cooling: The motor is mounted on a pedestal away from the hot gas duct. The shaft is long, and a cooling wheel is mounted on the shaft between the motor and the hot air to block heat transfer.
Key Features of a High-Temp Industrial Centrifugal Fan
| Feature | Why it's needed for High-Temp Air Supply |
|---|---|
| Impeller Design | Backward Curved (BC) or Radial (Paddlewheel). BC is more efficient; Radial is more robust for dusty/harsh hot air. |
| Material | Carbon Steel (up to ~450°C). Stainless Steel (up to ~850°C, for corrosive gases). Inconel (extreme temps). |
| Shaft Seal | Mechanical seal or labyrinth seal to prevent hot air from leaking back into the motor bearing housing. |
| Bearings | External (outboard) bearings with a cooling fan or water cooling (for temps >400°C). |
| Motor Mount | Cradle base or pedestal mount with a long shaft to physically separate the motor from the hot ductwork. |
| Variable Speed | Required if you need to control the high-temp air supply volume precisely (uses a VFD). |
Common Configurations for "High Temp Air Supply"
A. Plug Fan (Direct Drive or Belt-Driven) with Heat Shield
- Best for: Medium temps (up to 150°C - 250°C).
- Setup: The motor is mounted directly or via belts. A heat slinger (a small disc on the shaft) is placed between the motor and the fan housing to physically block heat transfer.
- Ventilation: The motor itself has a TEFC blower or a separate cooling fan.
B. Pedestal-Mounted Fan (Shaft Cooling)
- Best for: High temps (250°C - 600°C+).
- Setup: The motor sits on a separate base. A long shaft connects it to the fan wheel. An inlet cone with a cooling fin is installed on the shaft. The motor side is kept at ambient temp. The fan side handles the hot air.
- Needs: A separate ventilation blower for the motor compartment.
C. Direct Drive with Air-Over Motor (TENV) - NOT for your high temp
- Warning: This is common for cooling towers, but if the air is hot (>100°C), this will destroy the motor. Do not use for high-temp supply.
Selection Checklist (for your purchase)
- Maximum Air Temperature: (e.g., 250°C, 400°C, 600°C)
- Air Volume (CFM / m³/hr): How much hot air do you need to move?
- Static Pressure (in.wg. / Pa): Resistance of the ductwork.
- Motor Power (HP / kW): Determined by CFM & Pressure.
- Motor Type:
- Standard TEFC (for motor ambient temp <40°C)
- High Ambient motor (rated for 65°C or 80°C) if the motor is in the hot space.
- Duct Connection: (Inlet size, Outlet size, rotation - CW/CCW)
- Atmosphere: Is the air clean, dusty, or corrosive?
Example Product Description (What to search for)
"Industrial Centrifugal Blower, High Temperature Air Supply, Backward Inclined Wheel, 230°C, 5000 CFM @ 4" wg."
- Brands to look for:
- New York Blower (NYB)
- Greenheck
- Twin City Fan
- Robinson Fans
- Chicago Blower
- Cincinnati Fan
- Elektror (for smaller high-temp units)
- Sodeca / Soler & Palau (for robust European designs)
Quick Recommendation
If you need to supply high-temperature air (e.g., 300°C+) AND keep the motor safe:
- Choose a Pedestal-Mounted Centrifugal Fan.
- Ensure it has a shaft cooling wheel (a small fan on the shaft between the motor and the hot housing).
- Specify external grease-line bearings with high-temp grease.
- Use a VFD for speed control if you need to vary the air supply rate (this also helps with soft-starting a heavy fan wheel).
Do you have specific temperature, CFM, or pressure requirements? I can help you narrow down the exact model or configuration.
