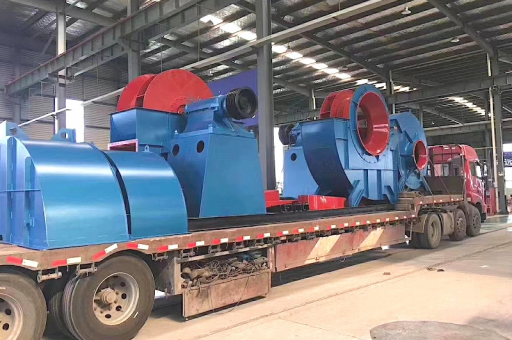

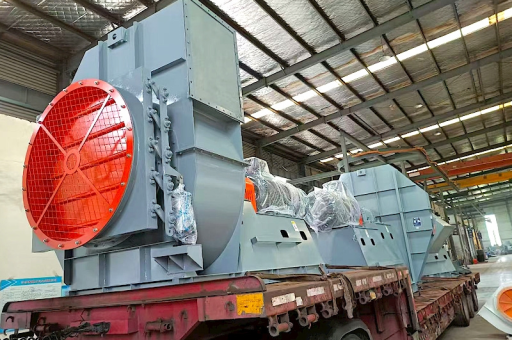

This is a detailed technical specification for IP55 High Air Flow Industrial Induced Draft Fans designed specifically for Thermal Power Plants.
These fans are critical for maintaining negative pressure in the boiler furnace, extracting flue gases, and directing them to the chimney or FGD (Flue Gas Desulfurization) system.
Key Specifications & Technical Data
| Parameter | Specification / Value |
|---|---|
| Fan Type | Centrifugal (Radial/Backward Curved) or Axial (Variable Pitch) |
| Application | Induced Draft (ID Fan) for Boiler exhaust |
| Protection Class | IP55 (Dust-protected & Water jet resistant) |
| Air Flow Rate | High Air Flow (Typically 500,000 m³/h to 2,000,000 m³/h or higher) |
| Static Pressure | 4,000 – 10,000 Pa (depending on boiler size & duct losses) |
| Temperature Range | Normal: 120°C – 160°C; Max Peak: 250°C (for bypass conditions) |
| Medium | Flue Gas (SOx, NOx, Fly Ash, Dust, Moisture) |
| Material | Impeller: Corten Steel (Weathering Steel) / Hardox / Stainless Steel; Casing: Carbon Steel with erosion-resistant lining |
| Drive | Direct Drive (Motor-fan shaft) or Belt Drive (for speed variation) |
| Motor | High Voltage Induction Motor (6kV / 10kV), Frequency Controlled (VFD) |
| Vibration Limit | < 4.5 mm/s (RMS) according to ISO 14694 (BV-3 / BV-4) |
| Efficiency | > 82% (at design point) |
| Noise Level | < 85 dB(A) at 1 meter (with silencer) |
| Balance Quality | G 6.3 (per ISO 1940-1) |
Why "IP55" is Critical for Induced Draft Fans
In a thermal power plant environment, ID fans are exposed to extreme conditions. The IP55 rating ensures:
- IP5 (Dust Protection): Prevents fly ash and coal dust from entering the motor or bearing housing. Even if dust enters, it must not interfere with operation.
- IP5 (Water Protection): Protects against water jets from cleaning systems (e.g., wash-down of ductwork) and rain ingress in open-air installations.
- Result: Prevents bearing contamination, motor winding flashover, and corrosion of internal components.
Design Features for Thermal Power Applications
- Erosion Resistance:
- The flue gas contains abrasive fly ash.
- Solution: Hard-faced impeller blades, wear-resistant liners (Ceramic tile or Chrome carbide overlay) on the casing and inlet box.
- High Temperature Compensation:
- Fans must handle thermal expansion.
- Solution: High-temperature shaft seals (labyrinth seals with purge air), expansion joints on inlet/outlet ducts, and water-cooled bearings.
- Vibration Monitoring:
- Critical for safety.
- Built-in accelerometers (ICP type) connected to a protection system (trip at >7.0 mm/s or 0.1 in/s peak).
- Variable Speed Drive (VSD):
Most modern ID fans use a VFD or Hydraulic Coupling to match fan speed with boiler load, saving significant energy compared to damper control.
Recommended Fan Types for ID Service
| Type | Advantages | Disadvantages | Use Case |
|---|---|---|---|
| Centrifugal (Radial) | Handles high dust loads; robust design. | Lower efficiency than backward curved; larger footprint. | Older plants; high ash coal; heavy duty. |
| Centrifugal (Backward Curved) | Higher efficiency (>85%); lower noise. | Less tolerant of erosion; requires clean gas. | Modern plants with efficient ESP/Bag filters before the ID fan. |
| Axial (Variable Pitch) | Very compact; light weight; precise flow control via blade pitch. | Lower pressure capability; blades are susceptible to erosion. | Sub-critical plants with low draft loss; forced draft applications. |
Installation & Safety Requirements
- Inlet Guide Vanes (IGV): For centrifugal fans, IGV with IP55 actuators control the flow without starting/stopping the motor.
- Duct Connection: Unrestricted straight duct (at least 3-5 diameters) before the fan inlet for stable flow.
- Drainage: Bottom casing drains to remove condensation during start-up or low load.
- Safety Guards: IP55 fan guard mesh over V-belt drives (if belt-driven).
Compliance / Standards
- ISO 14694: Industrial Fans — Specifications for balance quality and vibration levels.
- AMCA 210: Laboratory Methods of Testing Fans for Aerodynamic Performance.
- IEC 60034-5: Degrees of protection provided by enclosures of rotating electrical machines (IP55).
- NEMA MG-1: Motors and Generators (for motor compatibility with VFD).
Example Performance Curve (Indicative)
For an ID Fan in a 500 MW unit:
- Rated Flow: 850,000 m³/h
- Static Pressure: 7,500 Pa
- Shaft Power: ~2,500 kW
- Full Load Speed: 990 RPM (4-pole motor driven via VFD)
Maintenance Considerations (IP55)
- Bearings: Regrease every 500 hours (with IP55-grade grease fittings). Water ingress anywhere else indicates a seal failure.
- Motor Winding: Periodic insulation resistance test (Megger) because IP55 doesn't protect against high humidity/condensation. Use space heaters inside the motor.
- Impeller: Inspect for erosion every 6 months. Rebalance is required if wear exceeds 10% of blade thickness.
Purchase Key Questions (To Ask the Supplier)
- Is the IP55 rating confirmed for the motor AND the fan bearing housing? (Some vendors only IP-rate the motor).
- What is the material grade for the impeller? (Corten A/B vs SS316 vs Hardox).
- What is the maximum allowable continuous temperature of the flue gas?
- Is the fan designed for a "run-down" condition? (Power failure: the fan must coast to stop without structural damage).
- What is the guaranteed erosion life (e.g., 40,000 hours min.)?
Summary: An IP55 High Air Flow Induced Draft Fan for a thermal power plant is a robust, heavy-duty centrifugal or axial machine designed to move massive volumes of dirty, hot flue gas while being protected from dust and wash-down water. Proper selection requires balancing air flow, pressure, temperature, erosion resistance, and efficiency against the specific fuel quality (coal/ash content) and plant layout.
