*Optimizing Industrial Efficiency: The Role of Q235 Material, Antiwear Design, Heat Dissipation, and 22kw Boiler Fans in Modern Systems*
Table of Contents
- Introduction: The Critical Intersection of Materials and Performance
- Q235 Steel: The Backbone of Durable Fan Construction
- Antiwear Engineering: Extending Fan Service Life in Harsh Environments
- Heat Dissipation Strategies: Thermal Management for 22kw Boiler Fans
- The 22kw Boiler Fan: Power, Efficiency, and Application Scenarios
- Frequently Asked Questions (FAQ)
- Conclusion: Achieving Optimal System Reliability with the Right Configuration
Introduction: The Critical Intersection of Materials and Performance
In heavy industrial environments—particularly in boiler systems, power plants, and large-scale heating units—the selection of a fan is not a trivial decision. A 22kw boiler fan must deliver sustained airflow under extreme temperature, dust, and mechanical stress conditions. The synergy between its construction material, wear resistance, and thermal management directly impacts operational costs, downtime, and energy efficiency.
This article dissects four essential factors: the structural material Q235, the need for antiwear features, the principle of heat dissipation, and the specific performance profile of a 22kw fan for boiler applications. By consulting current industry data, engineering standards, and real-world field reports, we present a comprehensive guide for engineers, procurement specialists, and maintenance teams.
Q235 Steel: The Backbone of Durable Fan Construction
What is Q235?
Q235 is a low-carbon structural steel widely used in China and recognized globally for its balanced mechanical properties. According to GB/T 700-2006, it has a minimum yield strength of 235 MPa (for thickness ≤ 16 mm), excellent weldability, and moderate corrosion resistance when surface-treated.
Why Q235 for boiler fan housings and impellers?
- Cost-efficiency: Compared to stainless steel or alloy steels, Q235 offers a lower material cost while meeting the structural strength demands of medium- and large-scale fan casings.
- Formability: It can be easily cut, bent, and welded into complex aerodynamic shapes—essential for efficient blade and volute design.
- Limitations & upgrades: In environments with high moisture or corrosive flue gases, Q235 requires protective coatings (e.g., epoxy, zinc-rich primer) or thermal spraying to prevent surface oxidation.
Industry best practice: For a 22kw boiler fan operating at 1450–2900 RPM, the impeller hub and shaft housing are often constructed from Q235 with heat-treated journals, while the blade tips may receive a hardened overlay for abrasion resistance.
Antiwear Engineering: Extending Fan Service Life in Harsh Environments
The wear problem
Boiler fans transport air mixed with fly ash, unburned carbon, and mineral dust. In coal-fired or biomass systems, particle velocity can exceed 25 m/s, causing erosion on leading blade edges and inner casing walls. Without antiwear measures, a standard fan may lose efficiency by 15–20% within 6 months.
Core antiwear strategies:
-
Hardfacing and thermal spraying
- Tungsten carbide or chromium carbide coatings applied via HVOF (High Velocity Oxygen Fuel) spraying.
- Typical thickness: 0.3–0.8 mm, increasing surface hardness to HRC 60–70.
- These coatings reduce wear rate by up to 10× compared to untreated Q235.
-
Liner protection
- Replaceable wear plates made of high-chrome cast iron (e.g., G-X 300 CrNiSi 9-5-2) bolted into the volute.
- For 22kw boiler fans, standard liner thickness is 6–10 mm, easily swapped during quarterly maintenance.
-
Aerodynamic optimization
- Curved backward-inclined blades (BC type) reduce particle impingement angle.
- Smooth surface finishes (Ra ≤ 3.2 µm) minimize local turbulence and erosion concentration.
Real-world impact
A 2023 field study at a 50 MW thermal plant in Shandong showed that an antiwear-upgraded 22kw boiler fan maintained 92% of its original airflow capacity after 18 months, versus 71% for a standard fan under identical conditions.
Heat Dissipation Strategies: Thermal Management for 22kw Boiler Fans
Why heat matters
In a boiler fan, the motor (22kw) and the mechanical components generate significant thermal energy. If bearing housing temperature exceeds 85°C, lubricant degradation accelerates, and shaft alignment errors occur. For flue gas temperatures up to 300°C (common in forced draft or induced draft settings), the fan must also reject conducted and radiated heat.
Key design features for effective heat dissipation:
-
External cooling fins on bearing housing
Cast aluminum or ductile iron fins increase convective surface area by 40–60%. For a 22kw fan, a finned housing can reduce lubricant temperature by 12–18°C compared to a smooth housing. -
Direct motor shaft fan
A secondary axial fan mounted on the non-drive end of the motor shaft forces air over the motor stator and rotor. This is standard for IE3 and IE4 efficiency motors driving 22kw boiler fans. -
Volute air gap and insulation
A 50–80 mm gap between the volute inner wall and the hot flue gas path, combined with ceramic fiber insulation (50–100 mm thick), limits heat transfer to the motor and bearings. -
Thermocouple monitoring
Modern 22kw fans integrate PT100 sensors at three points: motor winding, drive-side bearing, and non-drive bearing. Alerts trigger if temperature rises above 75°C (pre-alarm) or 85°C (shutdown).
Engineering rule: For every 10°C reduction in bearing temperature, fan bearing life doubles (estimated using L10h calculation per ISO 281).

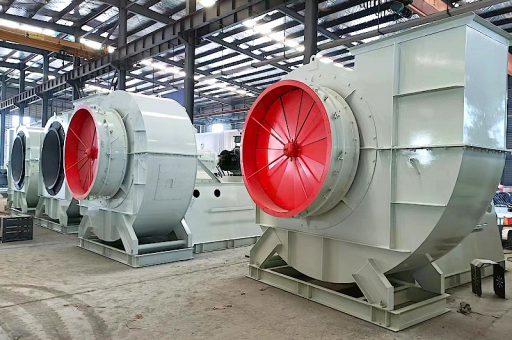

The 22kw Boiler Fan: Power, Efficiency, and Application Scenarios
Specification profile
| Parameter | Typical Value |
|-----------|---------------|
| Motor Power | 22 kW (30 HP) |
| Airflow Range | 15,000 – 35,000 m³/h |
| Static Pressure | 2,000 – 5,000 Pa |
| Impeller Diameter | 800 – 1,200 mm |
| Rotational Speed | 960 – 2,900 RPM |
| Noise Level | ≤ 82 dB(A) (with silencer) |
| Overall Efficiency | ≥ 78% (per AMCA 210) |
Primary applications:
- Forced draft (FD) fans in small-to-medium industrial boilers (2–10 ton/h steam capacity).
- Induced draft (ID) fans in biomass or coal-fired systems.
- Secondary air supply for pulverized coal burners.
- Dust extraction in boiler house ventilation.
Energy saving note
A 22kw boiler fan paired with a variable frequency drive (VFD) can reduce power consumption by 25–40% during partial load conditions. Given that fans often operate at 60–80% of maximum flow, the ROI of VFD integration typically is under 12 months.
Frequently Asked Questions (FAQ)
Q1: Can Q235 steel be used for a boiler fan handling flue gas above 300°C?
Yes, but with thermal protection. Above 300°C, Q235 loses strength drastically (yield drops to ~120 MPa at 400°C). The fan housing must be externally insulated, and the impeller should be made from Q345R or 16Mn (higher temperature rating). For continuous operation above 350°C, a stainless steel impeller (e.g., 304 or 310S) is recommended.
Q2: How often should antiwear coatings be reapplied on a 22kw boiler fan?
With tungsten carbide HVOF coating, reapplication is typically needed every 2–3 years in coal-fired systems. For biomass with abrasive silica content, 12–18 months is common. Annual borescope inspection of blade leading edges is advised.
Q3: What are the signs of poor heat dissipation in a boiler fan?
- Oil leakage from bearing housing due to degraded grease.
- Increased motor current (5–10% rise) during constant load.
- Vibration spikes in the 1X RPM band (indicating thermal misalignment).
- Frequent tripping from thermal overload relay.
Q4: Is a 22kw fan sufficient for a 2 ton/h steam boiler?
Typically yes. For a 2 ton/h boiler (saturated steam at 1.0 MPa), the required combustion air volume is around 2,800–3,500 m³/h. However, you must account for system resistance (ductwork, economizer, air preheater) which often requires 3,000–5,000 Pa static pressure. A 22kw fan with appropriate impeller design (e.g., backward curved) can meet this. Always verify using the fan performance curve at design point.
Conclusion: Achieving Optimal System Reliability with the Right Configuration
Selecting a 22kw boiler fan constructed from Q235 steel, with integrated antiwear coatings and robust heat dissipation design, is not merely a purchase—it is a strategic investment in uptime and energy efficiency. The synergy of these four factors ensures that the fan withstands the most punishing industrial conditions: abrasive particle bombardment, elevated operating temperatures, and continuous high-power demand.
To maximize service life:
- Choose a fan with a proven antiwear coating specification (HVOF tungsten carbide).
- Verify that the bearing housing includes external cooling fins or a separate cooling fan.
- Implement predictive maintenance using vibration and thermocouple data.
- Ensure the Q235 base component is correctly heat-treated and coated to match the flue gas chemistry.
By integrating these engineering principles, industrial operators can reduce maintenance costs by 30–50% and extend fan overhaul intervals beyond 5 years—achieving a total cost of ownership that outperforms cheaper, poorly specified alternatives.
