** The Critical Role of Coal Fired Primary Boiler Centrifugal Fan Induced Draft in Thermal Power Plant Efficiency and Emission Control
Table of Contents (目录导读)
- Introduction: The Backbone of Combustion Air Management
- Technical Anatomy: How a Centrifugal Fan Induced Draft System Works in a Coal-Fired Boiler
- Design Considerations for Primary Boiler Applications
- Operational Challenges: Erosion, Vibration, and High-Temperature Gas Handling
- Performance Optimization and Energy-Saving Strategies
- FAQ: Common Questions about Coal Fired Primary Boiler Centrifugal Fan Induced Draft
- Conclusion: Future Trends in Draft System Engineering
Introduction: The Backbone of Combustion Air Management
In any coal-fired thermal power plant, the boiler is the heart of energy conversion. However, without a reliable air and gas movement system, combustion efficiency and operational safety would collapse. Among the most critical rotating equipment in this system is the Coal Fired Primary Boiler Centrifugal Fan Induced Draft unit. This fan is not merely a mechanical mover; it is a precision-engineered component that controls furnace pressure, evacuates flue gas, and ensures complete combustion.
The induced draft (ID) fan, specifically of the centrifugal type, is positioned downstream of the boiler's economizer, air preheater, and particulate control devices. Its primary mission is to pull the hot, often abrasive, flue gas through the boiler passes and electrostatic precipitators (ESP) or baghouses, finally discharging it to the chimney. Unlike forced draft fans that push air into the furnace, the induced draft fan creates a negative pressure inside the boiler, preventing dangerous blowback of flames and toxic gases into the operating area.
In today’s context of tightening environmental regulations and the push for higher thermal efficiency, understanding the design, operation, and maintenance of this fan is essential for plant engineers, maintenance managers, and energy consultants. This article synthesizes the latest technical knowledge and operational best practices found across global power industry references, tailored for a professional audience seeking both depth and practical applicability.
Technical Anatomy: How a Centrifugal Fan Induced Draft System Works in a Coal-Fired Boiler

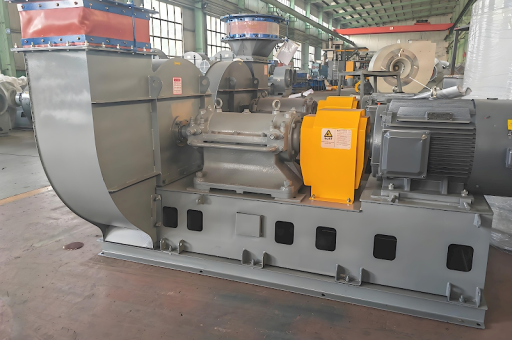

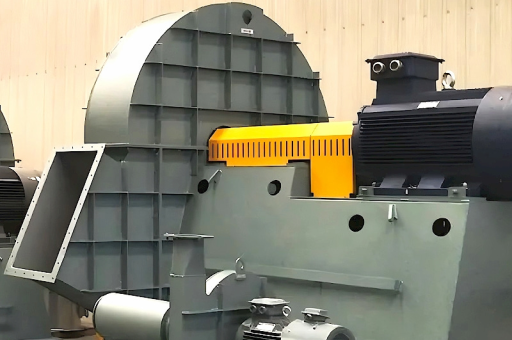

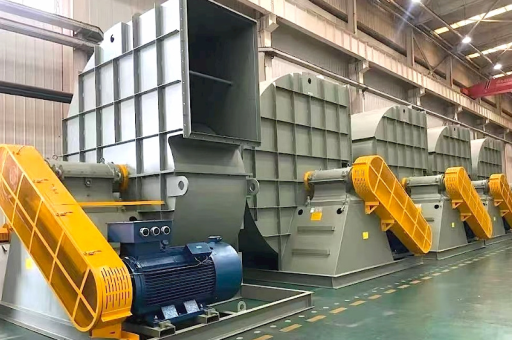

A typical Coal Fired Primary Boiler Centrifugal Fan Induced Draft assembly consists of a rotor with backward-curved blades, a heavy-duty casing with wear-resistant liners, an inlet box with guide vanes (inlet damper), and a bearing assembly supported on a robust pedestal. The impeller diameter can exceed 4 meters in large utility boilers, and the driving motor power often ranges from 2 MW to over 6 MW.
The working principle is based on centrifugal force: flue gas enters the impeller axially through the inlet cone, is captured by the rotating blades, and is accelerated radially outward. As the gas exits the impeller tips into the volute casing, its high kinetic energy is converted into static pressure, overcoming the resistance of the ductwork, emission control equipment, and chimney.
Key parameters that define the fan's operating point include:
- Flue gas volume flow rate (m³/s or CFM)
- Total pressure rise (Pa or in. w.g.)
- Gas temperature (typically 130°C to 180°C at the ID fan inlet, but can spike during process upsets)
- Gas density (influenced by moisture and ash content)
Advanced designs now incorporate variable speed drives (VFD) or variable inlet vane control (VIV) to match the fan output to the boiler load, dramatically reducing electrical energy consumption compared to fixed-speed fans with damper throttling.
Design Considerations for Primary Boiler Applications
When specifying a Coal Fired Primary Boiler Centrifugal Fan Induced Draft, engineers must account for several unique constraints not found in other industrial fan applications.
High-Temperature Gas Handling: The fan must tolerate short-term temperature excursions caused by sootblowing operations or air heater malfunctions. Materials such as Corten steel, 16Mo3, or stainless steel (e.g., 304L or 316L) are common for wheels and casings when sustained temperatures exceed 250°C.
Erosive Dust Loading: Coal-fired boilers produce fly ash containing hard silicate and alumina particles. Even with ESPs removing 99% of particulates, the remaining 50–100 mg/Nm³ can cause severe blade wear over time. Leading manufacturers apply hardfacing coating (e.g., tungsten carbide via HVOF thermal spray) or replaceable wear plates on the blade leading edges and side plates.
Vibration and Structural Integrity: Given the enormous mass of the rotor and the high rotational speeds (typically 600–1200 RPM), resonance avoidance is critical. Finite Element Analysis (FEA) is standard during design to ensure that the fan's natural frequencies do not coincide with the blade passing frequency or the electrical grid's 50/60 Hz harmonics.
Sealing and Leakage: Atmospheric air leaking into the fan inlet reduces boiler draft efficiency. Modern shaft seals, often labyrinth-type with purge air connections, are used to minimize leakage and prevent bearing contamination.
Operational Challenges: Erosion, Vibration, and High-Temperature Gas Handling
Operators face three primary challenges when managing a coal-fired induced draft centrifugal fan:
Erosion Management: The highest wear rate occurs at the blade root and the trailing edge of backward-curved blades. Regular thickness inspection using ultrasonic gauges is mandatory. Many plants operate a redundant fan configuration (2 × 50% or 2 × 100%) to allow one unit to be taken offline for blade repair without shutting down the boiler.
Vibration and Balancing: Uneven ash deposition on the rotating wheel can cause unbalance. In severe cases, this leads to bearing failure or shaft cracking. Online vibration monitoring systems with accelerometers at each bearing housing are now standard. Sudden vibration changes often indicate a broken blade or accumulated ash falling off.
High-Temperature Trips: If the flue gas temperature exceeds the design limit (e.g., 200°C for a carbon steel fan), thermal expansion can cause impeller rubs against the casing. Gas recirculation ducts or tempering air ports are sometimes installed upstream of the fan to cool the gas during start-up or low-load operation.
Practical Tip: Many plant engineers have shared on professional forums (like those found on fan) that scheduling sootblowing during low-load periods and maintaining steady boiler combustion minimizes temperature spikes and extends induced draft fan life by 30–40%.
Performance Optimization and Energy-Saving Strategies
The Coal Fired Primary Boiler Centrifugal Fan Induced Draft is one of the largest power consumers in a thermal plant, often accounting for 2–4% of the total net generation. Therefore, optimizing its performance yields significant financial and environmental benefits.
Variable Frequency Drive (VFD): Retrofitting a constant-speed induced draft fan with a VFD can reduce fan motor power consumption by 20–35% when operating at partial loads, which is typical for many hours annually. Payback periods of 1.5 to 3 years are common in base-load and cycling plants.
Inlet Vane Optimization: For plants unable to install VFDs, maintaining inlet vane angles within the recommended range (typically 40° to 70°) minimizes pressure losses. Using a modern digital controller with predictive algorithms can prevent vane hunting and surge.
Ductwork Cleanliness: Pressure drops across air preheaters and ESPs increase over time. Cleaning these components as per manufacturer guidelines maintains a lower resistance to the fan, reducing the required fan static pressure.
Parallel Fan Operation: In installations with two fans, ensuring equal load sharing via intelligent control prevents one fan from operating in an inefficient low-flow zone while the other is overloaded.
FAQ: Common Questions about Coal Fired Primary Boiler Centrifugal Fan Induced Draft
Q1: What is the main difference between an induced draft fan and a forced draft fan? A: The induced draft fan is located downstream of the boiler and operates at high temperature, pulling flue gas out of the furnace, creating negative pressure. The forced draft fan is located upstream, pushing ambient air into the boiler under positive pressure.
Q2: Why is a centrifugal design preferred over an axial fan for induced draft in coal-fired boilers? A: Centrifugal fans can generate higher pressure rises per stage, are less sensitive to high-temperature gas density changes, and have a more robust mechanical construction that withstands erosion from fly ash better than axial fans.
Q3: How often should an induced draft fan be inspected? A: Industry best practice is to perform a visual and vibration inspection monthly, a detailed thickness measurement of the impeller blades every 6 months, and a full overhaul including bearing replacement and dynamic balancing every 3–5 years, depending on coal ash content and hours of operation.
Q4: What causes surging in an induced draft fan system? A: Surging occurs when the fan operates at a flow rate below its surge limit, causing periodic flow reversal. This is often linked to high system resistance, such as a plugged air preheater or closed dampers. The solution is to increase flow or open the system path.
Q5: Can a failed induced draft fan cause a boiler explosion? A: While not directly an explosion risk, a sudden ID fan trip can cause rapid furnace pressure rise (positive pressure), potentially lifting safety relief dampers and pushing flames or hot gas into the boiler house, posing a fire and safety hazard. Redundant fans and fast dump dampers mitigate this risk.
Conclusion: Future Trends in Draft System Engineering
The Coal Fired Primary Boiler Centrifugal Fan Induced Draft remains an irreplaceable component in existing coal-fired power plants, and will continue to do so for the next two decades as many countries transition away from coal slowly. However, the engineering of these fans is evolving rapidly.
We are seeing a shift toward digital twin integration, where real-time sensor data from the fan (vibration, temperature, bearing health, and motor current) feeds a simulation model that predicts remaining useful life and advises optimal maintenance windows. Also, new coating technologies, such as ceramic-based nanocomposite coatings, are extending blade life in high-ash Indian and Chinese coals.
Furthermore, the rise of flexible operation (boilers ramping up and down frequently to support renewable energy sources) demands induced draft fans with even wider turndown ratios and faster control response. Manufacturers on platforms like fan now offer certified retrofit kits with advanced aerodynamic blade profiles that maintain peak efficiency from 30% to 100% load.
In summary, mastering the technology of the coal-fired primary boiler centrifugal fan induced draft system is not just about keeping the plant running—it is about running it profitably, safely, and in compliance with emission standards. Engineers who invest time in understanding these fans will find themselves indispensable in the evolving energy landscape.
