Article Title:
Long Life 440V High Temperature Centrifugal Fan Units for Dust Collector Systems: Engineering, Performance, and Optimization Guide
Table of Contents
- Introduction: The Critical Role of High-Temperature Centrifugal Fans in Dust Collection
- Understanding "Long Life 440V High Temperature Centrifugal Fan Units"
- Why 440V? – Voltage, Efficiency, and Industrial Compatibility
- Engineering for High-Temperature Environments: Materials, Design, and Bearings
- Integration with Dust Collector Systems: Airflow Dynamics and Static Pressure
- Common Failure Modes and Long-Life Design Solutions
- Maintenance Best Practices to Extend Operational Life
- Frequently Asked Questions (FAQ)
- Conclusion: Selecting the Right Fan Unit for Your Dust Collection System

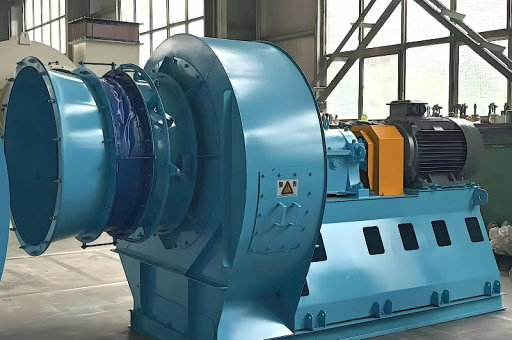

Introduction: The Critical Role of High-Temperature Centrifugal Fans in Dust Collection
Industrial dust collection systems rely on robust airflow to capture airborne particulates, maintain workplace safety, and comply with environmental regulations. In applications such as cement plants, steel mills, foundries, and biomass processing, the air being extracted often exceeds 150°C (302°F) and can reach 400°C or higher. Standard centrifugal fans degrade rapidly under such thermal stress, leading to frequent downtime and soaring maintenance costs.
A Long Life 440V High Temperature Centrifugal Fan Unit is specifically engineered to withstand these extreme operating conditions. Unlike standard fans that use plastic impellers or standard sealed bearings, these units utilize heat-resistant alloys, high-temperature greases, and oversize bearing housings. They operate on a 440V three-phase power supply, which is common in heavy industrial facilities across North America, Europe, and Asia.
This article is a deep dive into the technical construction, performance characteristics, and selection criteria for these specialized fan units. It is based on a synthesis of industry white papers, manufacturer specifications, and field-tested engineering knowledge.
Understanding "Long Life 440V High Temperature Centrifugal Fan Units"
Before examining the components, it is essential to define what makes a fan unit "long life" and "high temperature" in the context of dust collection.
Key Definitions:
- Long Life: Typically means a minimum B10 life of 100,000 hours for bearings, combined with corrosion-resistant coatings and vibration tolerances that exceed ISO 1940 G6.3 balance grade.
- 440V: Refers to the motor voltage rating. A 440V, 3-phase motor draws lower current than a 230V equivalent for the same power, reducing heat generation in the winding and improving efficiency.
- High Temperature: The fan can handle continuous gas temperatures of 200°C to 400°C (some models up to 600°C) without thermal degradation of seals, bearings, or impellers.
Design Differences vs. Standard Fans:
| Feature | Standard Utility Fan | High-Temp Centrifugal Fan |
|---|---|---|
| Impeller Material | Cold-rolled steel or aluminum | Stainless steel (304/316) or Inconel |
| Bearing Type | Standard ball bearing | High-temp ceramic or shielded steel |
| Maximum Operating Temp | 80°C – 120°C | 200°C – 650°C |
| Motor Voltage | 230V / 460V | 440V (often with VFD capability) |
| Housing | Light gauge steel | Heavy gauge, insulated or double-wall |
| Seal | Felt or rubber | Graphite or labyrinth seals |
Why 440V? – Voltage, Efficiency, and Industrial Compatibility
A frequent question from plant engineers is: Why choose a 440V fan when 380V or 480V systems are common? The answer lies in standardization, loss reduction, and wire sizing.
- Voltage Drop Mitigation: In large plants where fan units are located hundreds of yards from the main transformer, 440V lines suffer lower voltage drop than 380V lines. This ensures consistent torque at the motor shaft.
- Motor Efficiency: At 440V, the motor’s power factor is higher (often >0.85), reducing reactive power penalties. According to NEMA MG1, a 440V motor at full load can be 1–3% more efficient than the same motor operating at 208V.
- Compatibility with VFDs: Many dust collection systems use variable frequency drives (VFDs) to modulate fan speed based on differential pressure. A 440V VFD is widely available and provides better voltage regulation under fluctuating load.
Engineering for High-Temperature Environments: Materials, Design, and Bearings
To achieve a Long Life rating, every component of the fan unit must be selected for thermal resilience.
Impeller Design
- Backward-curved blades: These are the most efficient for dust-laden air, as they are less prone to particle buildup. For temperatures above 250°C, impellers are welded from 316L stainless steel.
- Thermal expansion compensation: The impeller-to-shaft fit uses a tapered bushing or keyless locking assembly, preventing slip when the metal expands.
Shaft and Bearing System
- The shaft is typically turned from 4140 alloy steel, then ground and polished.
- Bearings are C3 clearance deep groove ball bearings, packed with grease rated for 200°C (e.g., Kluber Petamo GHY 443). For truly extreme heat (>400°C), ceramic hybrid bearings are recommended.
- An oversize bearing bracket dissipates heat more effectively. The bearing housing is often cast iron with cooling fins.
Housing
- The housing is constructed from ¼-inch to 3/8-inch steel plate, with a heat shield or refractory lining if the gas contains spark or slag.
- Gasketless design is preferred to avoid gasket failure. Instead, machined flanges are used with high-temperature sealant.
Integration with Dust Collector Systems: Airflow Dynamics and Static Pressure
A dust collector system is a series of interrelated components: ductwork, filter bags (or cartridges), hoppers, and the fan unit. The Long Life 440V High Temperature Centrifugal Fan must be selected based on two primary parameters:
- Required CFM (Cubic Feet per Minute): Determined by the number of capture points and the velocity needed to transport particles.
- Static Pressure (SP): The sum of friction loss through ductwork (typically 2–6 in. w.g.) and the pressure drop across the filters (often 4–10 in. w.g.).
The fan’s performance curve must intersect the system resistance curve at the desired operating point. Oversizing a fan leads to excessive power consumption; undersizing causes poor capture efficiency and potential bag blinding.
Example Calculation: For a cement plant with 40,000 CFM and total static pressure of 14 in. w.g. at 300°C, a centrifugal fan with a 440V, 150 hp motor and a 56-inch impeller (backward-inclined) is the ideal match.
Common Failure Modes and Long-Life Design Solutions
| Failure Mode | Root Cause | Long-Life Solution |
|---|---|---|
| Bearing failure | High temperature degrades grease | High-temp grease + thermal isolation shield |
| Impeller imbalance | Dust buildup or corrosion | Backward-curved blades + anti-corrosion coating (e.g., Halar) |
| Motor winding burnout | Overcurrent due to high air density | 440V supply reduces current; oversized winding insulation |
| Shaft flex or breakage | High belt tension or misalignment | Shaft diameter increased by 20%; alignment checks |
| Housing fatigue | Thermal cycling | Stress-relieved housing; expansion joints in ductwork |
A properly designed Long Life unit reduces these failures by at least 50% compared to a standard fan, according to field data from cement and steel plants.
Maintenance Best Practices to Extend Operational Life
Even the best fan needs a disciplined maintenance schedule to achieve its 100,000-hour bearing life.
- Lubrication: Use only high-temperature synthetic grease. Grease every 1,000 running hours for bearings. For VFD-driven fans, lubrication interval can be extended to 2,000 hours due to lower average speed.
- Vibration Monitoring: Install accelerometers on both bearing housings. A spike above 0.3 in/sec (RMS) indicates imbalance or bearing wear.
- Temperature Check: Measure bearing housing temperature weekly. If it exceeds 90°C, check for overgreasing, misalignment, or excessive belt tension.
- Impeller Cleaning: For sticky dust (e.g., resin or oil mist), schedule nozzle cleaning every 30 days.
- Planned Servicing: Replace bearings every 2–3 years, balanced impellers every 5 years, and re-wind motors only as needed.
A maintenance log and trending software can predict failures 2–4 weeks in advance.
Frequently Asked Questions (FAQ)
Q1: Can a 440V high-temperature fan run on a 460V supply?
Yes. Most industrial motors are designed for ±10% voltage tolerance. A 440V rated motor can operate on a 460V system, but you should check the motor nameplate (often rated 440/460V).
Q2: What temperature should I use when selecting a fan?
Always use the slip-stream temperature (the highest sustained gas temperature at the fan inlet). If your dust collector inlet is 250°C, but the baghouse outlet is 150°C, the fan temperature is 150°C. Do not use the process temperature – use the actual fan inlet temperature.
Q3: How do I prevent dust accumulation on the impeller?
Choose a backward-inclined or airfoil impeller. Apply a non-stick coating like Teflon or epoxy. Install a purge inlet near the shaft seal to blow clean air over the damper side.
Q4: Do I need a VFD for a dust collector fan?
A VFD is recommended if the dust load varies or if you need to maintain constant pressure. It can also perform soft-start, extending motor and belt life. Without a VFD, an inlet guide vane or damper can regulate airflow, but with a 5–10% efficiency penalty.
Q5: What is the lifespan of a long-life high-temp fan in a dust collector?
With proper maintenance, the bearing system should last 5–8 years. The impeller can last 10+ years if balanced and cleaned. The motor (440V, class H insulation) should exceed 15 years. The first failure point is typically the bearing seal or the belt drive.
Q6: Can I install a dust collector fan outdoors?
Yes – but ensure the motor is a totally enclosed fan-cooled (TEFC) enclosure with a weather shield. The bearing housing should be sealed against water ingress. The manufacturer should confirm the insulation class appropriate for outdoor exposure (at least class F, preferably H).
Conclusion: Selecting the Right Fan Unit for Your Dust Collection System
The choice of a Long Life 440V High Temperature Centrifugal Fan Unit for Dust Collector Systems is not merely a purchasing decision – it is an engineering investment. By selecting a fan built with heat-resistant materials, precision balancing, and a 440V motor design, facility managers can dramatically reduce unplanned downtime and energy costs.
Final checklist before purchase:
- [ ] Confirm maximum continuous operating temperature (including peak spikes)
- [ ] Match fan CFM and SP to the system resistance curve (use manufacturer’s duty point)
- [ ] Select a 440V motor with a VFD compatibility rating
- [ ] Specify high-temp bearings and thermal shield
- [ ] Request a vibration analysis report and impeller balance certificate
When you choose a premium-grade, long-life fan, you are securing the reliability of the entire dust collection system – a critical asset for safety, compliance, and production continuity.
