It sounds like you're looking for information on a high-efficiency, energy-saving industrial centrifugal blower used as a dust collector fan. This is a critical component in industries like woodworking, cement, mining, pharmaceuticals, and metal fabrication, where extracting dust and fumes is essential for safety and compliance.
Here is a comprehensive breakdown of what makes a dust collector fan "high efficiency" and "energy saving," along with key specifications and considerations.

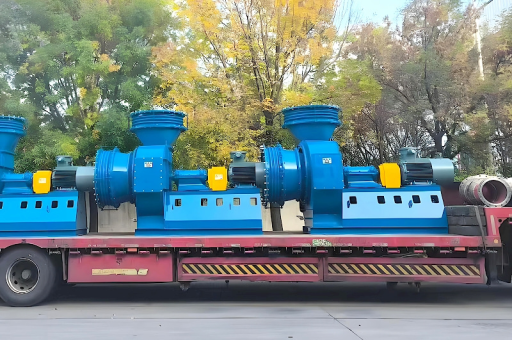

The Core Concept: Centrifugal Blower for Dust Collection
A centrifugal blower (or fan) works by using a rotating impeller to increase the velocity and pressure of air (or air-dust mixture). For dust collection, it must handle abrasive particles, high static pressure (to overcome ductwork resistance), and variable air volumes.
Key Features of an Energy-Saving, High-Efficiency Model
When searching for or specifying a fan, look for these features:
High-Efficiency Impeller Design
- Backward-Curved / Backward-Inclined Blades: This is the most energy-efficient design for dust collection. Unlike forward-curved (squirrel cage) fans, backward-curved blades are non-overloading. This means the motor won't burn out if the duct becomes blocked. They also have the highest static efficiency (often 80-85%).
- Airfoil Blades: The most efficient type of backward-curved blade. They are shaped like an airplane wing, minimizing turbulence and noise. They are more expensive but offer the best energy savings.
Heavy-Duty Construction (for Longevity)
- Material: High-quality steel (e.g., Corten or AR400 for abrasive dust) or stainless steel for corrosive environments.
- Wheel Design: Reinforced, welded impellers with thick blades to resist erosion from particulate impact.
- Housing: Robust, continuously welded scroll housing to prevent air leakage.
Motor & Drive System Efficiency
- IE4 / IE5 Premium Efficiency Motors (NEMA Premium): The motor is the heart of the system. Upgrading from a standard IE2 (Standard Efficiency) motor to an IE4 (Super Premium) motor can reduce energy losses by 20-30%.
- VFD (Variable Frequency Drive) Ready: A VFD is the single most impactful energy-saving device for a dust collector fan. It allows the fan to modulate its speed based on system demand (e.g., when only 50% of machines are running). A 10% reduction in speed results in a 27% reduction in power consumption (Affinity Laws).
Design & Control Features
- CAD Optimized Inlet & Outlet: Smooth air entry and exit reduce turbulence and pressure loss, improving efficiency.
- Direct Drive (vs. Belt Drive): Direct drive eliminates belt friction losses and maintenance (higher initial cost). Belt drive allows for speed changes easily.
- Intelligent Control Systems: Sensors and controllers that monitor pressure, temperature, and vibration to optimize fan speed and trigger cleaning cycles for baghouses or cartridge filters.
Common "High Efficiency" Product Types & Names
You'll find these terms frequently when searching:
- Radial Bladed Fans: Good for sticky or high-concentration dust. Lower efficiency but very robust.
- High Static Pressure Fans: Designed for long duct runs and high pressure drop across filters.
- Plug Fans: A motorized impeller that mounts directly in a plenum or filter housing, eliminating the scroll housing. Extremely compact and efficient.
- Industrial Exhausters: General term for heavy-duty fans.
Energy Savings Comparison (Example)
| Fan Type | Typical Static Efficiency | Annual Energy Cost (100 HP, Continuous) | Savings vs. Old Fan |
|---|---|---|---|
| Old Forward-Curved Fan | 50-60% | ~$65,000 | Baseline |
| Standard Backward-Inclined Fan | 70-75% | ~$55,000 | ~$10,000 / year |
| High-Efficiency Airfoil Fan | 82-85% | ~$48,000 | ~$17,000 / year |
| Airfoil Fan + VFD (50% load) | 80%+ (at reduced speed) | ~$14,000 | ~$51,000 / year |
Estimate based on $0.10/kWh electricity cost.
How to Specify / Buy: Key Parameters
When contacting a supplier (e.g., Greenheck, New York Blower, Cincinnati Fan, Twin City Fan, Chicago Blower, or Chinese/Indian brands like Yilida, Suntech, AirPro), you must provide:
- Air Volume (CFM or m³/hr): How much air you need to move.
- Static Pressure (in. wg or Pa): The resistance of the system (ductwork, filters, hoods).
- Dust Type: Is it fine (cement), heavy (wood chips), or sticky (paint overspray)?
- Temperature: Is it ambient or hot?
- Altitude: Affects air density and motor power.
Final Recommendation (What to Look For)
Your ideal, energy-saving system would be:
A heavy-duty, backward-inclined (or airfoil) centrifugal fan, driven by an IE4/IE5 premium efficiency motor, controlled by a Variable Frequency Drive (VFD) linked to a system pressure sensor.
