Heavy-Duty Industrial Dust Removal System with Durable Centrifugal Blower

This article's table of contents introduction:

1. System Overview
2. Key Component Specifications
3. Performance & Dimensional Parameters (Typical SIZES)
4. Critical Design Considerations for Durability
5. Application Examples
6. Control & Automation (Optional)
7. Conclusion

This is a technical product concept and system design brief for a Heavy-Duty Industrial Dust Removal System utilizing a Durable Centrifugal Blower. This system is designed for continuous operation in harsh environments like foundries, cement plants, woodworking mills, and metal fabrication shops.

Below is a breakdown of the system architecture, key components, material specifications, and performance characteristics.

System Overview

The system is a negative pressure, dry mechanical dust collector. It uses a high-pressure centrifugal blower to pull particulate-laden air from capture points (hoods, ductwork), separate the dust from the airstream using inertial/cyclonic action and filtration, and exhaust clean air.

Core Principle: The durable centrifugal blower provides the high static pressure (SP) and airflow (CFM) needed to overcome pressure drops across long duct runs, cyclone separators, and bag/cartridge filters.

Key Component Specifications

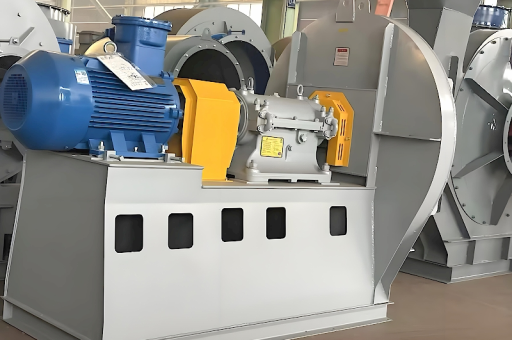

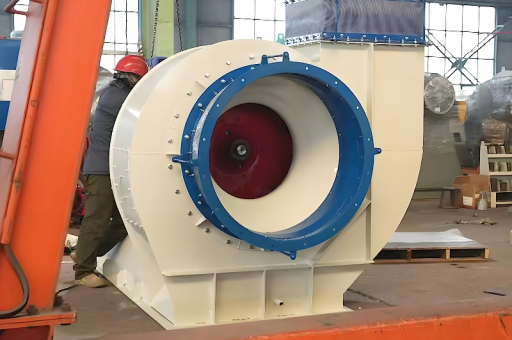

A. Durable Centrifugal Blower (The Heart of the System)

• Type: Heavy-duty Industrial Centrifugal Fan (Backward-Inclined or Airfoil blades recommended for efficiency).
• Construction:
  • Housing: 10-14 gauge carbon steel or abrasion-resistant AR400 steel. Welded, continuous seam. Reinforced to prevent vibration.
  • Wheel (Impeller): Heavy-gauge steel, dynamically balanced to ISO 1940 G6.3 or better.
  • Shaft: High-strength alloy steel (e.g., 4140 or 1045) with a keyed taper lock system.
  • Bearings: Heavy-duty pillow block bearings with grease fittings, rated for L10 life > 100,000 hours (e.g., SKF, Timken). Cut-off housing to isolate bearings from dust.
• Drive: V-belt drive (for shock load absorption) or direct drive (for clean applications). High-efficiency motors (IE3/IE4 or NEMA Premium).
• Key Features:
  • Anti-spark ring: (For combustible dust).
  • Access door: For impeller inspection.
  • Shaft seal: Carbon ring or labyrinth seal to prevent dust leakage.

B. Primary Collector (Pre-Separator) – Optional but recommended

• Type: High-efficiency Cyclone.
• Function: Removes 90-95% of bulk, heavy particles (e.g., chips, metal filings) before they reach the filters. This dramatically extends filter life.
• Construction: Abrasion-resistant steel, tangential inlet, cone with abrasion-resistant liner.

C. Secondary Filtration (Fine Dust)

• Type: Pulse-Jet Baghouse OR Cartridge Collector.
  • Baghouse: For very high temperature or heavy, abrasive dust (e.g., cement, sand). High-temp felt (Nomex, Ryton) on a rigid cage.
  • Cartridge: For higher filtration efficiency (MERV 15-16) and smaller footprint (wood dust, welding fume). Pleated nanofiber media.
• Cleaning Mechanism: Compressed air pulse (90-100 PSI) via a diaphragm valve and venturi. Heavy-duty solenoids.
• Housing: 10-14 gauge steel. Hinged or bolted access doors with cam locks.

D. Collection Hopper

• Shape: 60-degree slope on all sides to prevent bridging.
• Discharge: Heavy-duty rotary airlock (star valve) to continuously discharge dust without air leakage. Reinforced blade seals.

E. Ductwork & Hoods

• Gauge: Heavy gauge (12-14 ga) spiral or welded duct.
• Blast Gates: Heavy-duty, slide-gate valves at each machine take-off point.
• Angle: Branch lines at 30-45 degrees to prevent clogging.

Performance & Dimensional Parameters (Typical SIZES)

Critical Design Considerations for Durability

1. Abrasion Protection:

   • Weld-on or bolt-on wear plates at the fan inlet and cyclone wall (where impingement occurs).
   • Use of hardened steel or ceramic liners in high-wear zones.

2. Vibration Monitoring:

   Provide 4-20mA vibration sensor ports on the blower bearing housing to connect to a PLC or alarm system. The blower must be mounted on a heavy-duty inertia base with vibration isolators.

3. Explosion Protection:

   • If handling combustible dust (wood, grain, metal), install:
     • Explosion vent panels (NFPA 68 compliant) on the filter and cyclone.
     • Passive isolation valves (e.g., knife-gate, flap valve) in the ductwork.
     • Chemical suppression (optional, for indoor systems).

4. Corrosion Resistance:

   • For chemical or wet dust: SS304/316L construction.
   • For general dry dust: Heavy-gauge carbon steel with a high-grade industrial epoxy or powder coating (e.g., two-part polyurethane).

5. Access for Maintenance:

   • Fan: Hinged or swing-away housing for impeller access.
   • Filters: Walk-in plenum for bag change (large units). Top-access for cartridge.
   • Duct: Clean-outs (hand holes) at every 20-25 feet and every 45-degree transition.

Application Examples

Control & Automation (Optional)

• VFD (Variable Frequency Drive): On the blower motor for energy savings and fine-tuning CFM.
• PLC with HMI Touchscreen: Control filter cleaning sequence (on-demand or continuous), monitor temp, pressure drop (delta P), and vibration.
• Delta P Sensors: Automatically trigger pulse-jet cleaning at a set pressure drop (e.g., 4" w.g.) and stop cleaning at a lower set point (e.g., 1.5" w.g.).

Conclusion

A Heavy-Duty Industrial Dust Removal System relies on the durable centrifugal blower as its core. For long-term reliability in heavy industry, focus on:

• Blower: Abrasion-resistant wheel, heavy-gauge housing, quality bearings.
• Filters: Proper pre-separation (cyclone) + robust cleaning mechanism.
• Construction: Thick steel, corrosion protection, explosion safety.
• Maintenance Access: Designed in from the start.

Would you like a CAD block diagram or a bill of materials (BOM) for a specific size (e.g., 10,000 CFM system)?
